Shimano BM-E8030 Battery Mount

BM-E8030 Battery Mount BM Akkuhalterung (E-Bike)

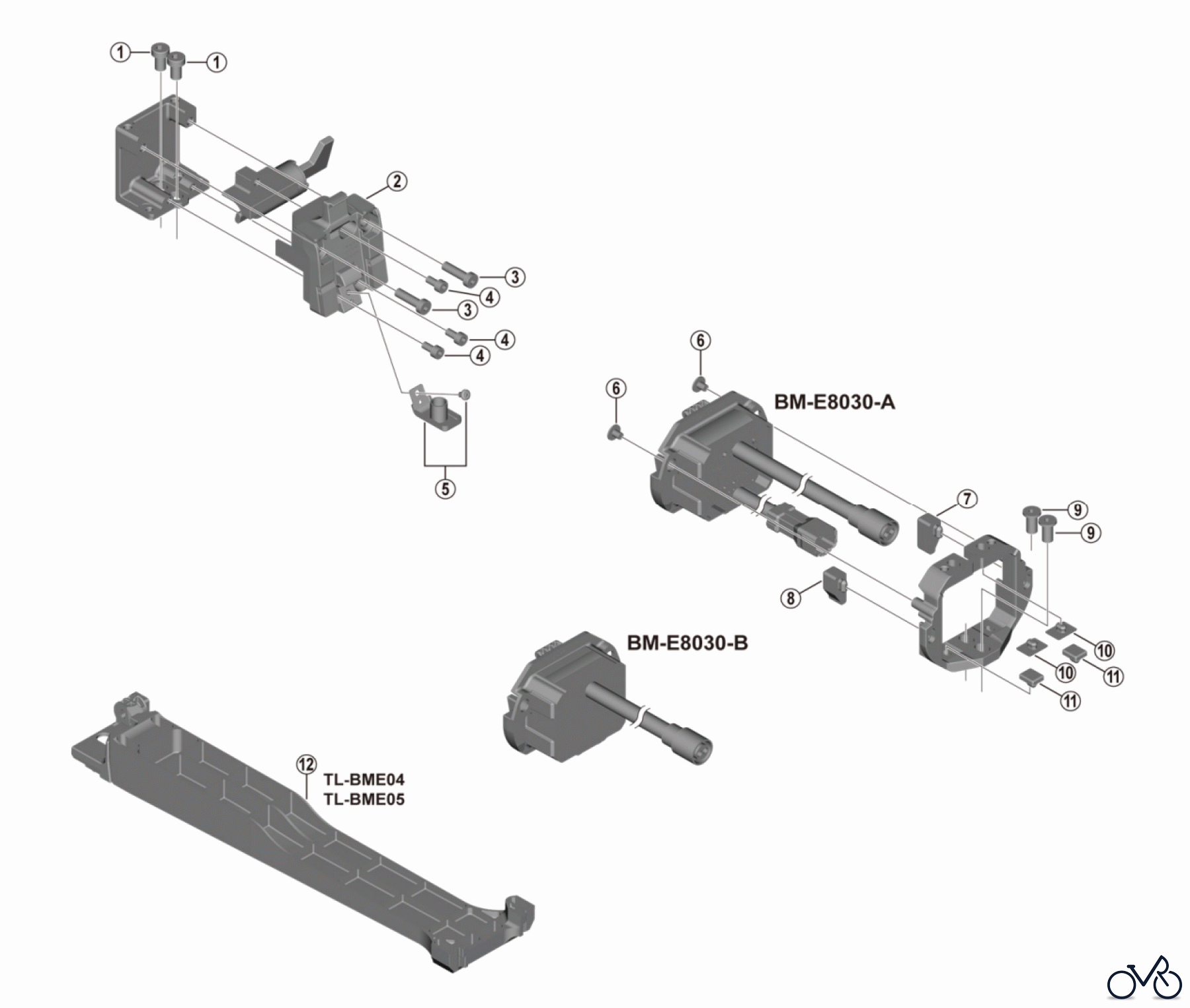

Here you will find the spare parts drawing for Shimano BM Akkuhalterung (E-Bike) BM-E8030 Battery Mount. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Bankeinzug, MasterCard, Visa, American Express, PayPal, Nachnahme, Vorauskasse, Sofortüberweisung

Report Error

Help us to improve this site. Notify us if something is wrong here.

Pos	Article Number	Description
1	Y-7GS00090	Bracket Fixing Screw (M6 x 10) Y7GS00090
2	Y-7GS98010	Upper Mount Unit Y7GS98010
3	Y-7GS00100	Upper Base Fixing Screw A (M5 x 18) Y7GS00100
4	Y-7GS00110	Upper Base Fixing Screw B (M4 x 8) Y7GS00110
5	Y-7GS98020	Spring Unit & Fixing Screw (M3 x 4) Y7GS98020
6	Y-7GS00230	Stopper Screw (M4 x 5) Y7GS00230
7	Y-7GS00200	Lower Mount Rubber L Y7GS00200
8	Y-7GS00190	Lower Mount Rubber R Y7GS00190
9	Y-7GS00350	Lower Bracket Fixing Screw (M6 x 12) Y7GS00350
10	Y-7GS00220	Lower Bracket Rubber B Y7GS00220
11	Y-7GS00210	Lower Bracket Rubber A Y7GS00210
12	Y-13000050	TL-BME04 Battery Mount Setting Tool Y13000050
12	Y-13000070	TL-BME05 Battery Mount Setting Tool Y13000070
