Shimano FD-R7150 105

FD-R7150 Shimano 105 FD Front Derailleur - Umwerfer

Shimano FD Front Derailleur - Umwerfer FD-R7150 Shimano 105

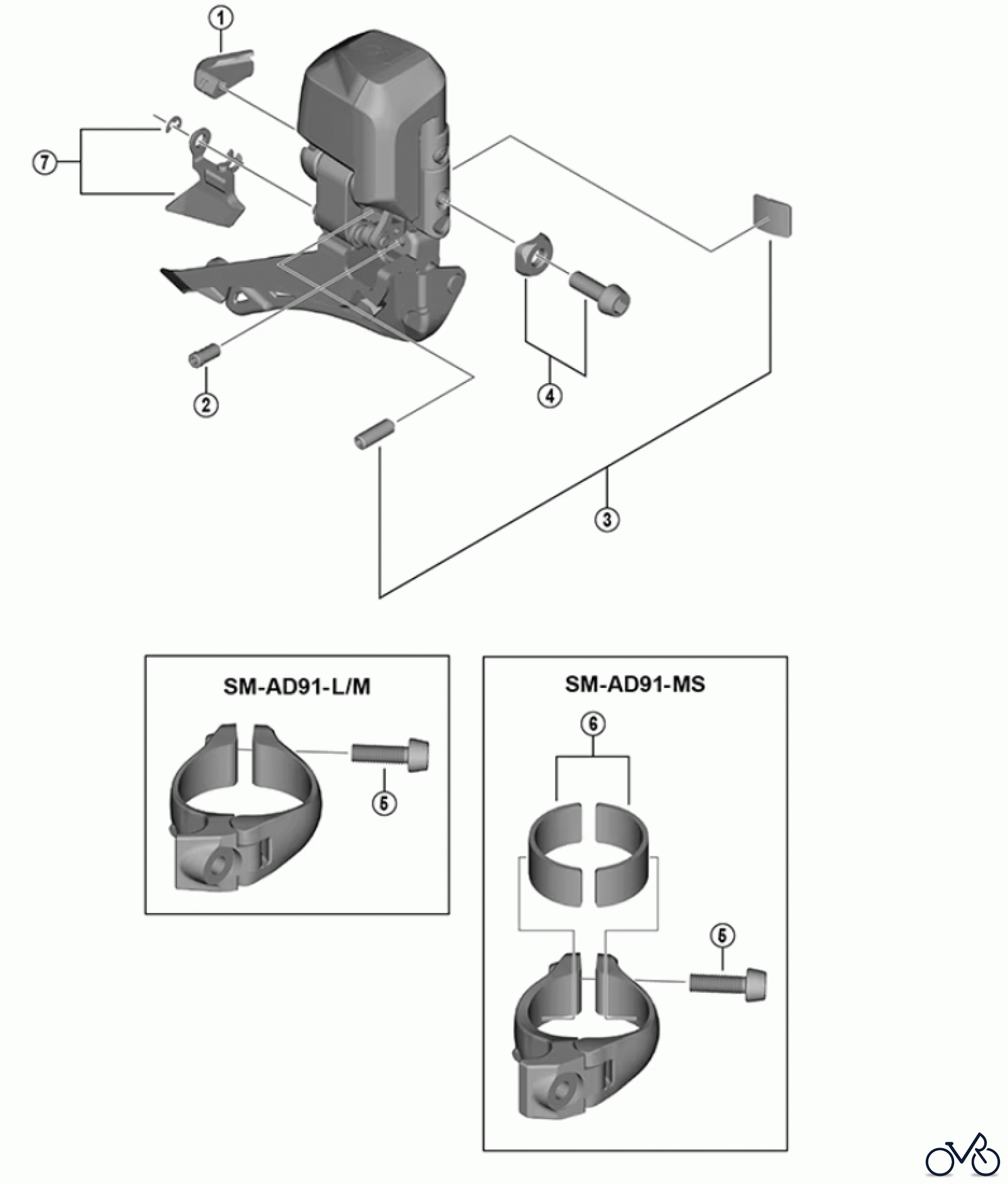

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-R7150 Shimano 105. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-2K69801TPlug Cover Y2K69801T
2 Shimano Adjust screwY-5P6001D0Adjust screw Y5P6001D0
3 Y-5ZW98010Support screw and plate Y5ZW98010
4 Shimano Clamp screw and radius washerY-2C198010Clamp screw and radius washer Y2C198010
5 Y-5ZS39000Clamp screw (M5 x 17) Y5ZS39000
6 Y-5P198030Clamp band adapter unit for S-size (Diameter 28.6 mm) Y5P198030
7 Y-2K698010Outer skid plate and E-ring Y2K698010
