Shimano GRX Rear Derailleur (11-speed) RD-RX810 RD-RX810-LE

GRX Rear Derailleur (11-speed) RD-RX810 RD-RX810-LE RD Rear Derailleur - Schaltwerk

Shimano RD Rear Derailleur - Schaltwerk GRX Rear Derailleur (11-speed) RD-RX810 RD-RX810-LE

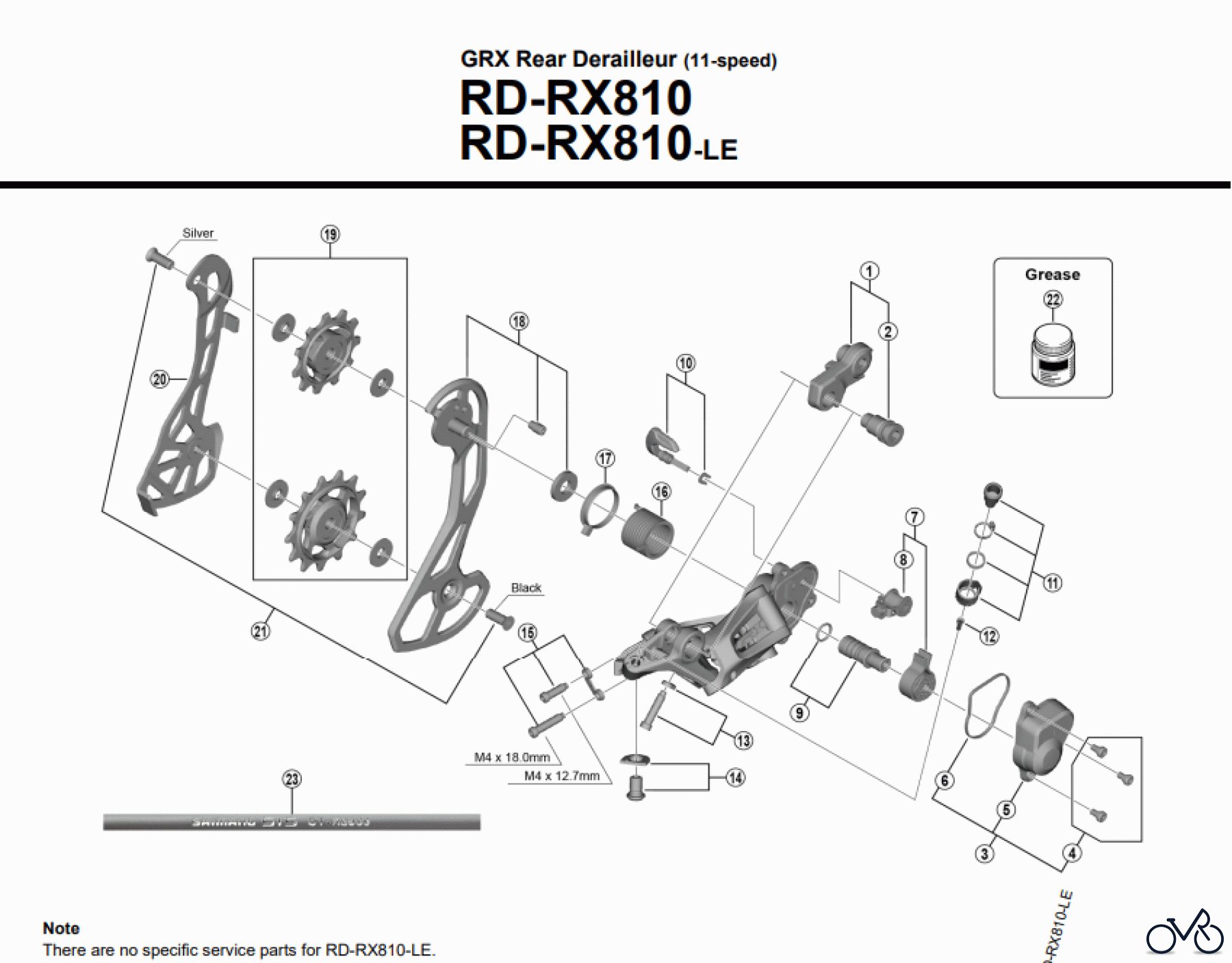

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk GRX Rear Derailleur (11-speed) RD-RX810 RD-RX810-LE. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-3E998020 Bracket axle unit (for normal type) A Y3E998020
2 Shimano B-axle 2 (for direct mount type) A Y-3E958000 B-axle 2 (for direct mount type) A Y3E958000
3 Y-3GE98020 P-cover unit A Y3GE98020
4 Shimano P-cover screw set (3 pcs.) A Y-5Y198070 P-cover screw set (3 pcs.) A Y5Y198070
5 Y-3GE41000 P-cover A Y3GE41000
6 Y-3FK41000 P-cover packing A Y3FK41000
7 Shimano Stabilizer unit A Y-3GE98060 Stabilizer unit A Y3GE98060
8 Shimano Cam unit A Y-5Y198120 Cam unit A Y5Y198120
9 Shimano P-axle and O-ring A Y-5PV98060 P-axle and O-ring A Y5PV98060
10 Y-3GE98030 Switch lever unit and fixing plate A Y3GE98030
11 Shimano Cable adjustment barrel unit A Y-3E998030 Cable adjustment barrel unit A Y3E998030
12 Shimano Cover with tongue A Y-5PV48000 Cover with tongue A Y5PV48000
13 Y-3E998040 End adjusting screw (M4 x 18) and plate A Y3E998040
14 Shimano Cable fixing screw and plate A Y-3E998050 Cable fixing screw and plate A Y3E998050
15 Y-3E998060 Stroke adjusting screws and plate A Y3E998060
16 Shimano P-tension spring A Y-5PV17000 P-tension spring A Y5PV17000
17 Shimano P-seal ring A Y-5PV24000 P-seal ring A Y5PV24000
18 Y-3GE98040 Outer plate assembly B Y3GE98040
19 Y-3GE98010 Tension and guide pulley set A Y3GE98010
20 Shimano Inner plate B Y-3GE06000 Inner plate B Y3GE06000
21 Y-3GE98050 Tension pulley screw (M5 x 12.45/black) and guide pulley screw (M5 x 12.45/silver) A Y3GE98050
22 Y-04121000 New grease for stabilizer (Net. 50 g Y04121000
23 Y-0BM98011OT-RS900 (black) 240 mm x 10 pcs. (with sealed outer cap and outer cap with long tongue) Y0BM98011
23 Y-0BM98021OT-RS900 (white) 240 mm x 10 pcs. (with sealed outer cap and outer cap with long tongue) Y0BM98021
23 Y-0BM98031OT-RS900 (red) 240 mm x 10 pcs.(with sealed outer cap and outer cap with long tongue) Y0BM98031
23 Y-0BM98041OT-RS900 (high-tech gray) 240 mm x 10 pcs. (with sealed outer cap and outer cap with long tongue) Y0BM98041
