Shimano BL-RX810-L-LE

BL-RX810-L-LE BL Brake Lever - Bremshebel

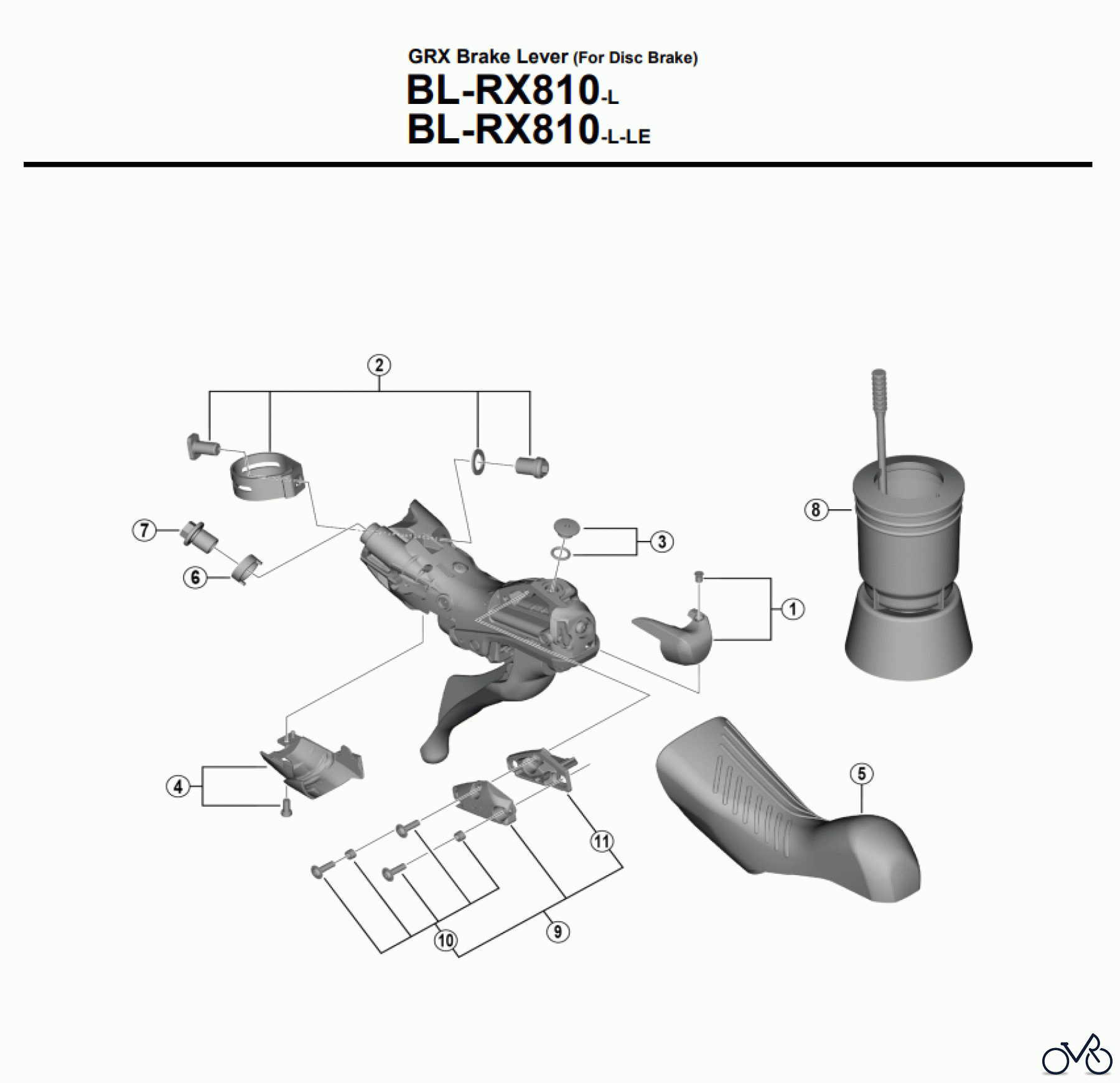

Here you will find the spare parts drawing for Shimano BL Brake Lever - Bremshebel BL-RX810-L-LE. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0E198010	Left hand name plate L and fixing screw A Y0E198010
2	Y-0E098030	Clamp band unit diameter (23.8 - 24.2 mm) A Y0E098030
3	Y-0C698030	Bleed screw and O-ring A Y0C698030
4	Y-0C598020	Left hand unit cover L and fixing screw A Y0C598020
5	Y-0JK98010	Bracket covers (pair) A Y0JK98010
6	Y-0C514000	Joint support ring A Y0C514000
7	Y-8RD02000	Flange flare nut (M9/black) A Y8RD02000
8	Y-13000090	Y13000090 TL-BR002 Funnel unit for M7 screw A Y13000090
9	Y-0C598030	Left hand lid unit A Y0C598030
10	Y-0C698070	Lid fixing screw (3 pcs.) and lid spacer (2 pcs.) A Y0C698070
11	Y-0C578000	Diaphragm L Y0C578000
