Shimano DH-T675 DEORE LX Hub Dynamo

DH-T675 DEORE LX Hub Dynamo DH Dynamo Hub - Nabendynamo

6V - 3W / Disc Brake Compatible
Shimano DH Dynamo Hub - Nabendynamo DH-T675 DEORE LX Hub Dynamo

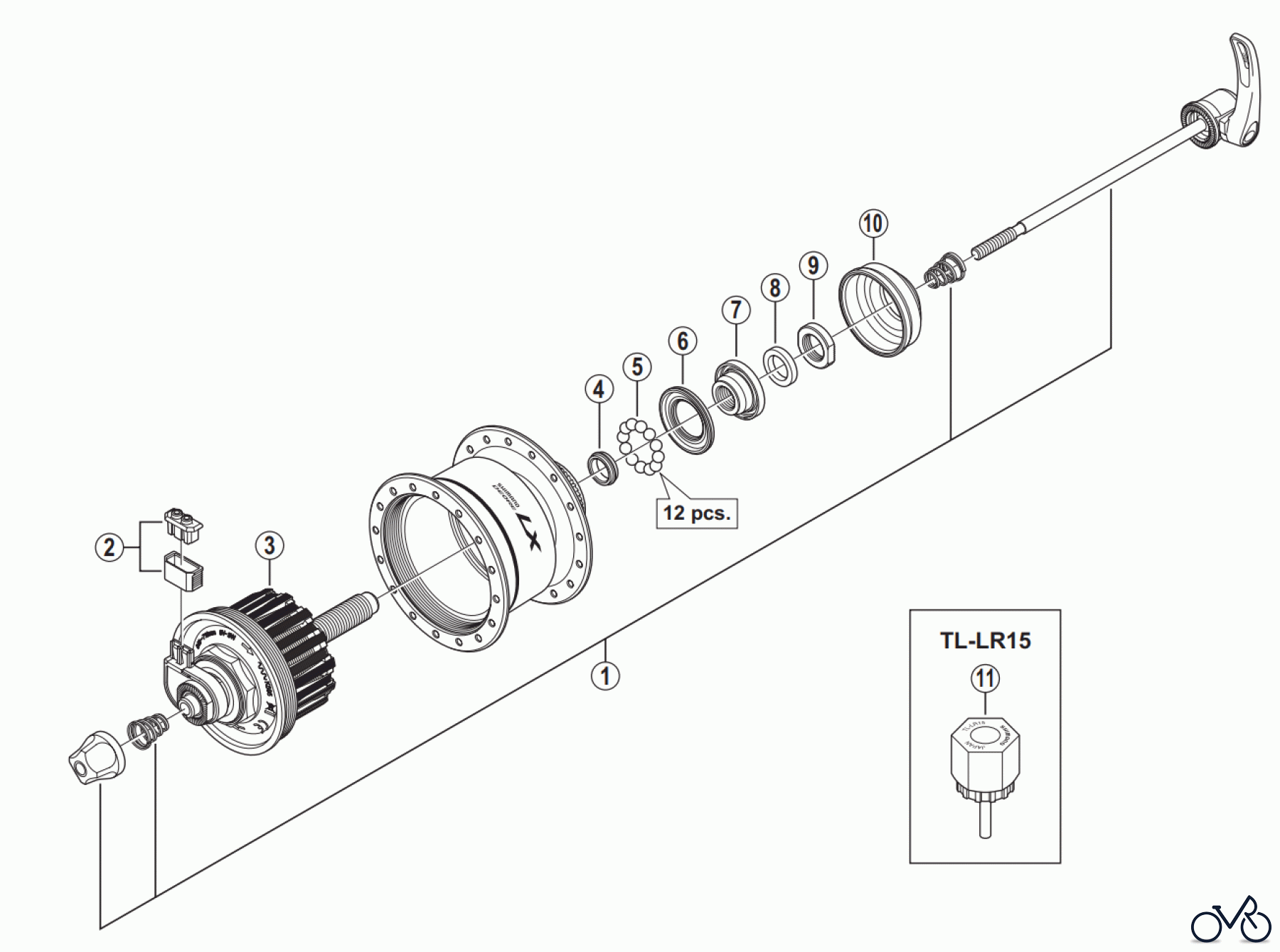

Here you will find the spare parts drawing for Shimano DH Dynamo Hub - Nabendynamo DH-T675 DEORE LX Hub Dynamo. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-2XY98010 Complete Quick Release 133 mm (5-1/4") Silver Y2XY98010
1 Y-4D298060 Complete Quick Release 133 mm (5-1/4") Black Y4D298060
2 Shimano Connector Cap & Cover Y-2SS98030 Connector Cap & Cover Y2SS98030
3 Y-2Y098010 Internal Assembly (Axle Length 108 mm) Y2Y098010
4 Shimano Grease Guard Y-2ZW20000 Grease Guard Y2ZW20000
5 Shimano Steel Ball (3/16") 20 pcs. Y-00091210 Steel Ball (3/16") 20 pcs. Y00091210
6 Shimano Seal Ring Y-2YX11000 Seal Ring Y2YX11000
7 Shimano Cone (M11 x 12.1 mm) w/Dust Cover Y-2YW98020 Cone (M11 x 12.1 mm) w/Dust Cover Y2YW98020
8 Y-2SX21000Left Hand Spacer (2.5 mm) Y2SX21000
8 Y-20R02100Left Hand Spacer (3 mm) Y20R02100
9 Shimano Serated Lock Nut (M11 x 4 mm) Y-3BT04200 Serated Lock Nut (M11 x 4 mm) Y3BT04200
10 Y-24Z02000 Rotor Mount Cover Y24Z02000
11 Shimano Lock Ring Removal Tool (TL-LR15)Y-12009230 Lock Ring Removal Tool (TL-LR15) Y12009230
