Shimano WH-R9270-C36-TL-F-4826A Dura Ace

WH-R9270-C36-TL-F-4826A Dura Ace WH Wheels - Laufräder

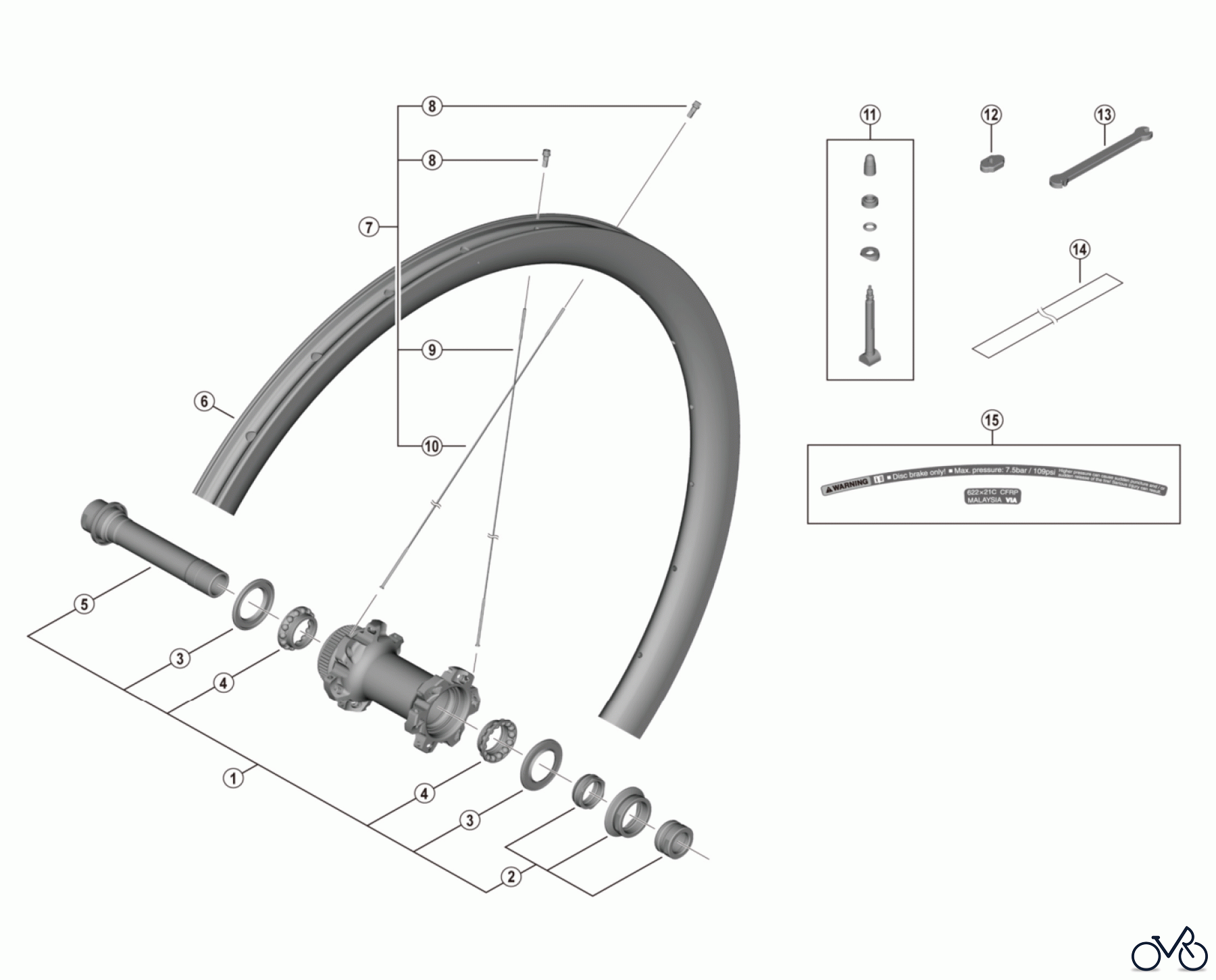

Here you will find the spare parts drawing for Shimano WH Wheels - Laufräder WH-R9270-C36-TL-F-4826A Dura Ace. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Bankeinzug, MasterCard, Visa, American Express, PayPal, Nachnahme, Vorauskasse, Sofortüberweisung

Report Error

Help us to improve this site. Notify us if something is wrong here.

Pos	Article Number	Description
1	Y-0MK98010	Complete hub axle Y0MK98010
2	Y-0MK98020	Right hand lock nut unit Y0MK98020
3	Y-0MK09000	Seal ring Y0MK09000
4	Y-0AY98030	Ball retainer (5/32") Y0AY98030
5	Y-0MK98030	Hub axle unit Y0MK98030
6	E-WHRIMZ2F6C	Rim {24H} EWHRIMZ2F6C
7	E-WHSPOKEY274W	Spoke unit {spoke (282 mm x 12 pcs. / 280.5 mm x 12 pcs.) / nipple (24 pcs.)} EWHSPOKEY274W
8	Y-0MKN1000	Small nipple 14G Y0MKN1000
9	Y-0MSS1100	Right hand spoke (282 mm) Y0MSS1100
10	Y-0MNS1000	Left hand spoke (280.5 mm) Y0MNS1000
11	Y-0P098010	Valve unit Y0P098010
12	Y-4RJ10000	Valve tool Y4RJ10000
13	Y-0MK14000	TL-WHR92 Nipple wrench 3.4 Y0MK14000
14	Y-0MG50000	Tubeless tape Y0MG50000
15	Y-0MG98020	Rim sticker unit Y0MG98020
