Shimano CS-R8100 ULTEGRA Kassettenzahnkranz

CS-R8100 ULTEGRA Kassettenzahnkranz CS Cassette / Zahnkranz

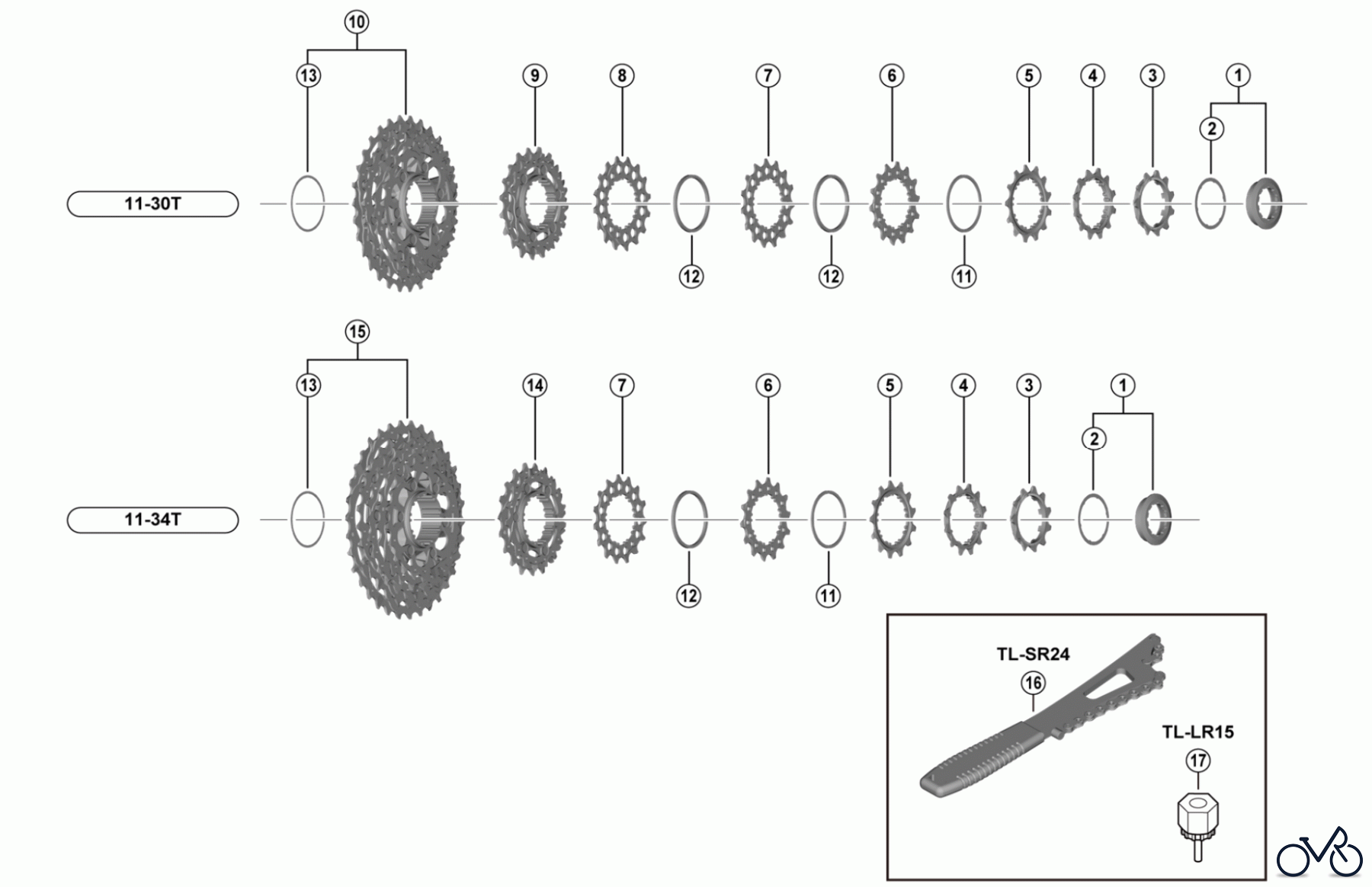

Here you will find the spare parts drawing for Shimano CS Cassette / Zahnkranz CS-R8100 ULTEGRA Kassettenzahnkranz. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0NR98010	Lock ring and washer Y0NR98010
2	Y-10Z04000	Lock ring washer Y10Z04000
3	Y-0MV11000	Sprocket wheel 11T C (built in spacer type) Y0MV11000
4	Y-0MV12000	Sprocket wheel 12T E (built in spacer type) Y0MV12000
5	Y-0MV13000	Sprocket wheel 13T D (built in spacer type) Y0MV13000
6	Y-0NR14000	Sprocket wheel 14T D Y0NR14000
7	Y-0NR15000	Sprocket wheel 15T D Y0NR15000
8	Y-0MV16100	Sprocket wheel 16T E Y0MV16100
9	Y-0NR98020	Sprocket unit (17-19T) for 11-30T Y0NR98020
10	Y-0NR98030	Sprocket unit (21-24-27-30T) for 11-30T Y0NR98030
11	Y-0MV40020	Spacer A Y0MV40020
12	Y-0NR00200	Spacer B Y0NR00200
13	Y-0MV01000	Adhesive ring Y0MV01000
14	Y-0NR98040	Sprocket unit (17-19T) for 11-34T Y0NR98040
15	Y-0NR98050	Sprocket unit (21-24-27-30-34T) for 11-34T Y0NR98050
16	Y-13098730	TL-SR24 Sprocket remover Y13098730
17	Y-12009230	TL-LR15 Lock ring removal tool Y12009230
