Shimano CS-R9200 DURA ACE

CS-R9200 DURA ACE CS Cassette / Zahnkranz

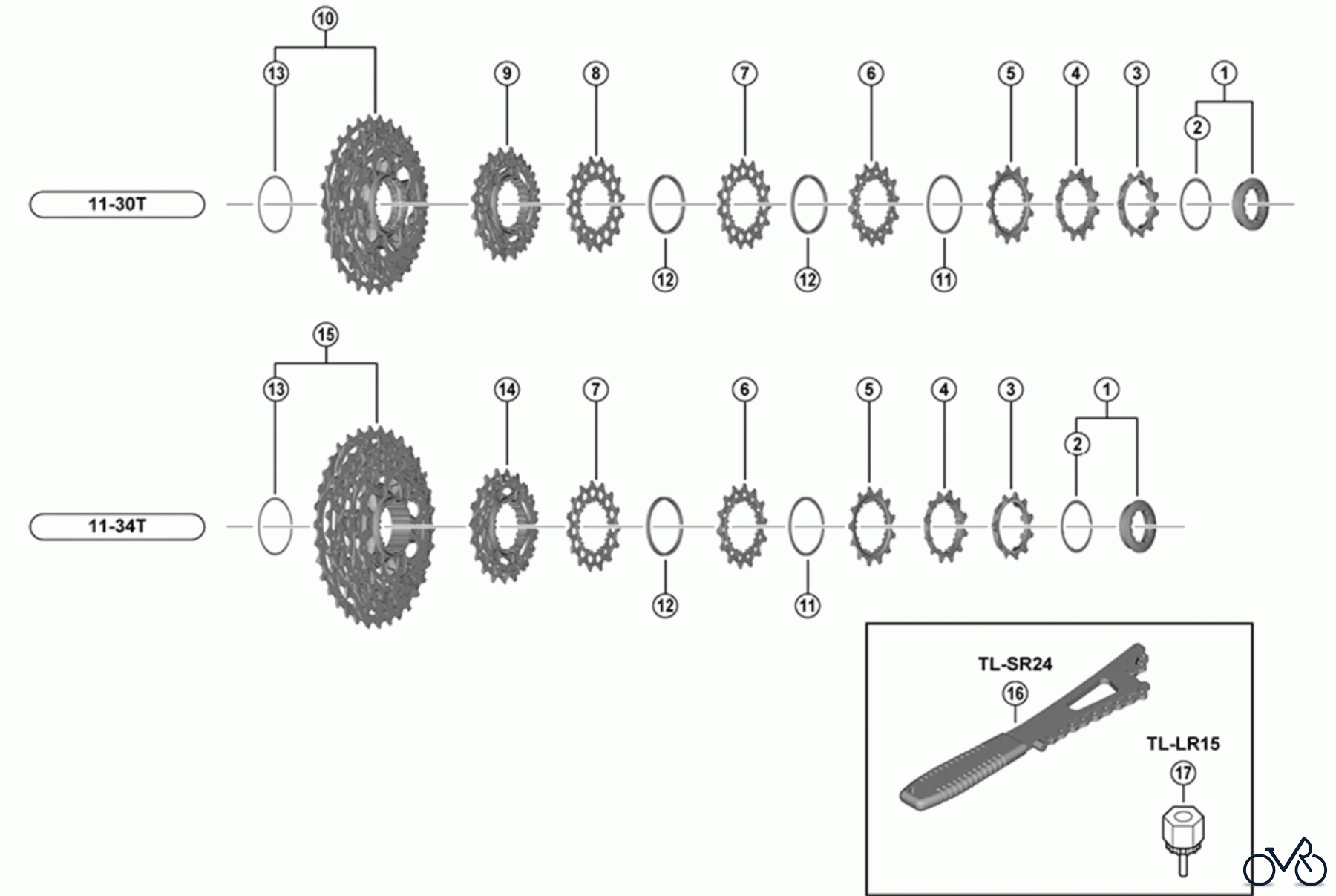

Here you will find the spare parts drawing for Shimano CS Cassette / Zahnkranz CS-R9200 DURA ACE. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0MV98010	Lock ring and washer Y0MV98010
2	Y-10Z04000	Lock ring washer Y10Z04000
3	Y-0MV11000	Sprocket wheel 11T C (built in spacer type) Y0MV11000
4	Y-0MV12000	Sprocket wheel 12T E (built in spacer type) Y0MV12000
5	Y-0MV13000	Sprocket wheel 13T D (built in spacer type) Y0MV13000
6	Y-0MV14000	Sprocket wheel 14T D Y0MV14000
7	Y-0MV15000	Sprocket wheel 15T D Y0MV15000
8	Y-0MV16100	Sprocket wheel 16T E Y0MV16100
9	Y-0MV98020	Sprocket unit (17-19T) for 11-30T Y0MV98020
10	Y-0MV98030	Sprocket unit (21-24-27-30T) for 11-30T Y0MV98030
11	Y-0MV40020	Spacer A Y0MV40020
12	Y-0MV40021	Spacer B Y0MV40021
13	Y-0MV01000	Adhesive ring Y0MV01000
14	Y-0MV98040	Sprocket unit (17-19T) for 11-34T Y0MV98040
15	Y-0MV98050	Sprocket unit (21-24-27-30-34T) for 11-34T Y0MV98050
16	Y-13098730	TL-SR24 Sprocket remover Y13098730
17	Y-12009230	TL-LR15 Lock ring removal tool Y12009230
