Shimano FC-R9200 (-4809) DURA-ACE Kurbelgarnitur

FC-R9200 (-4809) DURA-ACE Kurbelgarnitur FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-R9200 (-4809) DURA-ACE Kurbelgarnitur

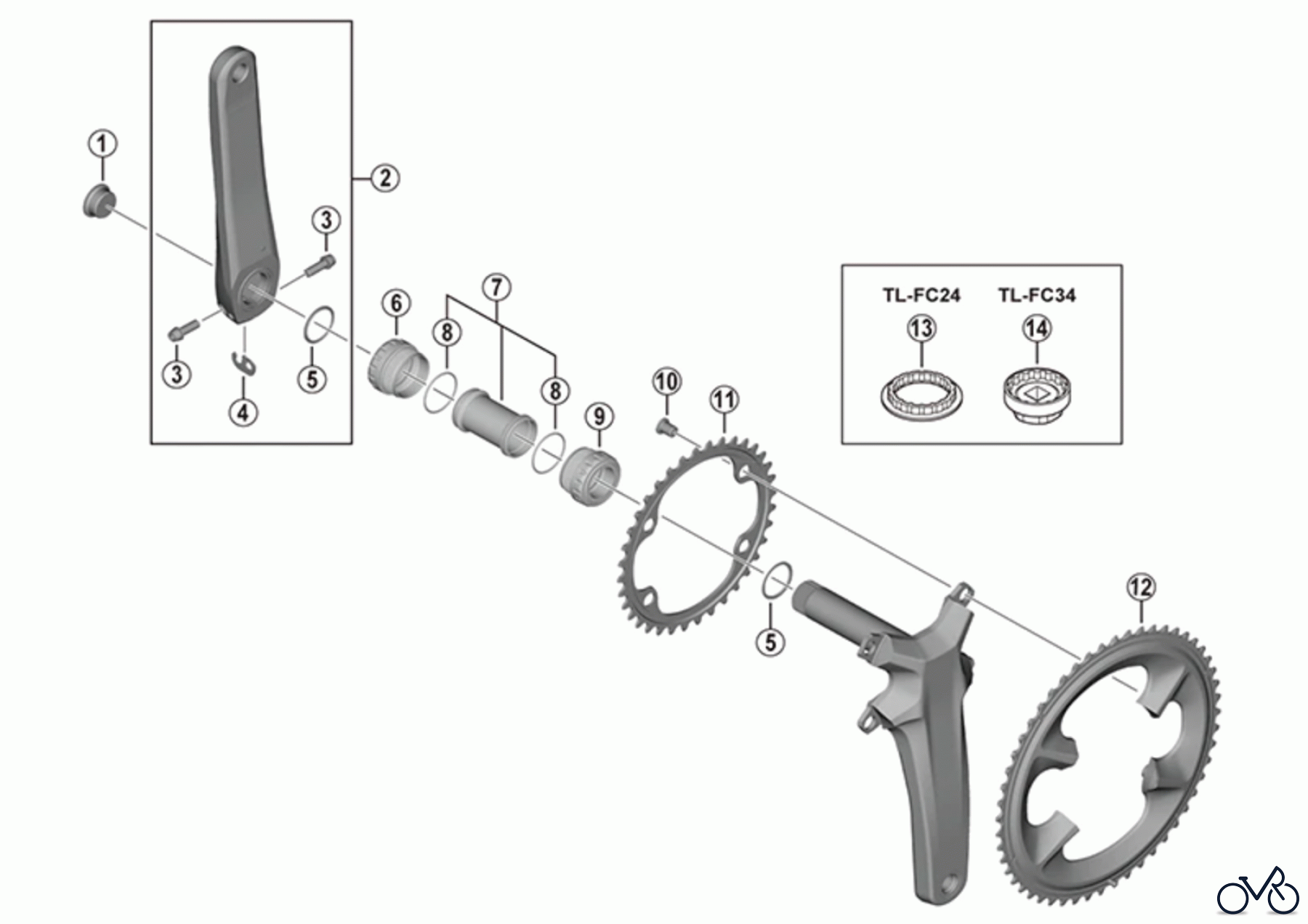

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-R9200 (-4809) DURA-ACE Kurbelgarnitur. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1KY08000	Crank arm fixing screw Y1KY08000
2	Y-0MZ98040	Left hand crank arm unit 160 mm Y0MZ98040
2	Y-0MZ98050	Left hand crank arm unit 165 mm Y0MZ98050
2	Y-0MZ98060	Left hand crank arm unit 167.5 mm Y0MZ98060
2	Y-0MZ98070	Left hand crank arm unit 170 mm Y0MZ98070
2	Y-0MZ98080	Left hand crank arm unit 172.5 mm Y0MZ98080
2	Y-0MZ98090	Left hand crank arm unit 175 mm Y0MZ98090
2	Y-0MZ98100	Left hand crank arm unit 177.5 mm Y0MZ98100
3	Y-1GS22100	Clamp screw (M6 x 19) with washer Y1GS22100
4	Y-1GE98050	Plate Y1GE98050
5	Y-0MZ14000	Ring Y0MZ14000
6	Y-1VR98010	Left hand cup (B.C.1.37" x 24T) english thread (BB-R9100) Y1VR98010
6	Y-1VR98020	Left hand cup (M36 x 24T) italian thread (BB-R9100) Y1VR98020
7	Y-1KY98130	Inner cover and O-ring Y1KY98130
8	Y-1TF21000	O-ring Y1TF21000
9	Y-1VR98030	Right hand cup (B.C.1.37" x 24T) english thread (BB-R9100) Y1VR98030
9	Y-1VR98040	Right hand cup (M36 x 24T) italian thread (BB-R9100) Y1VR98040
10	Y-1H598160	Gear fixing screw (M8 x 10.1 / 1 unit = 4 pcs.) Y1H598160
11	Y-0MZ34000	Chainring 34T-NK Y0MZ34000
11	Y-0MZ36000	Chainring 36T-NH Y0MZ36000
11	Y-0MZ40000	Chainring 40T-NJ Y0MZ40000
12	Y-0MZ98010	Chainring 50T-NK Y0MZ98010
12	Y-0MZ98020	Chainring 52T-NH Y0MZ98020
12	Y-0MZ98030	Chainring 54T-NJ Y0MZ98030
13	Y-13009240	TL-FC24 Bottom bracket cup tool Y13009240
14	Y-13009250	TL-FC34 Bottom Bracket Cup tool Y13009250
