Shimano BR-R9270 DURA-ACE

BR-R9270 DURA-ACE BR Brake - Bremse

Shimano BR Brake - Bremse BR-R9270 DURA-ACE

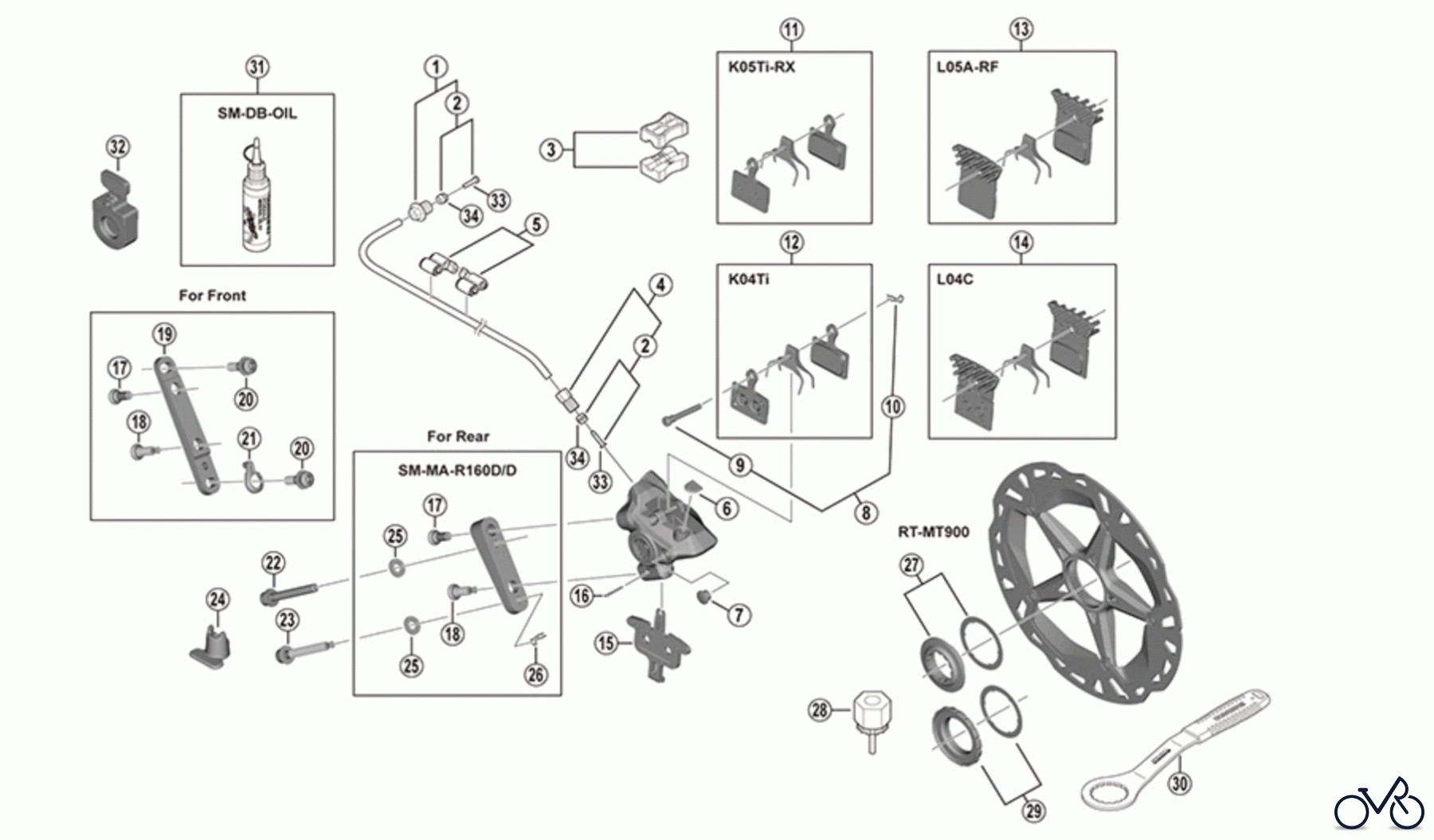

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-R9270 DURA-ACE. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Shimano Flange flare nut unit (M9/black) for ST-R9270 Y-8RD98010 Flange flare nut unit (M9/black) for ST-R9270 Y8RD98010
1 Y-8RD98020 Flare nut unit (M8/silver) for ST-R9180 Y8RD98020
2 Shimano Olive and connecter insert Y-8JA98020 Olive and connecter insert Y8JA98020
3 Shimano TL-BH61 Shimano original tool (2 pcs.) Y-8H198030 TL-BH61 Shimano original tool (2 pcs.) Y8H198030
4 Shimano Flare nut unit (M8/black) Y-8JA98010 Flare nut unit (M8/black) Y8JA98010
5 Y-83098040 SM-HANG Hose supporter A and B Y83098040
6 Shimano Bleed screw cap Y-2HW08000 Bleed screw cap Y2HW08000
7 Shimano Bleed boss cap Y-2HW10000 Bleed boss cap Y2HW10000
8 Y-8PU98030 Pad axle and snap retainer Y8PU98030
9 Shimano Pad axle Y-8LV08000 Pad axle Y8LV08000
10 Shimano Snap retainer Y-8J716000 Snap retainer Y8J716000
11 I-BPK05TIRXA K05Ti-RX Resin pad and spring (pair) IBPK05TIRXA
11 Y-8PU98050 K05Ti-RX Resin pad and spring (pair) Y8PU98050
12 I-BPK04TIMXA K04Ti Metal pad and spring (pair) IBPK04TIMXA
12 Y-8PU98020 K04Ti Metal pad and spring (pair) Y8PU98020
13 E-BPL05ARFA L05A-RF Resin pad with fin and spring (pair) EBPL05ARFA
13 Y-2EM98010 L05A-RF Resin pad with fin and spring (pair) Y2EM98010
13 E-BPL05ARFBS L05A-RF Resin pad with fin and spring (25 pairs) EBPL05ARFBS
13 Y-2EM98011 L05A-RF Resin pad with fin and spring (25 pairs) Y2EM98011
14 I-BPL04CMFA L04C Metal pad with fin and spring (pair) IBPL04CMFA
14 Y-8N398040 L04C Metal pad with fin and spring (pair) Y8N398040
15 Shimano Pad spacer Y-8N218000 Pad spacer Y8N218000
16 Shimano Screw fixing pin Y-8N207000 Screw fixing pin Y8N207000
17 Y-2HW06010 Caliper fixing screw B2 Y2HW06010
18 Shimano Caliper fixing screw B Y-8N206000 Caliper fixing screw B Y8N206000
19 Y-8N230000 Front caliper mount bracket Y8N230000
20 Shimano Caliper fixing screw A Y-8PU07000 Caliper fixing screw A Y8PU07000
21 Shimano Snap ring Y-8N205000 Snap ring Y8N205000
22 Y-2HW08010 Caliper fixing screw C2 for 20 mm rear mount thickness Y2HW08010
22 Y-2HW08020 Caliper fixing screw C2 for 25 mm rear mount thickness Y2HW08020
22 Y-2HW08030 Caliper fixing screw C2 for 30 mm rear mount thickness Y2HW08030
23 Y-8PU08010 Caliper fixing screw C for 20 mm rear mount thickness Y8PU08010
23 Y-8PU08020 Caliper fixing screw C for 25 mm rear mount thickness Y8PU08020
23 Y-8PU08030 Caliper fixing screw C for 30 mm rear mount thickness Y8PU08030
24 Y-2HW12000 Screw length selector Y2HW12000
25 Shimano Washer for R160 adapter Y-8NU02000 Washer for R160 adapter Y8NU02000
26 Shimano Snap retainer Y-8NU03000 Snap retainer Y8NU03000
27 Shimano Lock ring and washer Y-8K198010 Lock ring and washer Y8K198010
28 Shimano TL-LR15 Lock ring removal tool Y-12009230 TL-LR15 Lock ring removal tool Y12009230
29 Shimano Lock ring and washer (external spline type) Y-26L98030 Lock ring and washer (external spline type) Y26L98030
30 Shimano TL-FC36 Lock ring removal tool Y-13098000 TL-FC36 Lock ring removal tool Y13098000
31 Y-83998020 Mineral oil (100 ml) Y83998020
31 Y-83998030 Mineral oil (500 ml) Y83998030
32 Y-2HW15000 Bleeding spacer Y2HW15000
33 Y-8JA98026 Connecting insert (100 pcs.) Y8JA98026
34 Y-8H298047Olive (100 pcs.) Y8H298047
