Shimano BR-R9210-F DURA-ACE Bremse

BR-R9210-F DURA-ACE Bremse BR Brake - Bremse

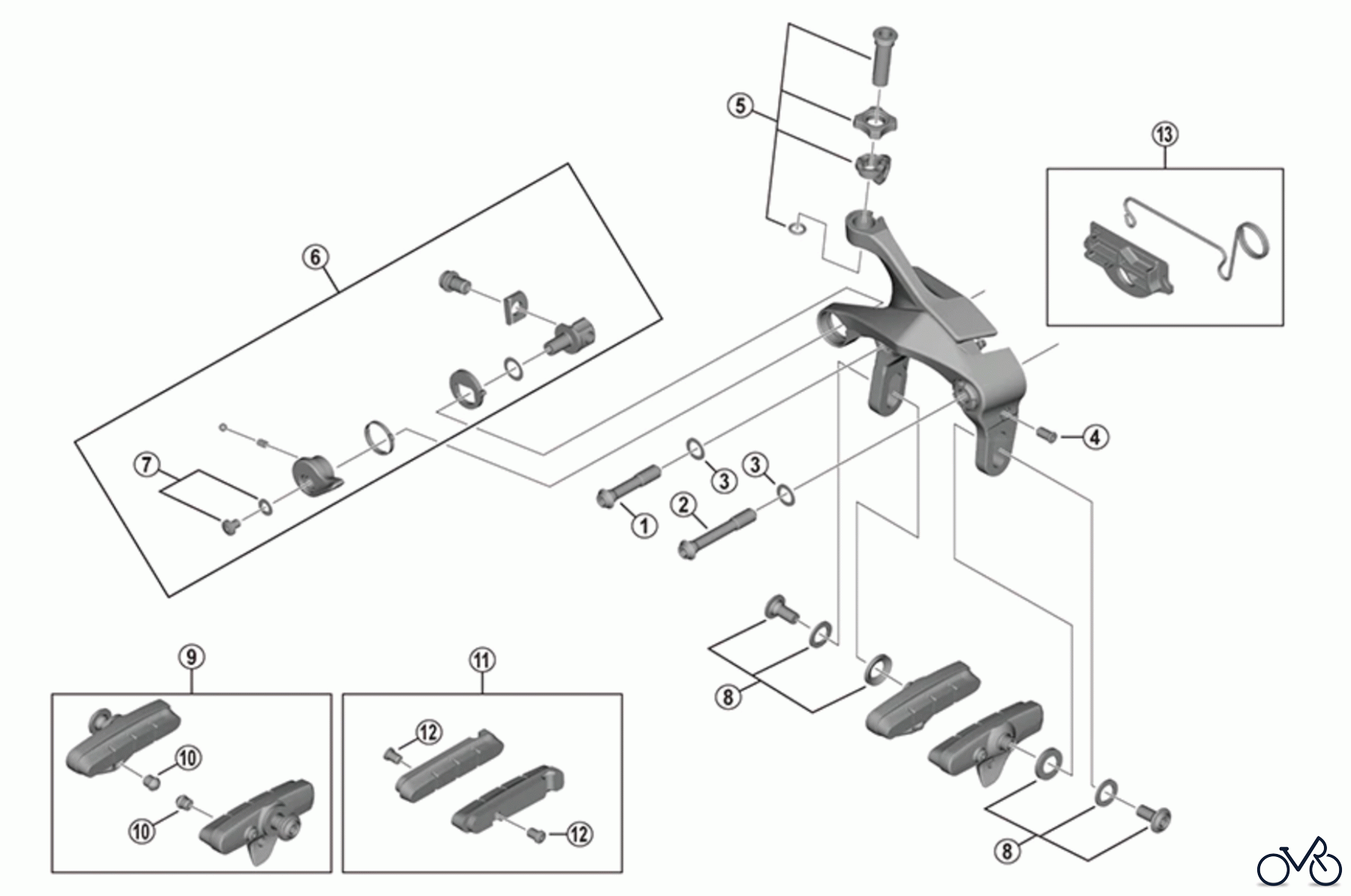

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-R9210-F DURA-ACE Bremse. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-8PS11000	Fixing screw Y (M6 x 28.9) Y8PS11000
2	Y-8PS12000	Fixing screw C (M6 x 36.8) Y8PS12000
3	Y-8BC08000	Arm washer Y8BC08000
4	Y-8PS14000	EC-screw Y8PS14000
5	Y-8PP98010	Cable adjusting screw unit Y8PP98010
6	Y-8PP98020	Quick release assembly Y8PP98020
7	Y-8PP98030	Quick release fixing screw and washer Y8PP98030
8	Y-8PP98050	Shoe fixing screw unit (M5 x 11.2) Y8PP98050
9	Y-8L398020	R55C4 Cartridge-type brake shoe set (pair) Y8L398020
10	Y-8FA16000	Tire guide Y8FA16000
11	Y-8L298060	R55C4 Cartridge-type brake shoes and fixing bolts (pair) Y8L298060
11	Y-8L298070	R55C4 Cartridge-type brake shoes and fixing bolts (pair) for carbon rim Y8L298070
11	Y-8PP98060	R55C4-A Cartridge-type brake shoes (-1 mm thinner shoe) and fixing bolts (pair) for carbon rim Y8PP98060
12	Y-8L227000	Fixing screw (M4 x 5.5) Y8L227000
13	Y-8L398040	Assembly jig Y8L398040
