Shimano BR-R9200 DURA-ACE

BR-R9200 DURA-ACE BR Brake - Bremse

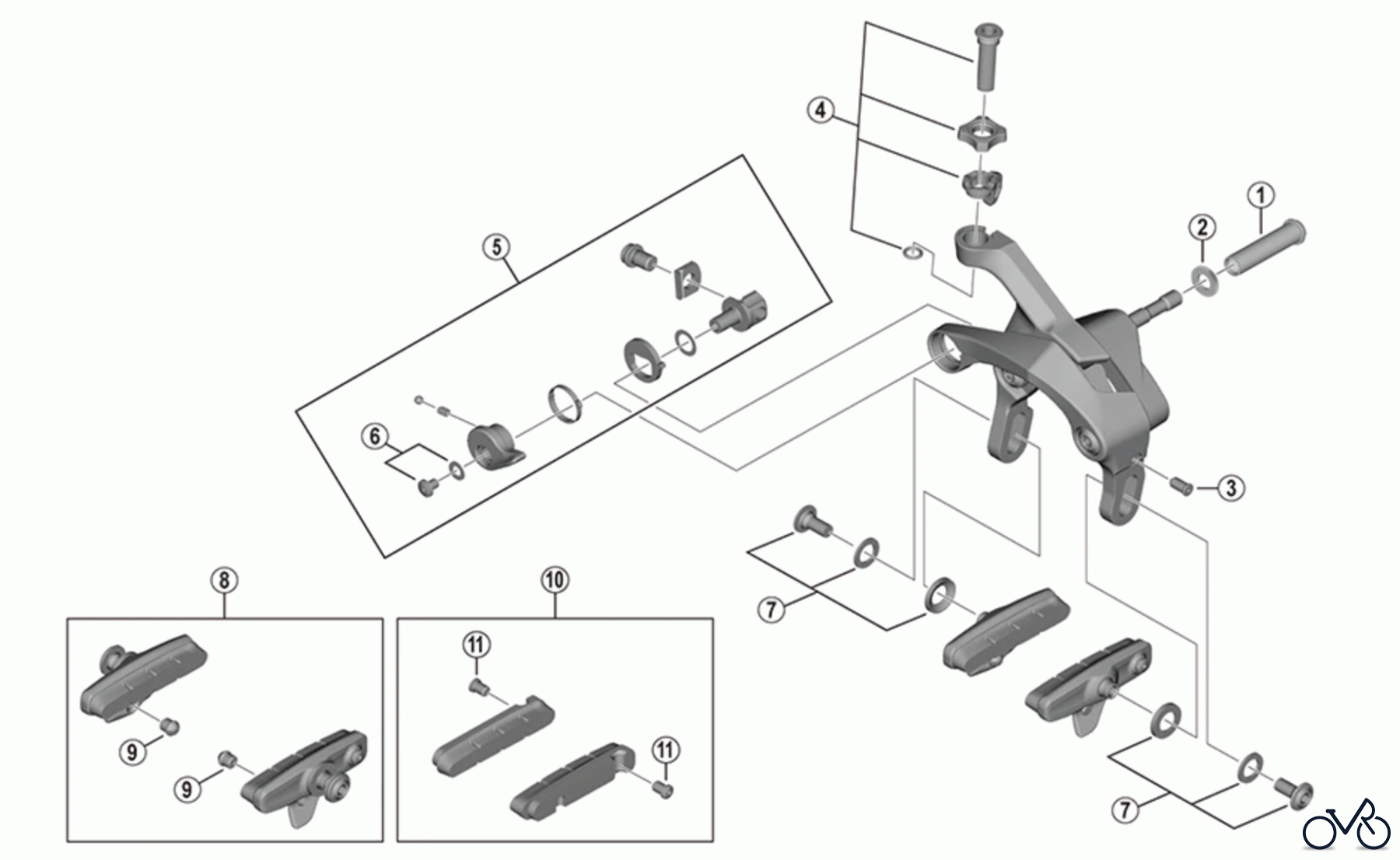

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-R9200 DURA-ACE. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-85574310	Pivot nut (18.0 mm) for front Y85574310
1	Y-8A023200	Pivot nut (27.0 mm) for front Y8A023200
1	Y-8A023210	Pivot nut (32.0 mm) for front Y8A023210
2	Y-87008100	Set washer Y87008100
3	Y-8PP09000	EC-screw Y8PP09000
4	Y-8PP98010	Cable adjusting screw unit Y8PP98010
5	Y-8PP98020	Quick release assembly Y8PP98020
6	Y-8PP98030	Quick release fixing screw and washer Y8PP98030
7	Y-8PP98050	Shoe fixing screw unit (M5 x 11.2) Y8PP98050
8	Y-8L298050	R55C4 Cartridge-type brake shoe set (pair) Y8L298050
9	Y-8FA16000	Tire guide Y8FA16000
10	Y-8L298060	R55C4 Cartridge-type brake shoes and fixing bolts (pair) Y8L298060
10	Y-8L298070	R55C4 Cartridge-type brake shoes and fixing bolts (pair) for carbon rim Y8L298070
10	Y-8PP98060	R55C4-A Cartridge-type brake shoes (-1 mm thinner shoe) and fixing bolts (pair) for carbon rim Y8PP98060
11	Y-8L227000	Fixing screw (M4 x 5.5) Y8L227000
