Shimano FC-MT512-1 XTR

FC-MT512-1 XTR FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

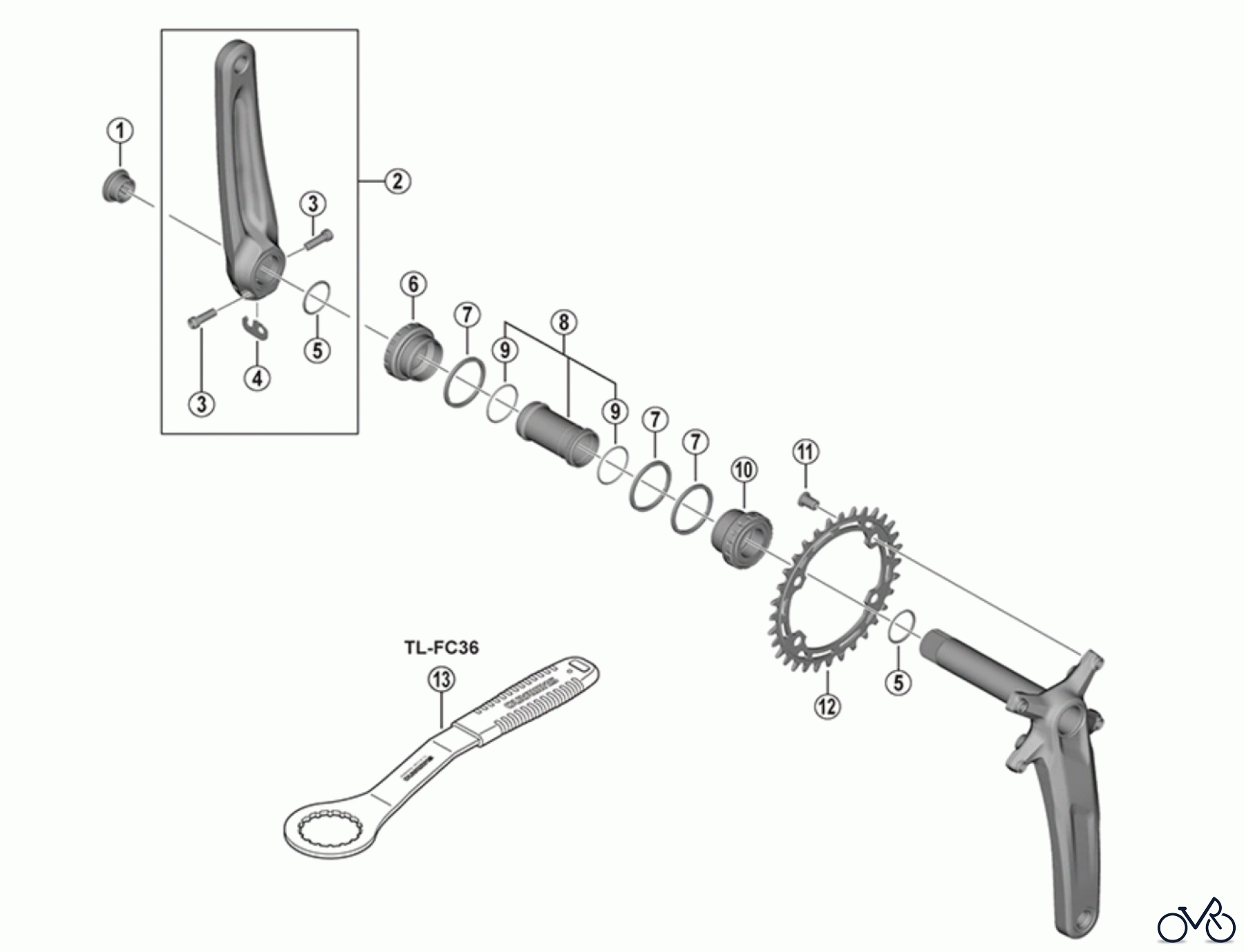

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-MT512-1 XTR. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1F811100	Crank arm fixing screw Y1F811100
2	Y-0N298030	Left hand crank arm unit 165 mm Y0N298030
2	Y-0N298010	Left hand crank arm unit 170 mm Y0N298010
2	Y-0N298020	Left hand crank arm unit 175 mm Y0N298020
3	Y-1GS00030	Clamp screw (M6 x 19) Y1GS00030
4	Y-1FU98120	Plate Y1FU98120
5	Y-1F316000	Ring Y1F316000
6	Y-1RP98050	Left hand adapter (B.C.1.37" x 24T) english thread (SM-BB52) Y1RP98050
7	Y-1F813000	Spacer (2.5 mm) Y1F813000
8	Y-1J898060	Inner cover and O-ring Y1J898060
9	Y-1TF21000	O-Ring Y1TF21000
10	Y-1RP98060	Right hand adapter (B.C.1.37" x 24T) english thread (SM-BB52) Y1RP98060
11	Y-1FM98030	Gear fixing screw (M8 x 8.5 / 1 unit = 4 pcs.) Y1FM98030
12	Y-0L330000	Chainring 30T Y0L330000
12	Y-0L332000	Chainring 32T Y0L332000
13	Y-13098000	TL-FC36 Adapter tool Y13098000
