Shimano FC-M9125

FC-M9125 FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-M9125

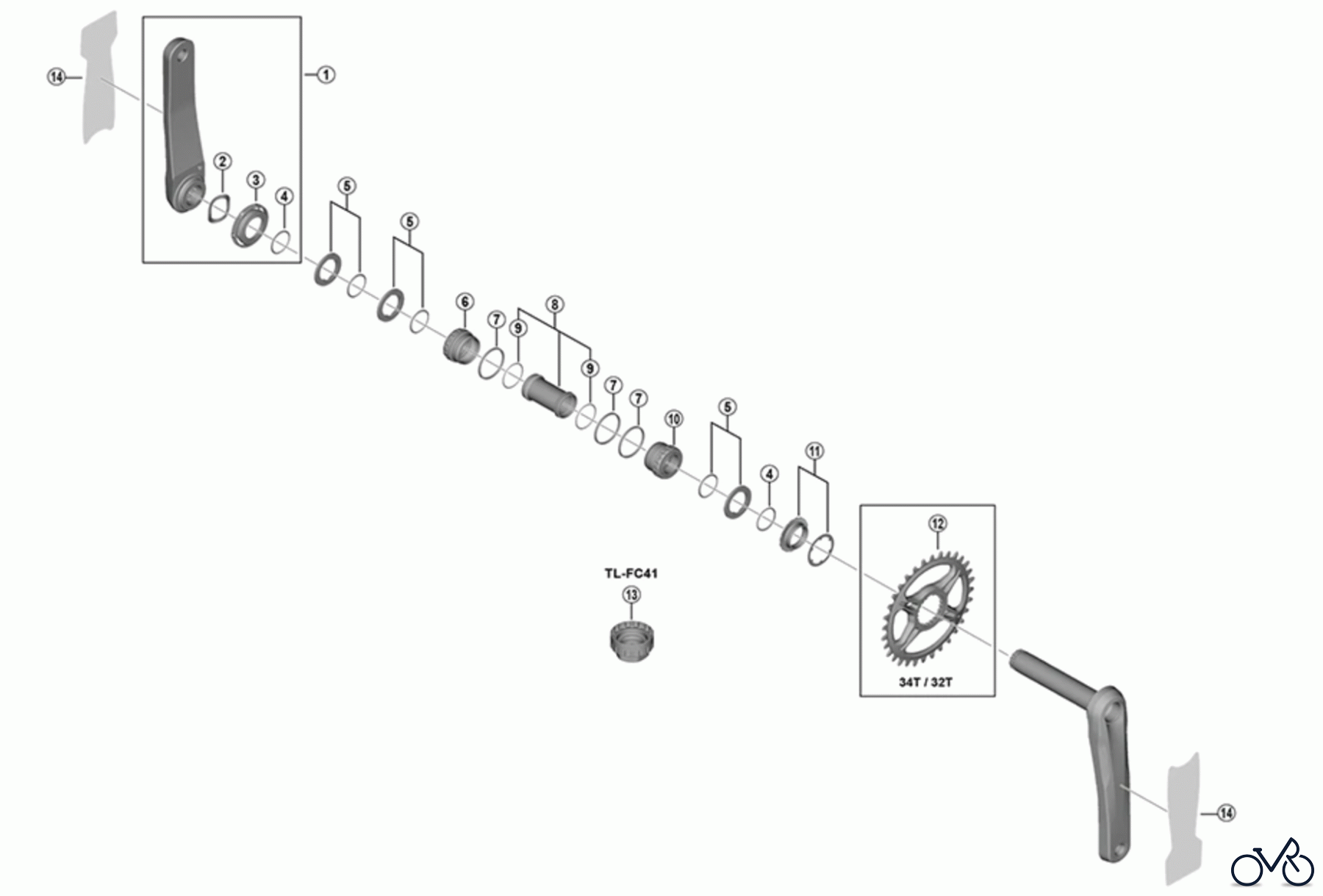

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-M9125. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-1X098020Left hand crank arm unit 165 mm Y1X098020
1 Y-1X098030Left hand crank arm unit 170 mm Y1X098030
1 Y-1X098040Left hand crank arm unit 175 mm Y1X098040
2 Shimano Wave washer Y-1X027000Wave washer Y1X027000
3 Y-1X026000Adjust nut Y1X026000
4 Shimano Ring Y-1F316000Ring Y1F316000
5 Shimano Spacer and ring Y-1PW98070Spacer and ring Y1PW98070
6 Y-1P898010Left hand adapter (B.C.1.37" x 24T) english thread (SM-BB93) Y1P898010
7 Y-1P804000Spacer (2.5 mm) Y1P804000
8 Y-1LR98090Inner cover and O-ring Y1LR98090
9 Shimano O-ring Y-1TF21000O-ring Y1TF21000
10 Y-1P898020Right hand adapter (B.C.1.37" x 24T) english thread (SM-BB93) Y1P898020
11 Y-1X098050Lock ring and washer Y1X098050
12 I-SMCRM95A2Chainring 32T (SM-CRM95) ISMCRM95A2
12 I-SMCRM95A4Chainring 34T (SM-CRM95) ISMCRM95A4
13 Y-13098720TL-FC41 Front chainring direct mount tool Y13098720
14 Y-1X098060Protection Sticker Y1X098060
