Shimano FH-UR600 Freehub (10/11-speed) (E-Bike)

FH-UR600 Freehub (10/11-speed) (E-Bike) FH Free Hub - Freilaufnabe

Shimano FH Free Hub - Freilaufnabe FH-UR600 Freehub (10/11-speed) (E-Bike)

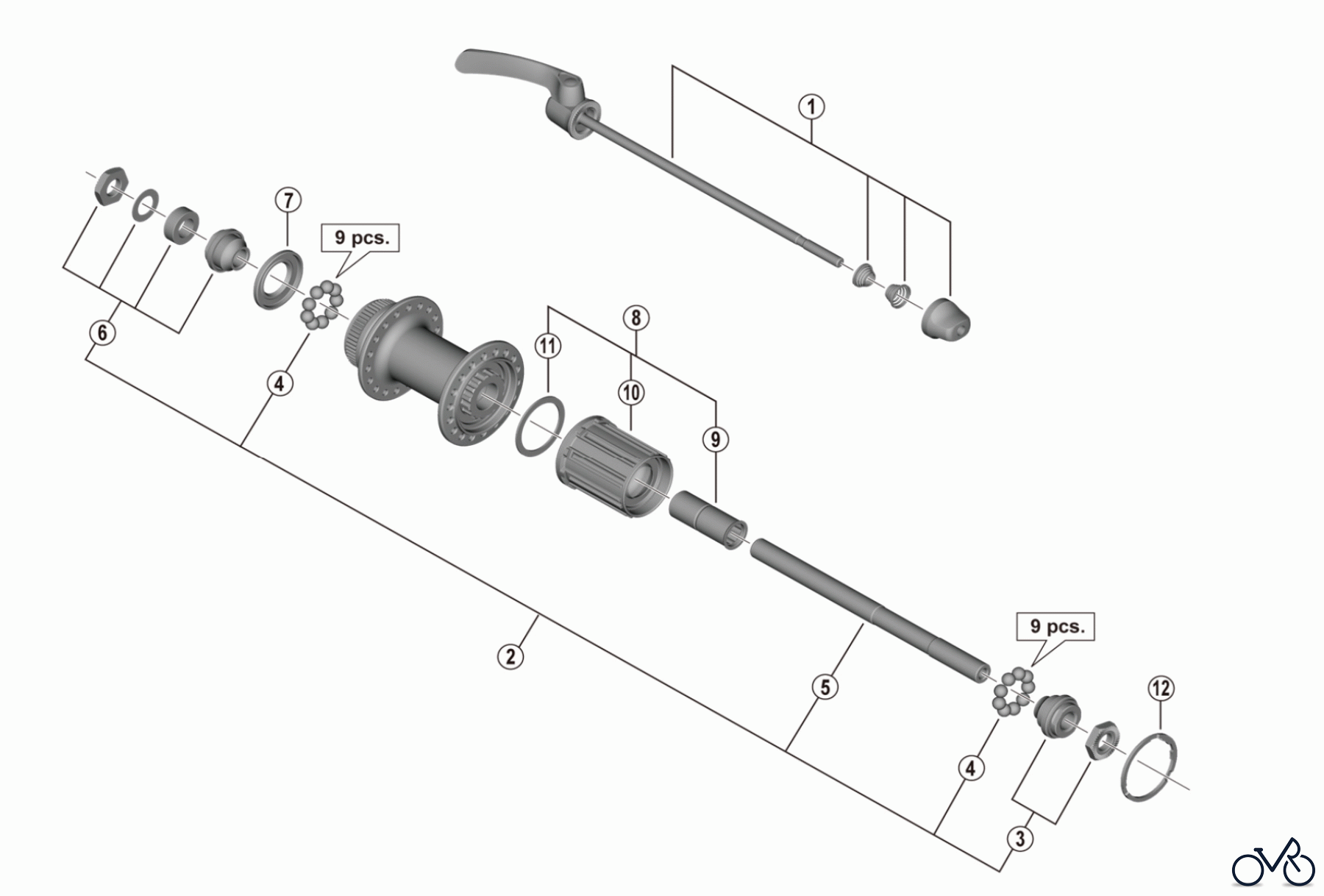

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-UR600 Freehub (10/11-speed) (E-Bike). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-3J798010 Complete quick release 168 mm Y3J798010
1 Y-3J798020 Complete quick release 173 mm Y3J798020
2 Y-02V98030 Complete hub axle 146 mm Y02V98030
3 Shimano Right hand lock nut unit Y-48U98020 Right hand lock nut unit Y48U98020
4 Shimano Steel ball (1/4") 18 pcs. Y-00091310 Steel ball (1/4") 18 pcs. Y00091310
5 Shimano Hub axle M10 x 146 mm Y-30K01200 Hub axle M10 x 146 mm Y30K01200
6 Shimano Left hand lock nut unit Y-02V98040 Left hand lock nut unit Y02V98040
7 Shimano Left hand seal ring Y-3CR09000 Left hand seal ring Y3CR09000
8 Shimano Complete freewheel body Y-31F98070 Complete freewheel body Y31F98070
9 Shimano Body fixing screw Y-3BL03000 Body fixing screw Y3BL03000
10 Y-31F98080 Freewheel body unit Y31F98080
11 Y-3TD06000 Hub shell spacer Y3TD06000
12 Y-4T724000 Low spacer (1.85 mm) Y4T724000
