Shimano WH-RX570-TL-F12-650B-4570A GRX Front Wheel

WH-RX570-TL-F12-650B-4570A GRX Front Wheel WH Wheels - Laufräder

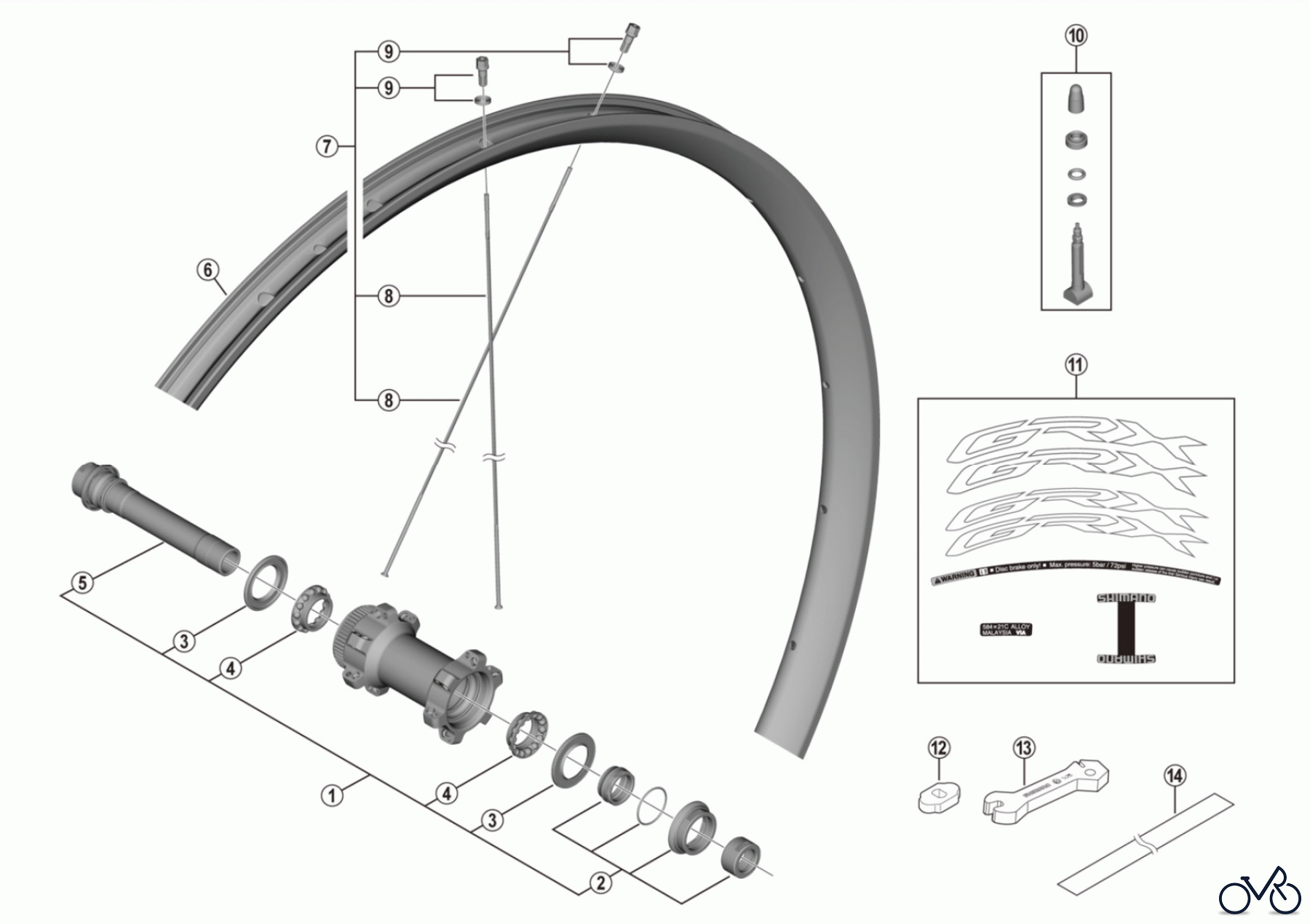

Here you will find the spare parts drawing for Shimano WH Wheels - Laufräder WH-RX570-TL-F12-650B-4570A GRX Front Wheel. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Bankeinzug, MasterCard, Visa, American Express, PayPal, Nachnahme, Vorauskasse, Sofortüberweisung

Report Error

Help us to improve this site. Notify us if something is wrong here.

Pos	Article Number	Description
1	Y-0H198010	Complete Hub Axle B Y0H198010
2	Y-0H198020	Right Hand Lock Nut B Y0H198020
3	Y-26D10000	Seal Ring A Y26D10000
4	Y-0AY98030	Ball Retainer (5/32") A Y0AY98030
5	Y-0H198030	Hub Axle Unit B Y0H198030
6	E-WHRIMZ2F5T	Rim {24H} EWHRIMZ2F5T
7	E-WHSPOKEY273K	Spoke Unit {Spoke (279 mm x 24 pcs.) / Nipple (24 pcs.) / Rim Washer (24 pcs.)} EWHSPOKEY273K
8	Y-0H4S1000	Spoke (279 mm) Y0H4S1000
9	Y-0H198040	Nipple & Rim Washer Y0H198040
10	Y-0D298060	Valve Unit Y0D298060
11	Y-0H498010	Rim Sticker Unit Y0H498010
12	Y-4RJ10000	VALVE TOOL Y4RJ10000
13	Y-4SY11000	NIPPLE WRENCH 3.75 A Y4SY11000
14	Y-0H405810	TUBELESS TAPE(POLYIMIDE) Y0H405810
