Shimano BL-RX812 GRX Sub Brake Lever For Disc Brake

BL-RX812 GRX Sub Brake Lever For Disc Brake BL Brake Lever - Bremshebel

Shimano BL Brake Lever - Bremshebel BL-RX812 GRX Sub Brake Lever For Disc Brake

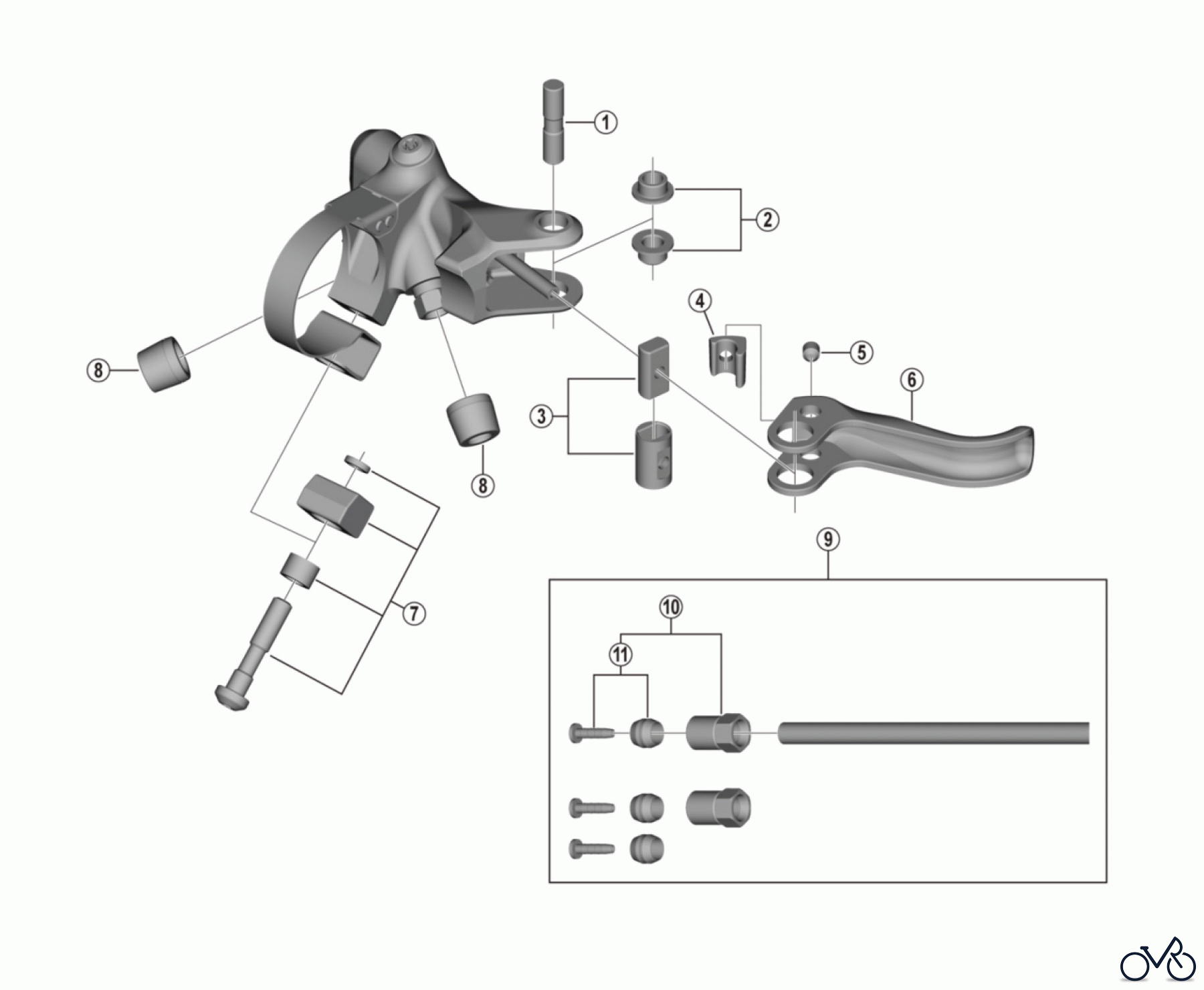

Here you will find the spare parts drawing for Shimano BL Brake Lever - Bremshebel BL-RX812 GRX Sub Brake Lever For Disc Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-8VD05000 Lever Axle 5 Y8VD05000
2 Y-8UW98060 Lever Axle Bush A & B Y8UW98060
3 Shimano Adjust Boss & Sleeve Y-8VD98010 Adjust Boss & Sleeve Y8VD98010
4 Y-2EL09000 Lever Member Spacer Y2EL09000
5 Y-88414000 Lever Axle Fixing Bolt Y88414000
6 Y-2EL02000 Lever Member Y2EL02000
7 Y-2EL98010 Clamp Bolt Unit Y2EL98010
8 Y-8H802000 Hose Cover Y8H802000
9 Y-2EL98020 Brake Hose 300 mm Set Y2EL98020
10 Shimano Connecting Bolt Unit (M8/Black) Y-8JA98010 Connecting Bolt Unit (M8/Black) Y8JA98010
11 Shimano Olive & Connecter InsertY-8JA98020 Olive & Connecter Insert Y8JA98020
