Shimano ST-RX810 (-4593B) GRX Dual Control Lever (For Disc Brake) (2x11-speed)

ST-RX810 (-4593B) GRX Dual Control Lever (For Disc Brake) (2x11-speed) ST Rapidfire- Schaltbremshebel

Shimano ST Rapidfire- Schaltbremshebel ST-RX810 (-4593B) GRX Dual Control Lever (For Disc Brake) (2x11-speed)

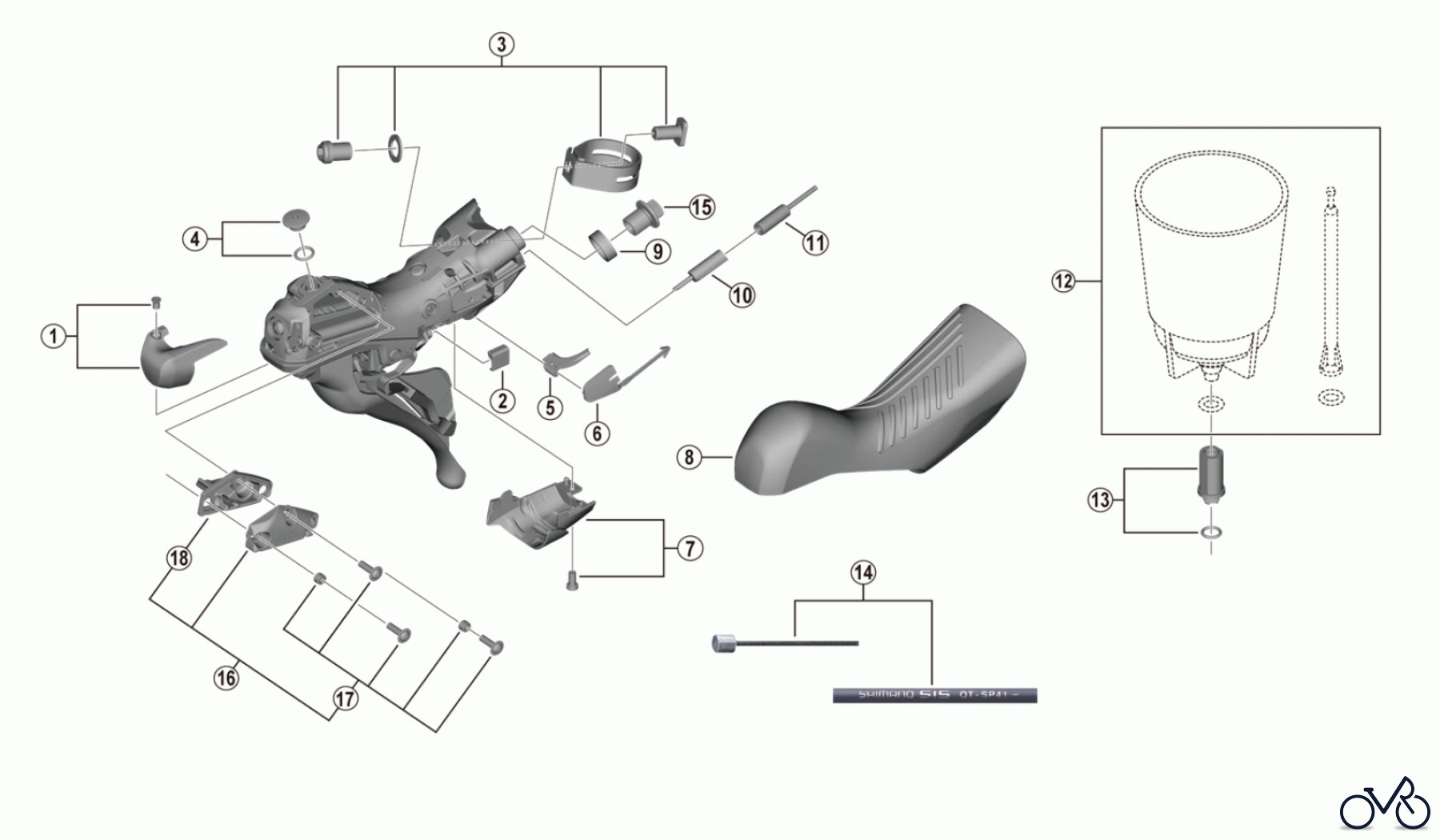

Here you will find the spare parts drawing for Shimano ST Rapidfire- Schaltbremshebel ST-RX810 (-4593B) GRX Dual Control Lever (For Disc Brake) (2x11-speed). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0E098020	Right hand name plate R and fixing screw Y0E098020
1	Y-0E198010	Left hand name plate L and fixing screw Y0E198010
2	Y-63X80000	Main lever support R Y63X80000
2	Y-63X80010	Main lever support L Y63X80010
3	Y-0E098030	Clamp band unit diameter (23.8 - 24.2 mm) Y0E098030
4	Y-0C698030	Bleed screw and O-ring Y0C698030
5	Y-07X75000	SL cable guide R Y07X75000
5	Y-07V75000	SL cable guide L Y07V75000
6	Y-00E75000	SL cable cover R Y00E75000
6	Y-0C574000	SL cable cover L Y0C574000
7	Y-0C698040	Right hand unit cover R and fixing screw Y0C698040
7	Y-0C598020	Left hand unit cover L and fixing screw Y0C598020
8	Y-0JK98010	Bracket covers (pair) Y0JK98010
9	Y-0C514000	Joint support ring Y0C514000
10	Y-63Z27000	Outer cap with short tongue for ST Y63Z27000
11	Y-63Z28000	Outer cap with long tongue Y63Z28000
12	E-SMDISCBP	Funnel and oil stopper ESMDISCBP
13	Y-0C698050	Funnel adapter and O-ring Y0C698050
14	Y-8ZG98090	OT-SP41 OPTISLICK shift cable sets black (OT-RS900 is included) Y8ZG98090
14	Y-8ZG98100	OT-SP41 OPTISLICK shift cable sets white (OT-RS900 is included) Y8ZG98100
14	Y-8ZG98110	OT-SP41 OPTISLICK shift cable sets red (OT-RS900 is included) Y8ZG98110
14	Y-8ZG98120	OT-SP41 OPTISLICK shift cable sets high-tech gray (OT-RS900 is included) Y8ZG98120
15	Y-8RD02000	Flange flare nut (M9/black) Y8RD02000
16	Y-0C698060	Right hand lid unit Y0C698060
16	Y-0C598030	Left hand lid unit Y0C598030
17	Y-0C698070	Lid fixing screw (3 pcs.) and lid spacer (2 pcs.) Y0C698070
18	Y-0C678000	Diaphragm R Y0C678000
18	Y-0C578000	Diaphragm L Y0C578000
