Shimano FH-M7110, FH-M7110-B SLX Freehub (12-speed

FH-M7110, FH-M7110-B SLX Freehub (12-speed FH Free Hub - Freilaufnabe

SM-AX76 /AX76-B

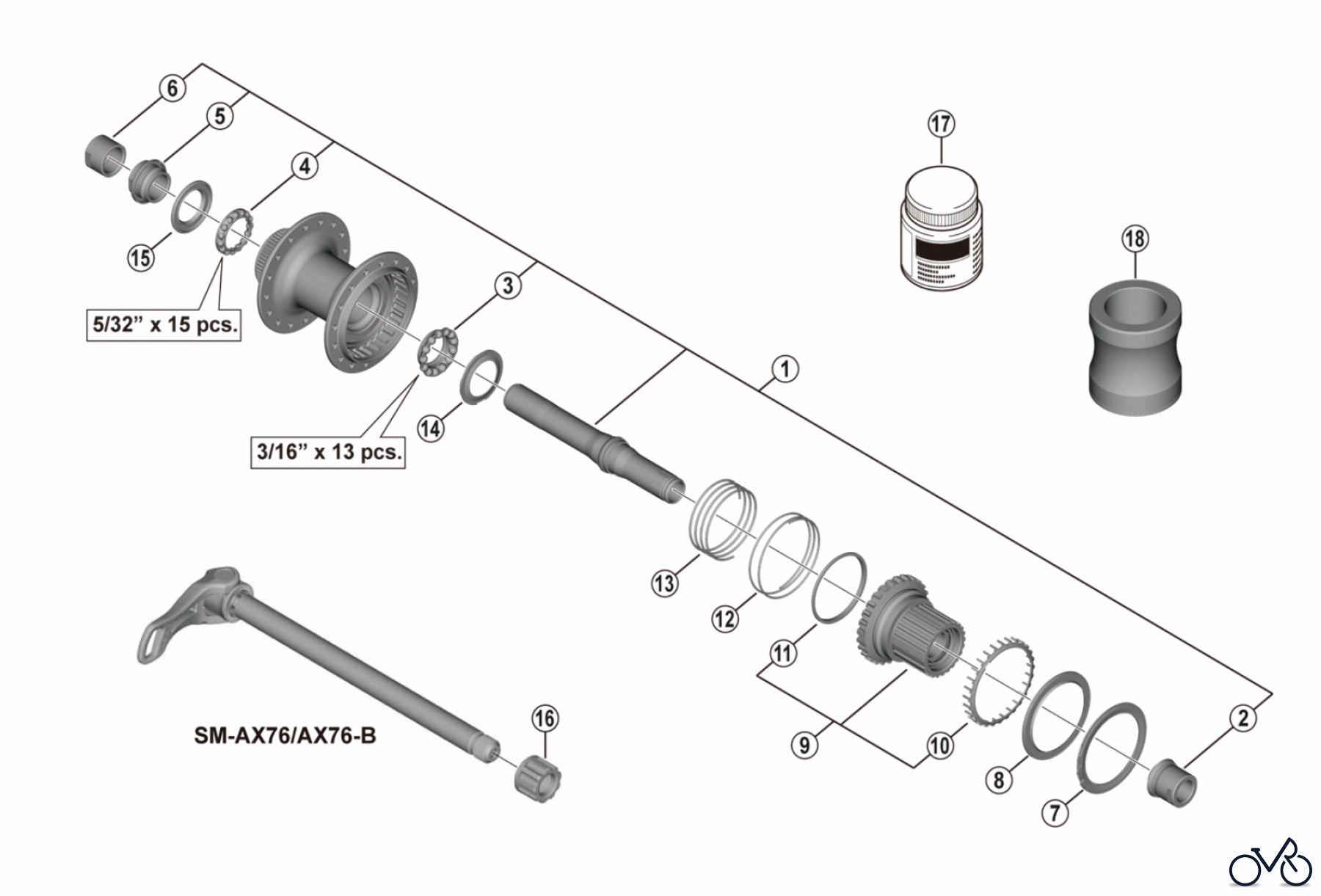

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-M7110, FH-M7110-B SLX Freehub (12-speed. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-3G498010	Complete hub axle for FH-M7110 B Y3G498010
1	Y-3G698010	Complete hub axle for FH-M7110-B B Y3G698010
2	Y-3G198020	Right hand cap unit Y3G198020
3	Y-3G198030	Right hand ball retainer (3/16" x 13) Y3G198030
4	Y-0CJ98030	Ball retainer (5/32" x 15) Y0CJ98030
5	Y-3G198040	Left hand cone with dust cover Y3G198040
6	Y-3G104000	Left hand lock nut Y3G104000
7	Y-3FL98060	Stop ring with outer dust cover Y3FL98060
8	Y-3FM26000	Outer seal ring Y3FM26000
9	Y-3G198050	Complete freewheel body Y3G198050
10	Y-3FM14000	Spacer Y3FM14000
11	Y-3FM11000	Slider Y3FM11000
12	Y-3FM10000	Spring Y3FM10000
13	Y-3FM12000	Coil spring Y3FM12000
14	Y-3G112000	Inner cover Y3G112000
15	Y-26D10000	Seal ring Y26D10000
16	Y-27Y02000	Fixing nut (M12) Y27Y02000
17	Y-38Z98000	Seal grease for freehub 50 g Y38Z98000
18	Y-1Y100010	TL-FH16 Seal ring presser Y1Y100010
