Shimano FH-M9111, FH-M9111-B, FH-M9111-BS

FH-M9111, FH-M9111-B, FH-M9111-BS FH Free Hub - Freilaufnabe

SM-AX76 SM-AX76-B

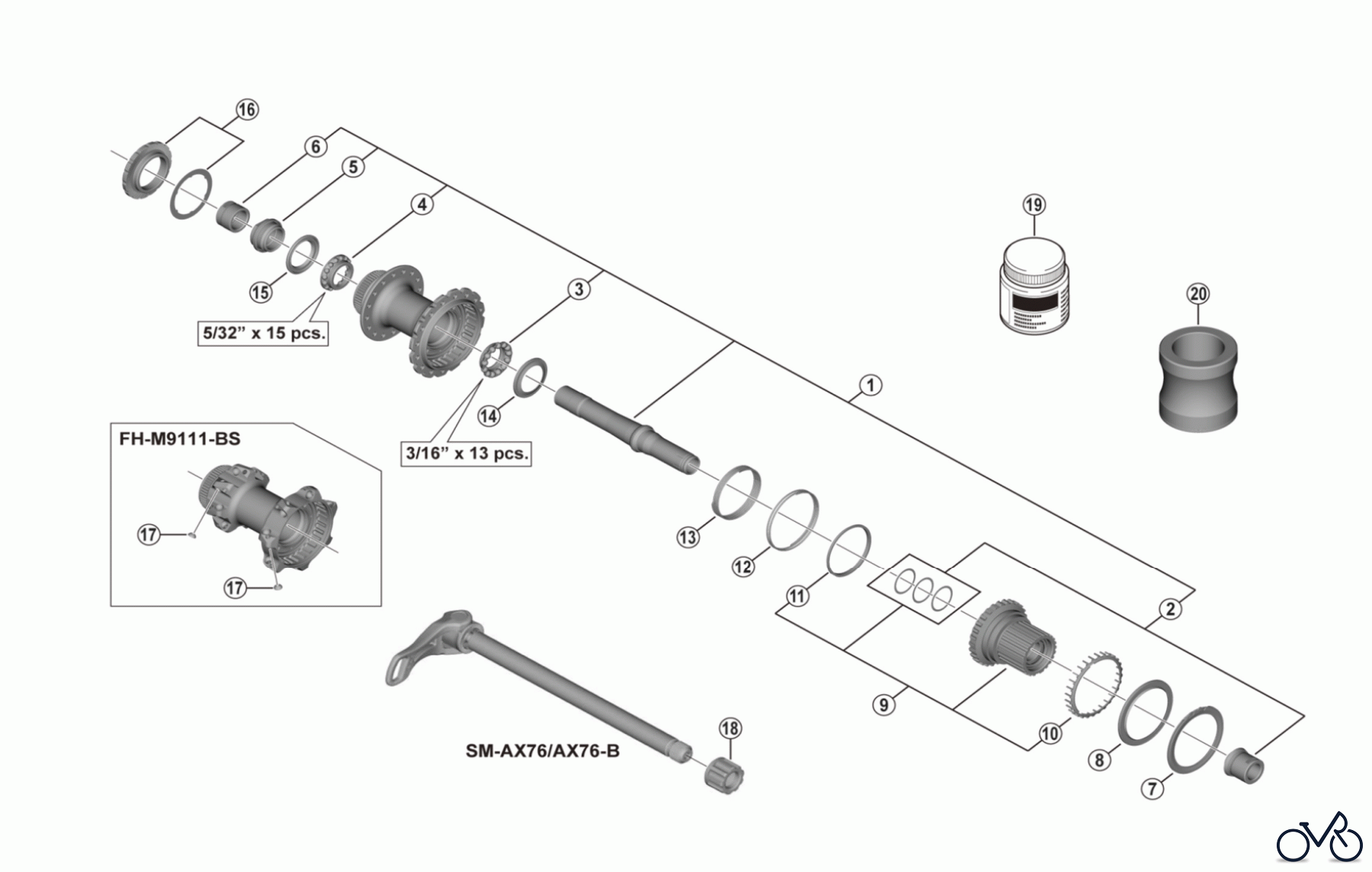

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-M9111, FH-M9111-B, FH-M9111-BS. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-3GW98010	Complete hub axle for FH-M9111 Y3GW98010
1	Y-3GX98010	Complete hub axle for FH-M9111-B and FH-M9111-BS Y3GX98010
2	Y-3FL98020	Right hand cap unit Y3FL98020
3	Y-3FL98030	Right hand ball retainer (3/16" x 13) Y3FL98030
4	Y-3FL98040	Left hand ball retainer (5/32" x 15) Y3FL98040
5	Y-3GW98020	Left hand cone with dust cover Y3GW98020
6	Y-3GX31000	Left hand lock nut Y3GX31000
7	Y-3FL98060	Stop ring with outer dust cover Y3FL98060
8	Y-3FM26000	Outer seal ring Y3FM26000
9	Y-3GW98040	Complete freewheel body Y3GW98040
10	Y-3FM14000	Spacer Y3FM14000
11	Y-3FM11000	Slider Y3FM11000
12	Y-3FM10000	Spring Y3FM10000
13	Y-3FM12000	Coil spring Y3FM12000
14	Y-3FM25000	Inner cover Y3FM25000
15	Y-27X14000	Left hand seal ring Y27X14000
16	Y-2CW98050	Lock ring and washer Y2CW98050
17	Y-44801000	Spherical washer Y44801000
18	Y-27Y02000	Fixing nut (M12) Y27Y02000
19	Y-38Z98000	Seal grease for freehub 50 g Y38Z98000
20	Y-1Y100010	TL-FH16 Seal ring presse Y1Y100010
