Shimano HB-M8110-BS DEORE XT Front Hub

HB-M8110-BS DEORE XT Front Hub HB Hub - Vordere Nabe

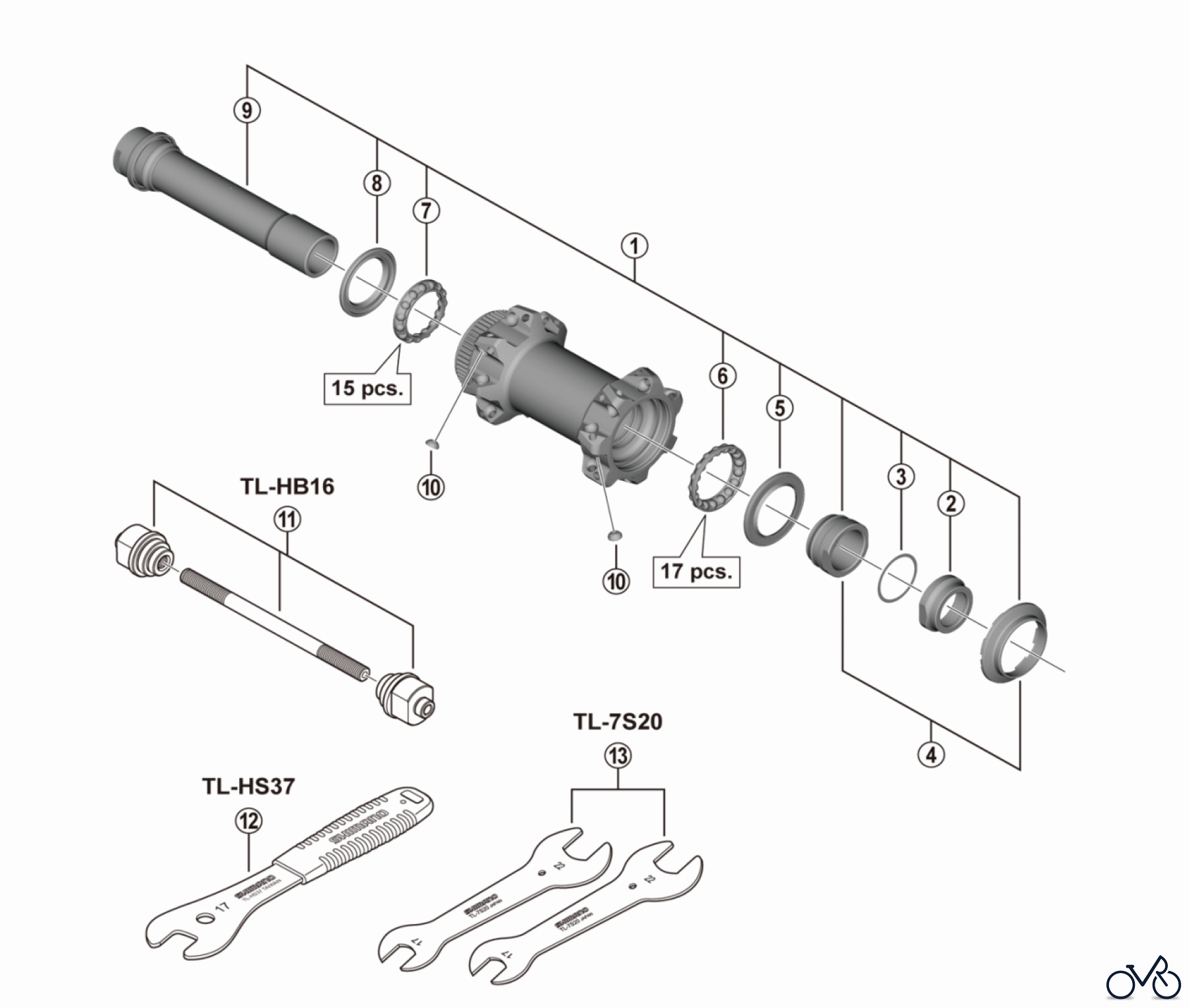

Here you will find the spare parts drawing for Shimano HB Hub - Vordere Nabe HB-M8110-BS DEORE XT Front Hub. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-2E598010	Complete Hub Axle Y2E598010
2	Y-2A500050	Right Hand Lock Nut Y2A500050
3	Y-24613000	Adjusting Washer Y24613000
4	Y-2E598020	Right Hand Cone & Cap Y2E598020
5	Y-27X15000	Right Hand Seal Ring Y27X15000
6	Y-27X98030	Right Hand Ball Retainer (5/32" x 17) Y27X98030
7	Y-27X98040	Left Hand Ball Retainer (5/32" x 15) Y27X98040
8	Y-27X14000	Left Hand Seal Ring Y27X14000
9	Y-2AH98020	Hub Axle Unit Y2AH98020
10	Y-44801000	SPHERICAL WASHER Y44801000
11	Y-20W98020	TL-HB16 Hub Setting Tool Y20W98020
12	Y-23098030	TL-HS37 Hub Spanner (17 mm) Y23098030
13	Y-13098900	TL-7S20 Hub Spanner (17 mm x 22 mm) 2 pcs Y13098900
