Shimano FC-M8130-1 DEORE XT Crankset

FC-M8130-1 DEORE XT Crankset FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

BB-MT800 SM-CRM85

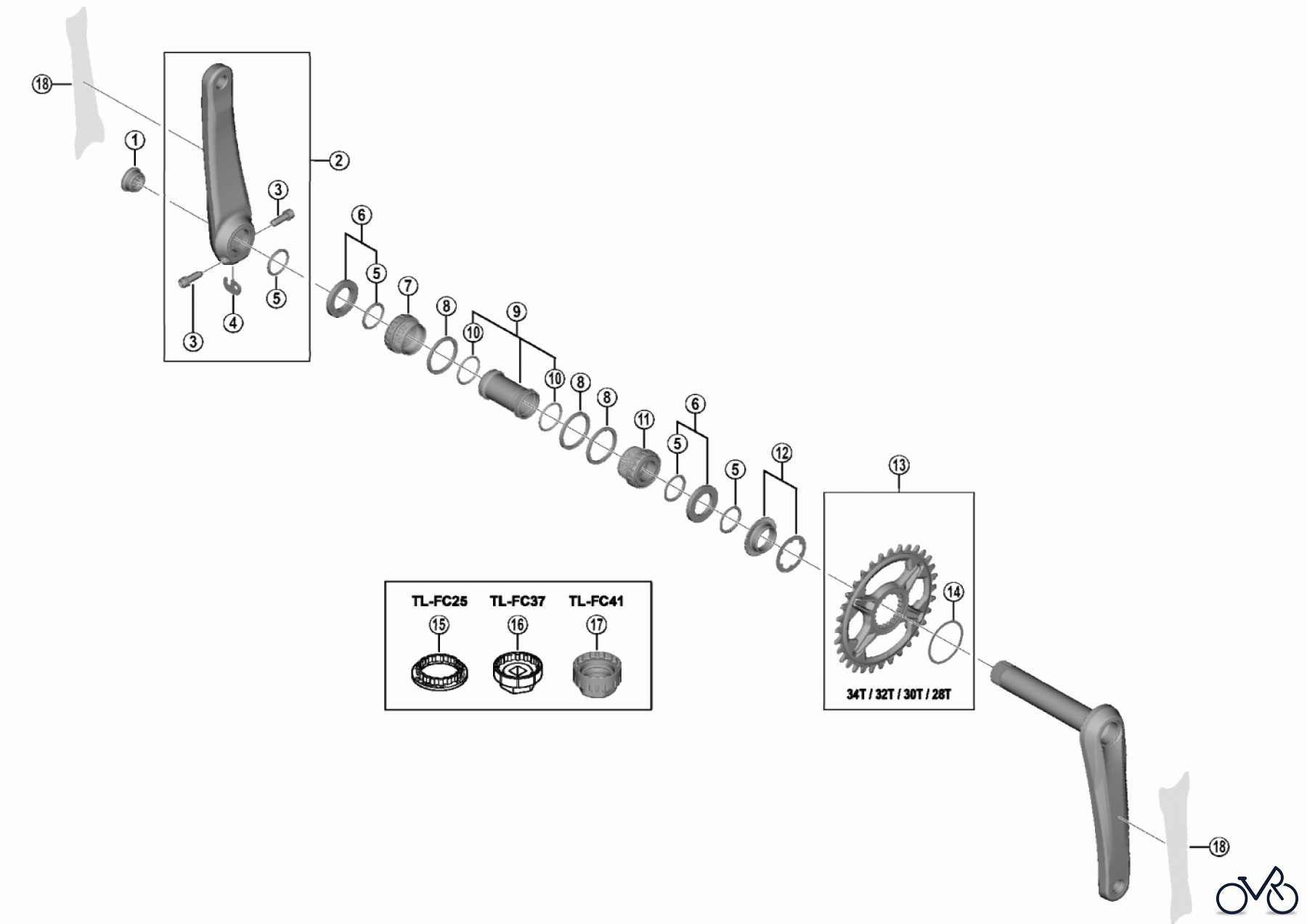

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-M8130-1 DEORE XT Crankset. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0J620000	Crank Arm Fixing Screw Y0J620000
2	Y-0J698010	Left Hand Crank Arm Unit 165 mm Y0J698010
2	Y-0J698020	Left Hand Crank Arm Unit 170 mm Y0J698020
2	Y-0J698030	Left Hand Crank Arm Unit 175 mm Y0J698030
2	Y-0J698040	Left Hand Crank Arm Unit 180 mm Y0J698040
3	Y-1GS21000	Clamp Screw with Washer (M6 x 21) Y1GS21000
4	Y-0J698050	Plate Y0J698050
5	Y-1F316000	Ring A Y1F316000
6	Y-0J798010	Spacer T4.5 & Ring Y0J798010
7	Y-1V698010	Left Hand Adapter (B.C.1.37" x 24T) English Thread (BB-MT800) Y1V698010
8	Y-1P804000	Spacer (2.5 mm) Y1P804000
9	Y-1E598210	Inner Cover & O-Ring Y1E598210
10	Y-1TF21000	O-Ring Y1TF21000
11	Y-1V698020	Right Hand Adapter (B.C.1.37" x 24T) English Thread (BB-MT800) Y1V698020
12	Y-0J698060	Lock Ring & Washer Y0J698060
13	I-SMCRM85Z8	Chainring 28T w/Spacer (SM-CRM85) ISMCRM85Z8
13	I-SMCRM85A0	Chainring 30T w/Spacer (SM-CRM85) ISMCRM85A0
13	I-SMCRM85A2	Chainring 32T w/Spacer (SM-CRM85) ISMCRM85A2
13	I-SMCRM85A4	Chainring 34T w/Spacer (SM-CRM85) ISMCRM85A4
14	Y-0JC61000	Spacer Y0JC61000
15	Y-13009260	TL-FC25 Adapter Installation Tool Y13009260
16	Y-13009270	TL-FC37 Adapter Installation Tool Y13009270
17	Y-13098720	TL-FC41 Front Chainring Direct Mount Tool Y13098720
18	Y-0J698070	Protection Sticker for Crank Arm 165/170 mm (2 pcs.) Y0J698070
18	Y-0J698080	Protection Sticker for Crank Arm 175/180 mm (2 pcs.) Y0J698080
