Shimano BR-M8100 DEORE XT Disc Brake

BR-M8100 DEORE XT Disc Brake BR Brake - Bremse

SM-BH90-SBM Brake Hose, RT-MT800 Disc Rotor

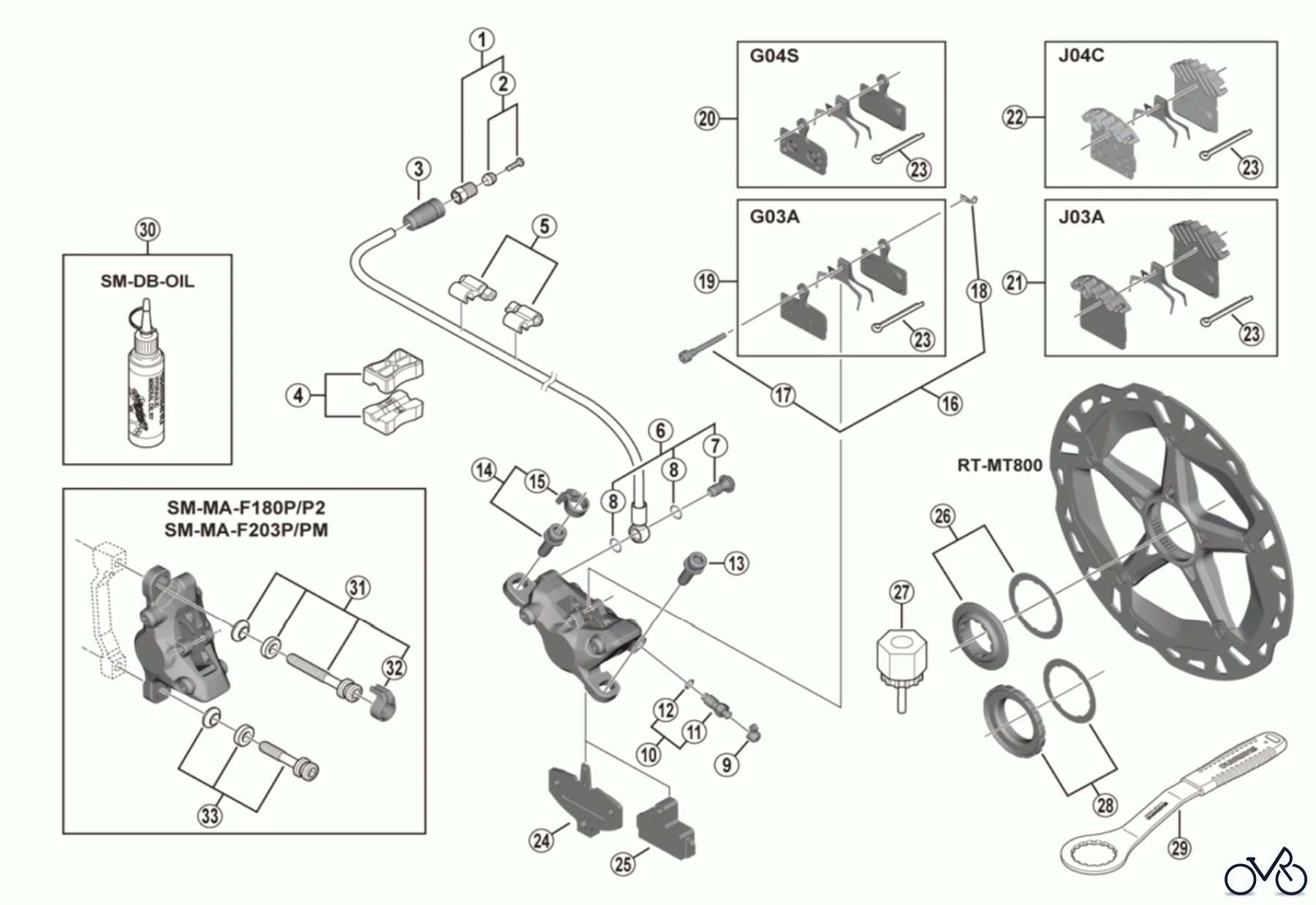

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M8100 DEORE XT Disc Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-8JA98010	Flare Nut Unit Y8JA98010
2	Y-8JA98020	Olive & Connecter Insert Y8JA98020
3	Y-1XJ16000	Cover Y1XJ16000
4	Y-8H198030	TL-BH61 Shimano original tool (2 pcs.) Y8H198030
5	Y-83098040	SM-HANG Hose Supporter Y83098040
6	Y-2RT98010	Banjo Screw & O-Ring Y2RT98010
7	Y-2RT05000	Banjo Screw Y2RT05000
8	Y-8SY28000	O-Ring Y8SY28000
9	Y-8B214000	Bleed Nipple Cap Y8B214000
10	Y-8CL98050	Bleed Nipple & Seal Ring Y8CL98050
11	Y-8CL24200	Bleed Nipple Y8CL24200
12	Y-8B511001	O-Ring for Bleed Nipple Y8B511001
13	Y-8C509020	Caliper Fixing Screw (M6 x 18.7) Y8C509020
14	Y-2F398020	Caliper Fixing Screw (M6 x 18.7) & Snap Ring Y2F398020
15	Y-2RT06000	Snap Ring Y2RT06000
16	Y-8JZ98010	Pad Axle & Snap Retainer Y8JZ98010
17	Y-8JZ05000	Pad Axle Y8JZ05000
18	Y-8J716000	Snap Retainer Y8J716000
19	Y-8LV98010	Resin Pad (G03A) & Spring w/Split Pin Y8LV98010
20	Y-8MY98010	Metal Pad (G04S) & Spring w/Split Pin Y8MY98010
21	Y-8Z298010	Resin Pad (J03A) w/Fin & Spring w/Split Pin Y8Z298010
22	Y-8LW98030	Metal Pad (J04C) w/Fin & Spring w/Split Pin Y8LW98030
23	Y-8DB06100	Split Pin Y8DB06100
24	Y-8J709000	Pad Spacer Y8J709000
25	Y-8J712000	Bleeding Spacer Y8J712000
26	Y-8K198010	Lock Ring & Washer Y8K198010
27	Y-12009230	TL-LR15 Lock Ring Removal Tool Y12009230
28	Y-2A598030	Lock Ring & Washer (External spline type) Y2A598030
29	Y-13098000	TL-FC36 Lock Ring Removal Tool Y13098000
30	Y-83998020	Mineral Oil (100 ml) Y83998020
30	Y-83998030	Mineral Oil (500 ml) Y83998030
31	Y-2RT98020	Caliper Fixing Screw Unit (M6 x 37.9) for SM-MA-F180P/P2 Y2RT98020
31	Y-2RT98030	Caliper Fixing Screw Unit (M6 x 40.2) for SM-MA-F203P/PM Y2RT98030
32	Y-2RT07000	Snap Ring Y2RT07000
33	Y-8G498030	Caliper Fixing Screw Unit (M6 x 32.1) for SM-MA-F180P/P2 Y8G498030
33	Y-8J498020	Caliper Fixing Screw Unit (M6 x 34.4) for SM-MA-F203P/PM Y8J498020
