Shimano FD-M8100 DEORE XT SIDE SWING Front Derailleur (2x12-speed)

FD-M8100 DEORE XT SIDE SWING Front Derailleur (2x12-speed) FD Front Derailleur - Umwerfer

Shimano FD Front Derailleur - Umwerfer FD-M8100 DEORE XT SIDE SWING Front Derailleur (2x12-speed)

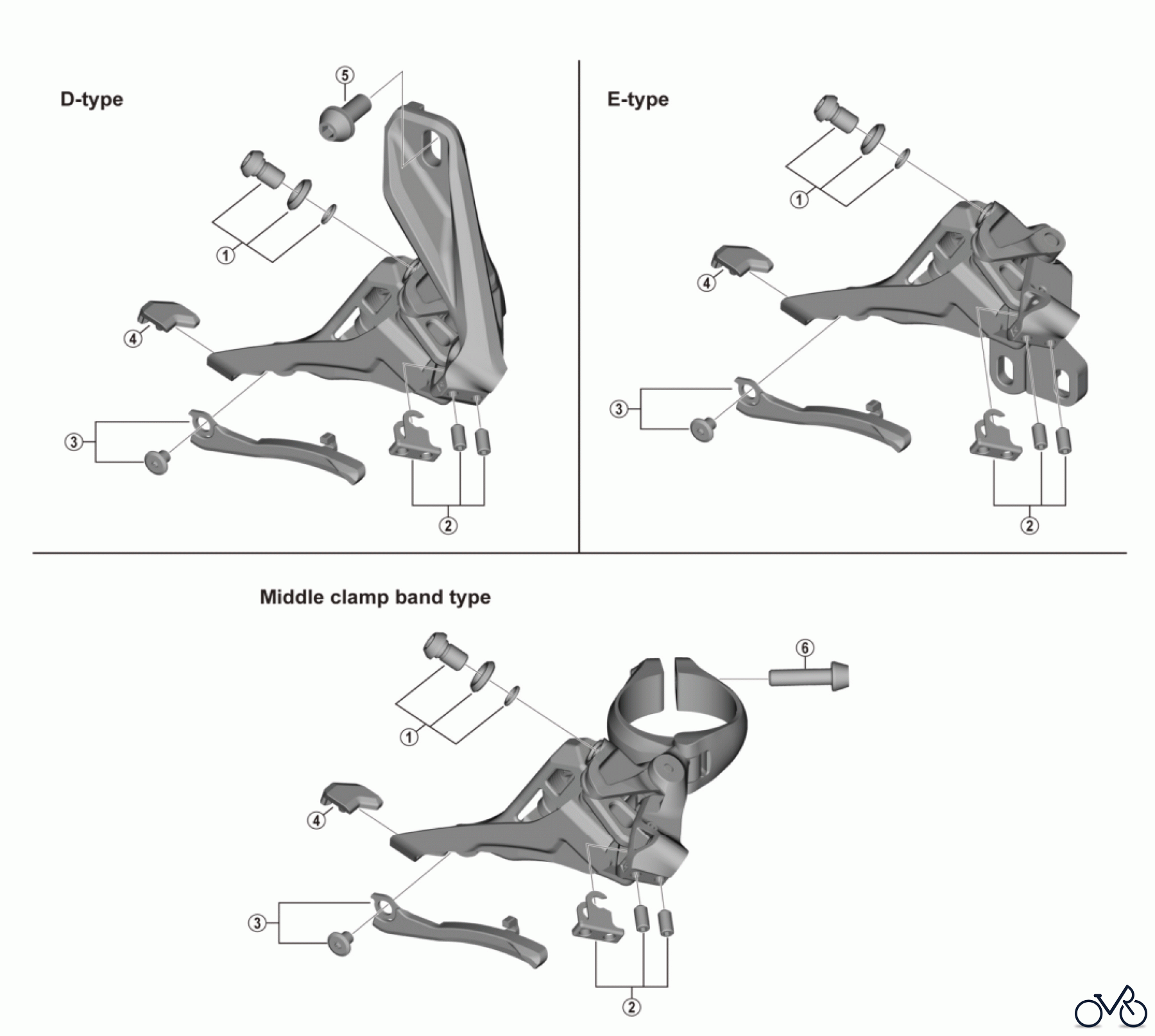

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-M8100 DEORE XT SIDE SWING Front Derailleur (2x12-speed). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-5S898020 Cable Fixing Bolt Unit (M6 x 9.2) Y5S898020
2 Shimano Stroke Adjust Screws (M4 x 8) & Plate Y-5R198020 Stroke Adjust Screws (M4 x 8) & Plate Y5R198020
3 Y-2CT98020 Chain Catcher Unit Y2CT98020
4 Y-5RC08000 Rubber Pad Y5RC08000
5 Y-5S415000 Clamp Bolt (M6 x 14.5) Y5S415000
6 Y-5S207000 Clamp Bolt (M5 x 18.5) Y5S207000
