Shimano FC-M8150 Kurbelarmset SHIMANO STEPS DEORE XT

FC-M8150 Kurbelarmset SHIMANO STEPS DEORE XT FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-M8150 Kurbelarmset SHIMANO STEPS DEORE XT

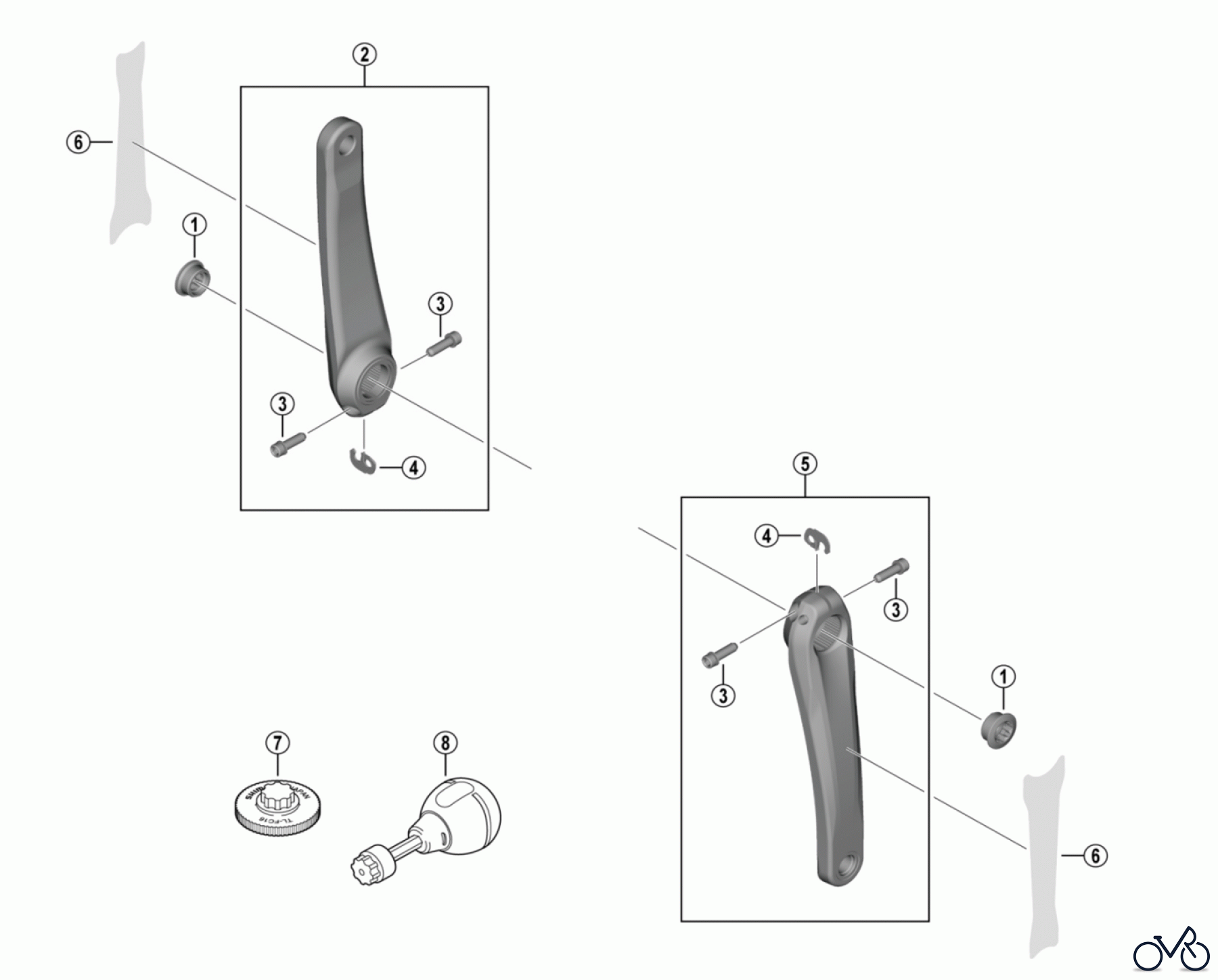

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-M8150 Kurbelarmset SHIMANO STEPS DEORE XT. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0J620000	Crank Arm Fixing Screw Y0J620000
2	Y-0KV98010	Left Hand Crank Arm Unit 160 mm Y0KV98010
2	Y-0KV98020	Left Hand Crank Arm Unit 165 mm Y0KV98020
2	Y-0KV98030	Left Hand Crank Arm Unit 170 mm Y0KV98030
2	Y-0KV98040	Left Hand Crank Arm Unit 175 mm Y0KV98040
3	Y-1GS21000	Clamp Screw with Washer (M6 x 21) Y1GS21000
4	Y-0J698050	Plate Y0J698050
5	Y-0KV98050	Right Hand Crank Arm Unit 160 mm Y0KV98050
5	Y-0KV98060	Right Hand Crank Arm Unit 165 mm Y0KV98060
5	Y-0KV98070	Right Hand Crank Arm Unit 170 mm Y0KV98070
5	Y-0KV98080	Right Hand Crank Arm Unit 175 mm Y0KV98080
6	Y-0KV98090	Protection Sticker for Crank Arm 160 mm (2 pcs.) Y0KV98090
6	Y-0J698070	Protection Sticker for Crank Arm 165/170 mm (2 pcs.) Y0J698070
6	Y-0J698080	Protection Sticker for Crank Arm 175/180 mm (2 pcs.) Y0J698080
7	Y-13009220	TL-FC16 HOLLOWTECH II Crank Arm Tool Y13009220
8	Y-13098280	TL-FC18 HOLLOWTECH II Crank Arm Tool Y13098280
