Shimano FC-EM900 Kurbelarmset SHIMANO STEPS

FC-EM900 Kurbelarmset SHIMANO STEPS FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-EM900 Kurbelarmset SHIMANO STEPS

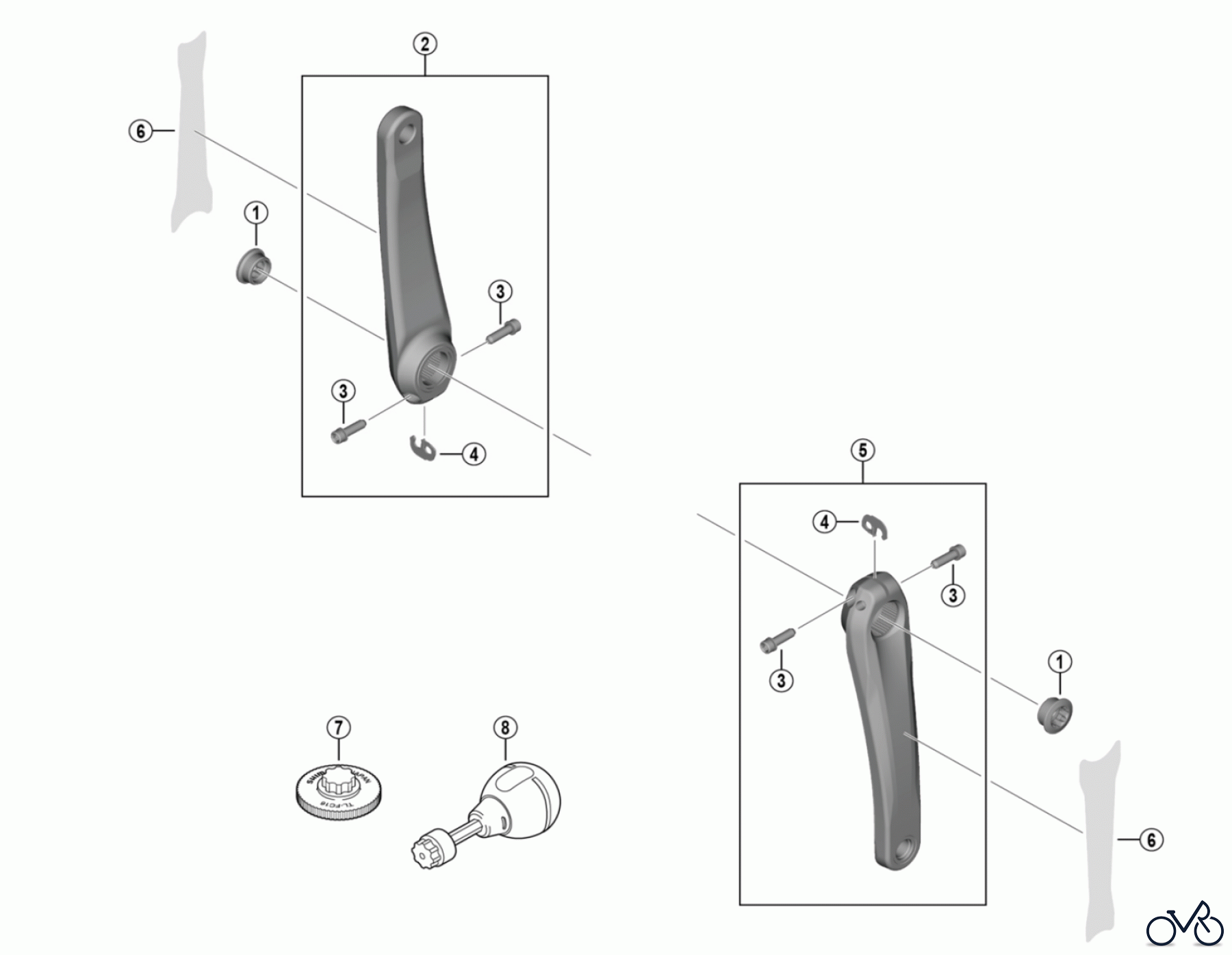

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-EM900 Kurbelarmset SHIMANO STEPS. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Shimano Crank Arm Fixing Screw Y-0J620000 Crank Arm Fixing Screw Y0J620000
2 Y-0MY98010 Left Hand Crank Arm Unit 160 mm Y0MY98010
2 Y-0MY98020 Left Hand Crank Arm Unit 165 mm Y0MY98020
2 Y-0MY98030 Left Hand Crank Arm Unit 170 mm Y0MY98030
2 Y-0MY98040 Left Hand Crank Arm Unit 175 mm Y0MY98040
3 Shimano Clamp Screw with Washer (M6 x 21) Y-1GS21000 Clamp Screw with Washer (M6 x 21) Y1GS21000
4 Y-0J698050 Plate Y0J698050
5 Y-0MY98050 Right Hand Crank Arm Unit 160 mm Y0MY98050
5 Y-0MY98060 Right Hand Crank Arm Unit 165 mm Y0MY98060
5 Y-0MY98070 Right Hand Crank Arm Unit 170 mm Y0MY98070
5 Y-0MY98080 Right Hand Crank Arm Unit 175 mm Y0MY98080
6 Y-0KV98090 Protection Sticker for Crank Arm 160 mm (2 pcs.) Y0KV98090
6 Y-0J698070 Protection Sticker for Crank Arm 165/170 mm (2 pcs.) Y0J698070
6 Y-0J698080 Protection Sticker for Crank Arm 175/180 mm (2 pcs.) Y0J698080
7 Y-13009220 TL-FC16 HOLLOWTECH II Crank Arm Tool Y13009220
8 Y-13098280 TL-FC18 HOLLOWTECH II Crank Arm Tool Y13098280
