Shimano BR-M6100 DEORE Disc Brake

BR-M6100 DEORE Disc Brake BR Brake - Bremse

Shimano BR Brake - Bremse BR-M6100 DEORE Disc Brake

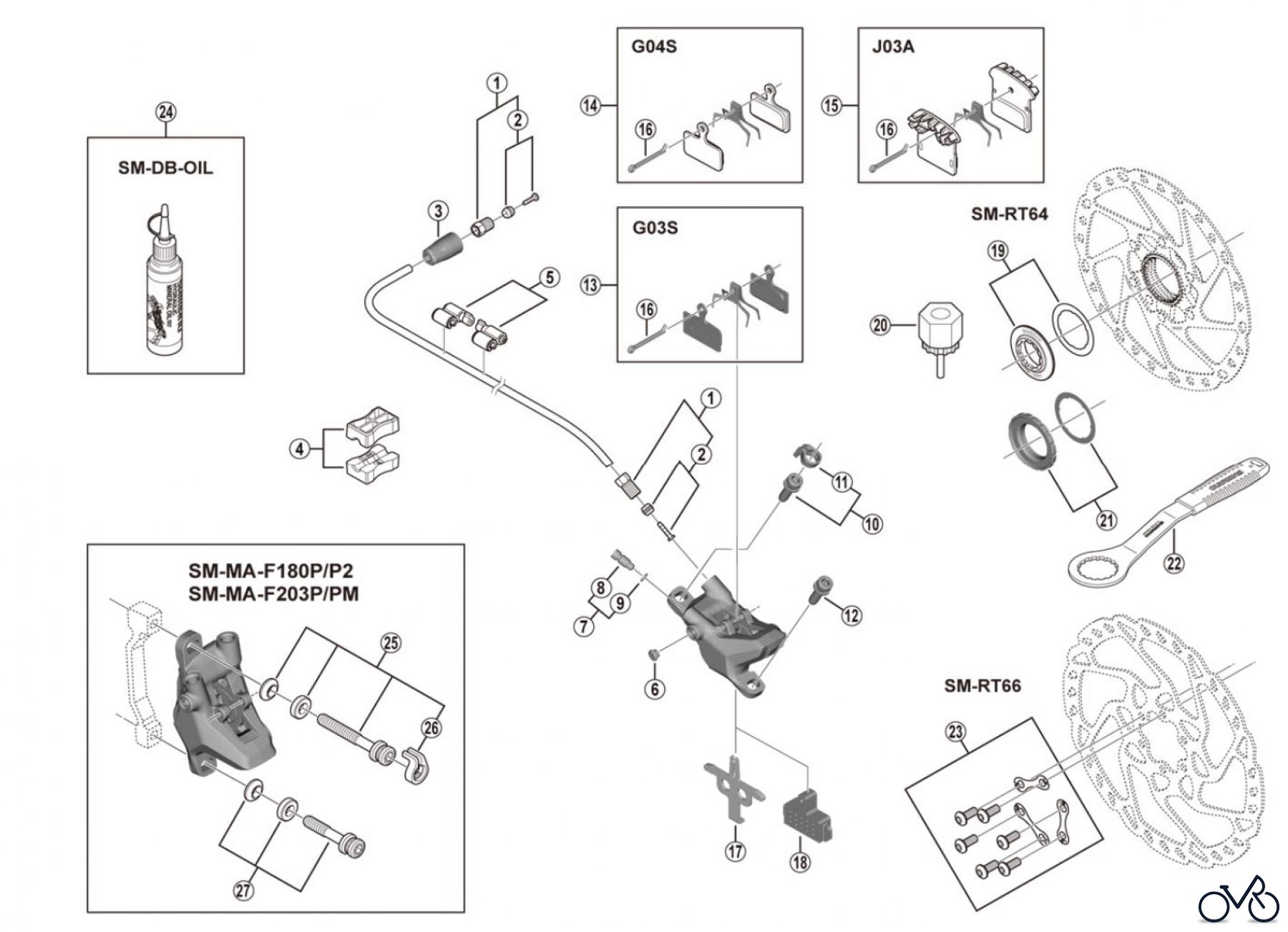

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M6100 DEORE Disc Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Shimano Flare nut unit A Y-8JA98010 Flare nut unit A Y8JA98010
2 Shimano Olive and connecter insert A Y-8JA98020 Olive and connecter insert A Y8JA98020
3 Shimano Cover A Y-8WM14000 Cover A Y8WM14000
4 Shimano TL-BH61 Shimano original tool (2 pcs.) A Y-8H198030 TL-BH61 Shimano original tool (2 pcs.) A Y8H198030
5 Y-83098040 SM-HANG Hose supporter A and B A Y83098040
6 Shimano Bleed boss cap Y-88F06000 Bleed boss cap Y88F06000
7 Shimano Bleed screw and O-ring Y-8LS98030 Bleed screw and O-ring Y8LS98030
8 Shimano Bleed screw Y-8VZ07000 Bleed screw Y8VZ07000
9 Shimano O-ring Y-8B511001 O-ring Y8B511001
10 Shimano Caliper fixing screw (M6 x 18.7) and snap ring A Y-2F398020 Caliper fixing screw (M6 x 18.7) and snap ring A Y2F398020
11 Shimano Snap ring A Y-2RT06000 Snap ring A Y2RT06000
12 Y-8C509020 Caliper fixing screw (M6 x 18.7) A Y8C509020
13 Shimano G03S Resin pad and spring with split pin Y-8WW98030 G03S Resin pad and spring with split pin Y8WW98030
14 Y-8MY98010 G04S Metal pad and spring with split pin Y8MY98010
15 Y-8Z298010 J03A Resin pad with fin and spring with split pin Y8Z298010
16 Shimano Split pin Y-8DB06100 Split pin Y8DB06100
17 Shimano Pad spacer Y-8PE03000 Pad spacer Y8PE03000
18 Shimano Bleeding spacer B Y-8J712100 Bleeding spacer B Y8J712100
19 Y-8KU98010 Lock ring (black) and washer B Y8KU98010
20 Shimano TL-LR15 Lock ring removal tool A Y-12009230 TL-LR15 Lock ring removal tool A Y12009230
21 Shimano Lock ring and washer (external spline type) A Y-24698030 Lock ring and washer (external spline type) A Y24698030
22 Shimano TL-FC36 Lock ring removal tool A Y-13098000 TL-FC36 Lock ring removal tool A Y13098000
23 Y-8KT98010 Rotor fixing screw and lock washer Y8KT98010
24 Y-83998020 Mineral oil (100 ml) A Y83998020
24 Y-83998030 Mineral oil (500 ml) A Y83998030
25 Shimano Caliper fixing screw unit (M6 x 37.9) for SM-MA-F180P/P2 A Y-2RT98020 Caliper fixing screw unit (M6 x 37.9) for SM-MA-F180P/P2 A Y2RT98020
25 Y-2RT98030 Caliper fixing screw unit (M6 x 40.2) for SM-MA-F203P/PM A Y2RT98030
26 Shimano Snap ring A Y-2RT07000 Snap ring A Y2RT07000
27 Shimano Caliper fixing screw unit (M6 x 32.1) for SM-MA-F180P/P2 A Y-8G498030 Caliper fixing screw unit (M6 x 32.1) for SM-MA-F180P/P2 A Y8G498030
27 Shimano Caliper fixing screw unit (M6 x 34.4) for SM-MA-F203P/PM Y-8J498020 Caliper fixing screw unit (M6 x 34.4) for SM-MA-F203P/PM Y8J498020
