Shimano BR-M6120 Deore Scheibenbremse

BR-M6120 Deore Scheibenbremse BR Brake - Bremse

Shimano BR Brake - Bremse BR-M6120 Deore Scheibenbremse

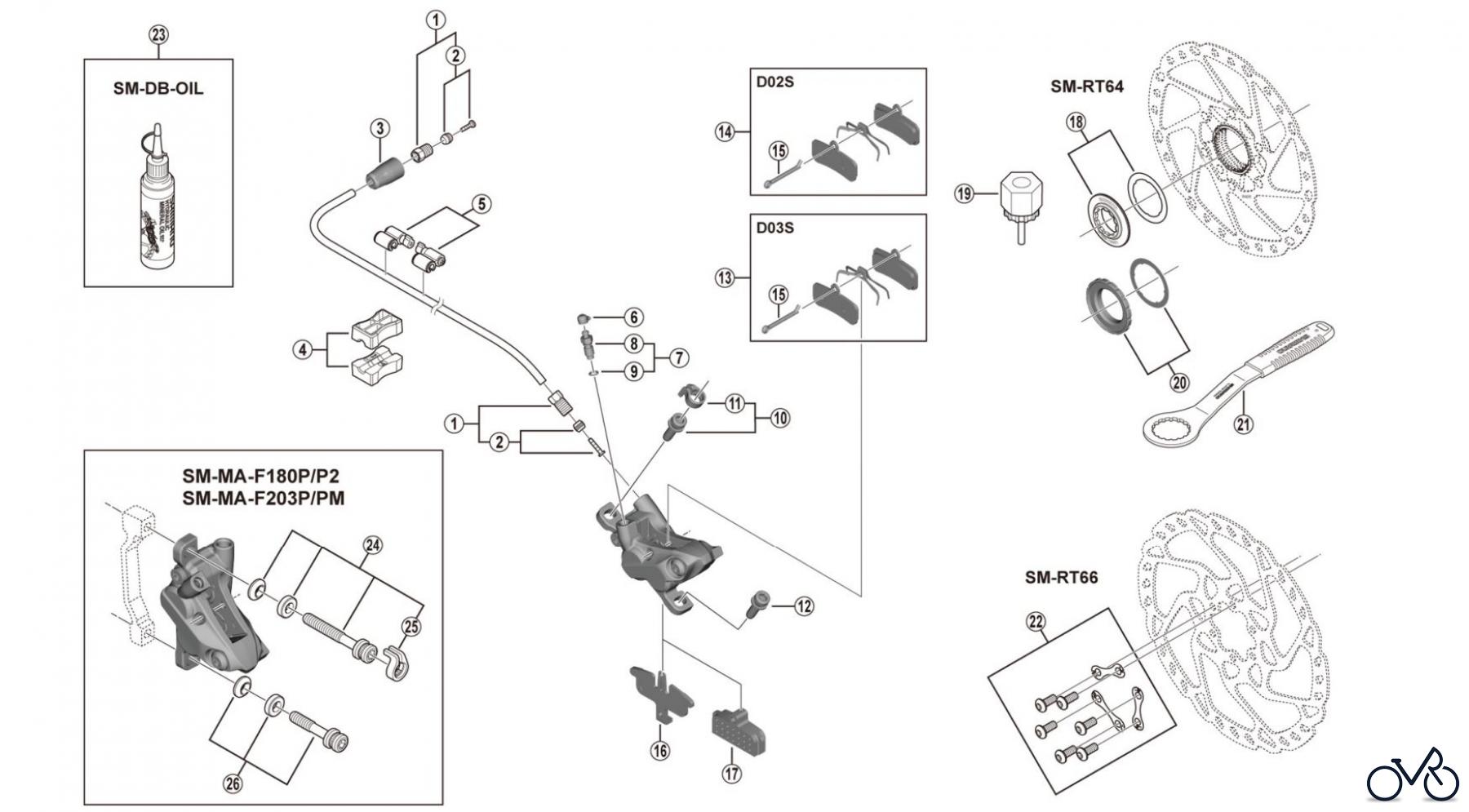

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M6120 Deore Scheibenbremse. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Shimano Flare nut unit Y-8JA98010 Flare nut unit Y8JA98010
2 Shimano Olive and connecter insert Y-8JA98020 Olive and connecter insert Y8JA98020
3 Shimano Cover Y-8WM14000 Cover Y8WM14000
4 Shimano TL-BH61 Shimano original tool (2 pcs.) Y-8H198030 TL-BH61 Shimano original tool (2 pcs.) Y8H198030
5 Y-83098040 SM-HANG Hose supporter Y83098040
6 Shimano Bleed nipple cap Y-8B214000 Bleed nipple cap Y8B214000
7 Y-8G498010 Bleed nipple and seal ring Y8G498010
8 Y-8CL24100 Bleed nipple Y8CL24100
9 Shimano O-ring Y-8B511001 O-ring Y8B511001
10 Shimano Caliper fixing screw (M6 x 18.7) and snap ring Y-2F398020 Caliper fixing screw (M6 x 18.7) and snap ring Y2F398020
11 Shimano Snap ring Y-2RT06000 Snap ring Y2RT06000
12 Y-8C509020 Caliper fixing screw (M6 x 18.7) Y8C509020
13 Y-1XM98010 D03S Resin pad and spring with split pin (pair) Y1XM98010
13 Y-1XM98011 D03S Resin pad and spring with split pin (25 pairs) Y1XM98011
14 Y-8FF98010 D02S Metal pad and spring with split pin (pair) Y8FF98010
15 Shimano Split pin Y-8DB06100 Split pin Y8DB06100
16 Y-1Y003000 Pad spacer Y1Y003000
17 Shimano Bleeding spacer Y-8FF19000 Bleeding spacer Y8FF19000
18 Y-8KU98010 Lock ring (black) and washer Y8KU98010
19 Shimano TL-LR15 Lock ring removal tool Y-12009230 TL-LR15 Lock ring removal tool Y12009230
20 Shimano Lock ring and washer (external spline type) Y-24698030 Lock ring and washer (external spline type) Y24698030
21 Shimano TL-FC36 Lock ring removal tool Y-13098000 TL-FC36 Lock ring removal tool Y13098000
22 Y-8KT98010 Rotor fixing screw and lock washer Y8KT98010
23 Y-83998020 Mineral oil (100 ml) Y83998020
23 Y-83998030 Mineral oil (500 ml) Y83998030
24 Shimano Caliper fixing screw unit (M6 x 37.9) for SM-MA-F180P/P2 Y-2RT98020 Caliper fixing screw unit (M6 x 37.9) for SM-MA-F180P/P2 Y2RT98020
24 Y-2RT98030 Caliper fixing screw unit (M6 x 40.2) for SM-MA-F203P/PM Y2RT98030
25 Shimano Snap ring Y-2RT07000 Snap ring Y2RT07000
26 Shimano Caliper fixing screw unit (M6 x 32.1) for SM-MA-F180P/P2 Y-8G498030 Caliper fixing screw unit (M6 x 32.1) for SM-MA-F180P/P2 Y8G498030
26 Shimano Caliper fixing screw unit (M6 x 34.4) for SM-MA-F203P/PMY-8J498020 Caliper fixing screw unit (M6 x 34.4) for SM-MA-F203P/PM Y8J498020
