Shimano BR-M9110 XTR Scheibenbremse

BR-M9110 XTR Scheibenbremse BR Brake - Bremse

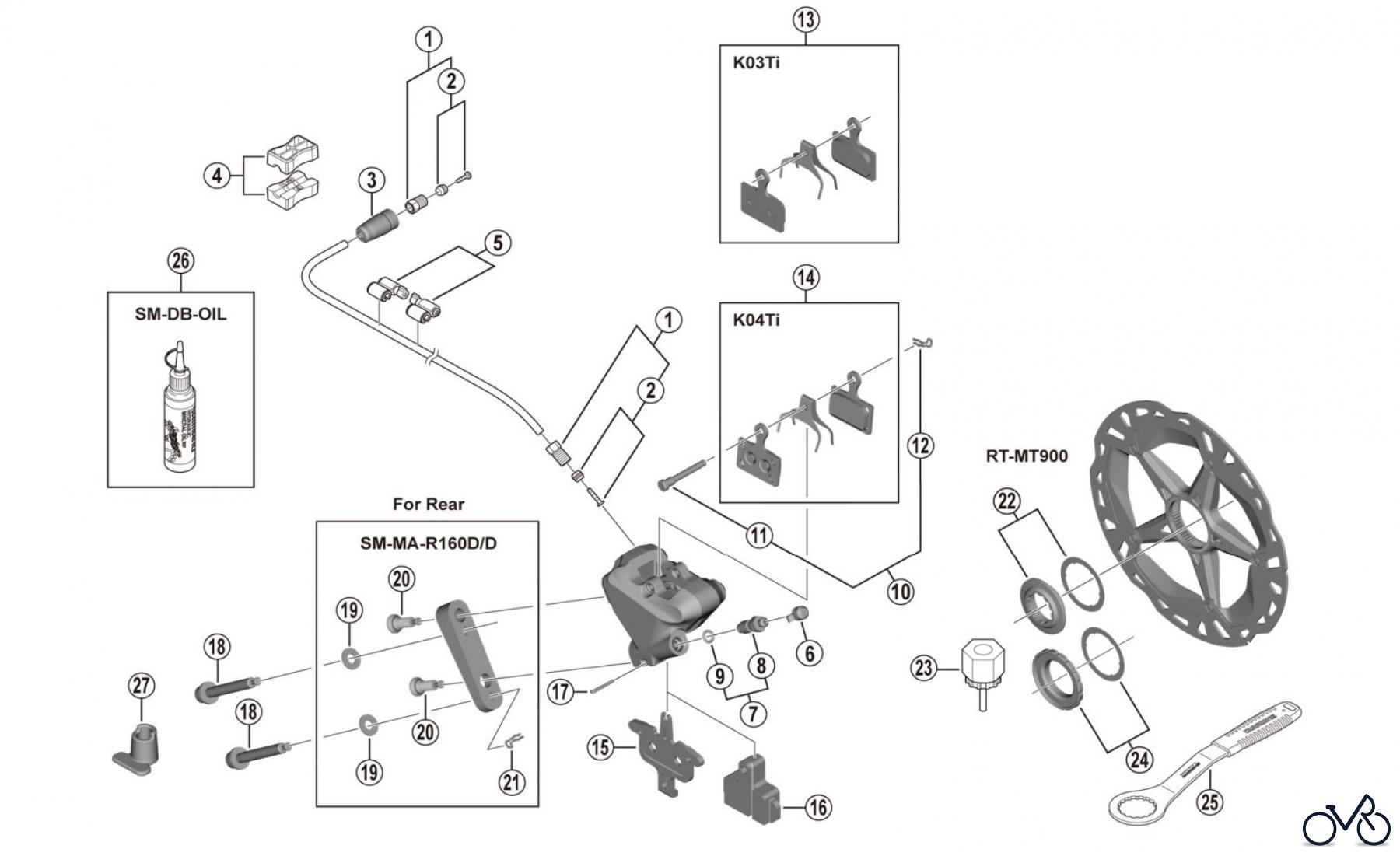

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M9110 XTR Scheibenbremse. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-8JA98010	Flare Nut Unit Y8JA98010
2	Y-8JA98020	Olive & Connecter Insert Y8JA98020
3	Y-1XJ16000	Cover Y1XJ16000
4	Y-8H198030	TL-BH61 Shimano original tool (2 pcs.) Y8H198030
5	Y-83098040	SM-HANG Hose Supporter A & B Y83098040
6	Y-8B214000	Bleed Nipple Cap Y8B214000
7	Y-8CL98050	Bleed Nipple & Seal Ring Y8CL98050
8	Y-8CL24200	Bleed Nipple Y8CL24200
9	Y-8B511001	O-Ring for Bleed Nipple Y8B511001
10	Y-8J798060	Pad Axle & Snap Retainer Y8J798060
11	Y-8J710000	Pad Axle Y8J710000
12	Y-8J716000	Snap Retainer Y8J716000
13	Y-1XC98010	Resin Pad (K03Ti) & Spring Y1XC98010
14	Y-8PU98020	Metal Pad (K04Ti) & Spring Y8PU98020
15	Y-8N218000	Pad Spacer Y8N218000
16	Y-8N219000	Bleeding Spacer Y8N219000
17	Y-8N207000	Screw Fixing Pin Y8N207000
18	Y-8PU08010	Caliper Fixing Screw C for 20 mm Rear mount thickness Y8PU08010
18	Y-8PU08020	Caliper Fixing Screw C for 25 mm Rear mount thickness Y8PU08020
18	Y-8PU08030	Caliper Fixing Screw C for 30 mm Rear mount thickness Y8PU08030
19	Y-8NU02000	Washer for R160 Adapter Y8NU02000
20	Y-8N206000	Caliper Fixing Screw B Y8N206000
21	Y-8NU03000	Snap Retainer Y8NU03000
22	Y-8K198010	Lock Ring & Washer Y8K198010
23	Y-12009230	TL-LR15 Lock Ring Removal Tool Y12009230
24	Y-26L98030	Lock Ring & Washer (External spline type) Y26L98030
25	Y-13098000	TL-FC36 Lock Ring Removal Tool Y13098000
26	Y-83998020	Mineral Oil (100 ml) Y83998020
26	Y-83998030	Mineral Oil (500 ml) Y83998030
27	Y-8N221000	Screw Length Selector Y8N221000
