Shimano RD-M6100 12-Fach DEORE Rear Derailleur

RD-M6100 12-Fach DEORE Rear Derailleur RD Rear Derailleur - Schaltwerk

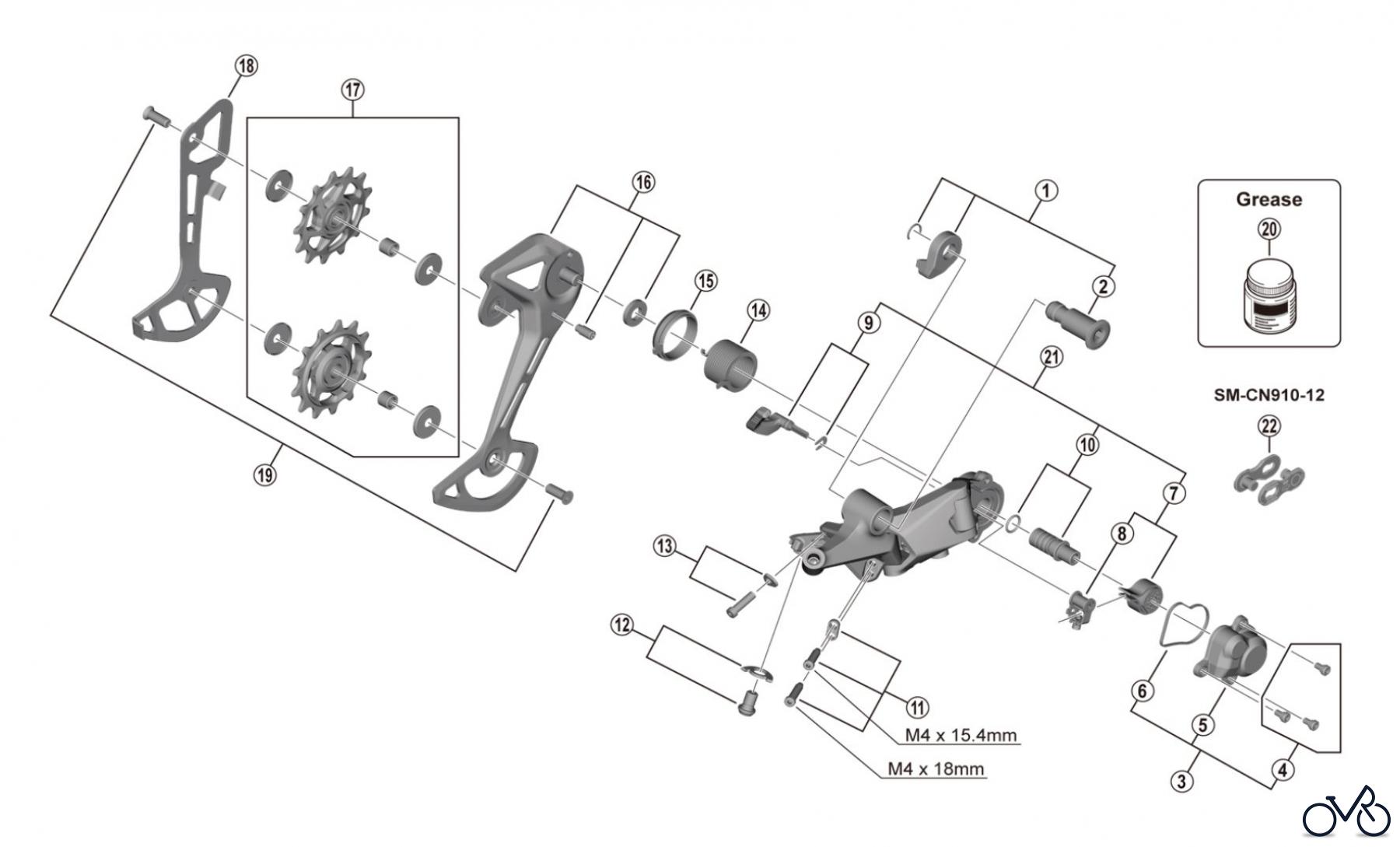

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-M6100 12-Fach DEORE Rear Derailleur. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-3HK98010	Bracket axle unit Y3HK98010
2	Y-3HK42000	B-axle Y3HK42000
3	Y-3HK98020	P-cover unit Y3HK98020
4	Y-5Y198070	P-cover screw set (3 pcs.) Y5Y198070
5	Y-3HK43000	P-cover Y3HK43000
6	Y-3FA63000	P-cover packing Y3FA63000
7	Y-3GF98040	Stabilizer unit and cam unit Y3GF98040
8	Y-3E498040	Cam unit Y3E498040
9	Y-3FA98040	Switch lever unit and fixing plate Y3FA98040
10	Y-5PV98060	P-axle and O-ring Y5PV98060
11	Y-3FW98050	Stroke adjusting screws and plate Y3FW98050
12	Y-3FW98060	Cable fixing screw and plate A Y3FW98060
13	Y-3FW98070	End adjust screw (M4 x 14.1) and plate Y3FW98070
14	Y-3FA55000	P-tension spring Y3FA55000
15	Y-3FA62000	P-seal ring Y3FA62000
16	Y-3HK98030	Outer plate assembly (SGS) Y3HK98030
17	Y-3FY98010	Tension and guide pulley set Y3FY98010
18	Y-3HK26000	Inner plate (SGS) Y3HK26000
19	Y-5V598140	Pulley screw 12.5 mm (2 pcs.) Y5V598140
20	Y-04121000	New grease for stabilizer (Net. 50 g) Y04121000
21	Y-3FA98100	Stabilizer kit unit Y3FA98100
22	I-SMCN91012A	SM-CN910-12 QUICK-LINK ISMCN91012A
