Shimano FC-M4100-2 DEORE Crankset 2x10

FC-M4100-2 DEORE Crankset 2x10 FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

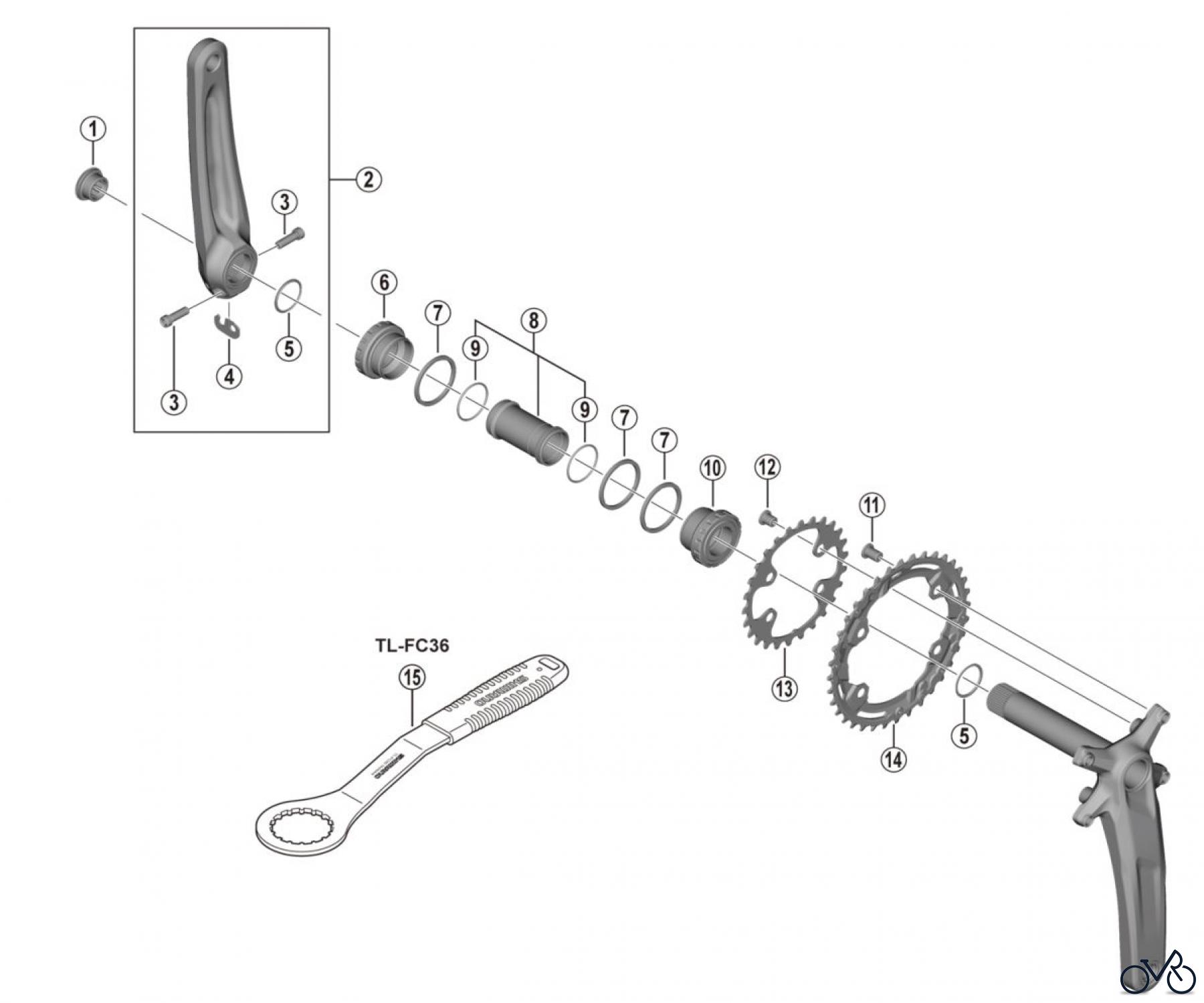

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-M4100-2 DEORE Crankset 2x10. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1F811100	Crank Arm Fixing Screw Y1F811100
2	Y-0LA98010	Left Hand Crank Arm Unit 170 mm Y0LA98010
2	Y-0LA98020	Left Hand Crank Arm Unit 175 mm Y0LA98020
3	Y-1GS00030	Clamp Screw (M6 x 19) Y1GS00030
4	Y-1FU98120	Plate Y1FU98120
5	Y-1F316000	Ring Y1F316000
6	Y-1RP98050	Left Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BB52) Y1RP98050
7	Y-1F813000	Spacer (2.5 mm) Y1F813000
8	Y-1J898060	Inner Cover & O-Ring Y1J898060
9	Y-1TF21000	O-Ring Y1TF21000
10	Y-1RP98060	Right Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BB52) Y1RP98060
11	Y-0LB98020	Gear Fixing Screw (M8 x 11.5 / 1 Unit = 4 pcs.) for FC-M4100-2 Y0LB98020
11	Y-1LV98060	Gear Fixing Screw (M8 x 8.5 / 1 Unit = 4 pcs.) for FC-M4100-B2 Y1LV98060
12	Y-1LV98060	Gear Fixing Screw (M8 x 8.5 / 1 Unit = 4 pcs.) Y1LV98060
13	Y-1WD26000	Chainring 26T-BF Y1WD26000
14	Y-0LE98010	Chainring 36T-BF Y0LE98010
15	Y-13098000	TL-FC36 Adapter Tool Y13098000
