Shimano FC-M6130-1 Deore Kurbelgarnitur 12-Fach

FC-M6130-1 Deore Kurbelgarnitur 12-Fach FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-M6130-1 Deore Kurbelgarnitur 12-Fach

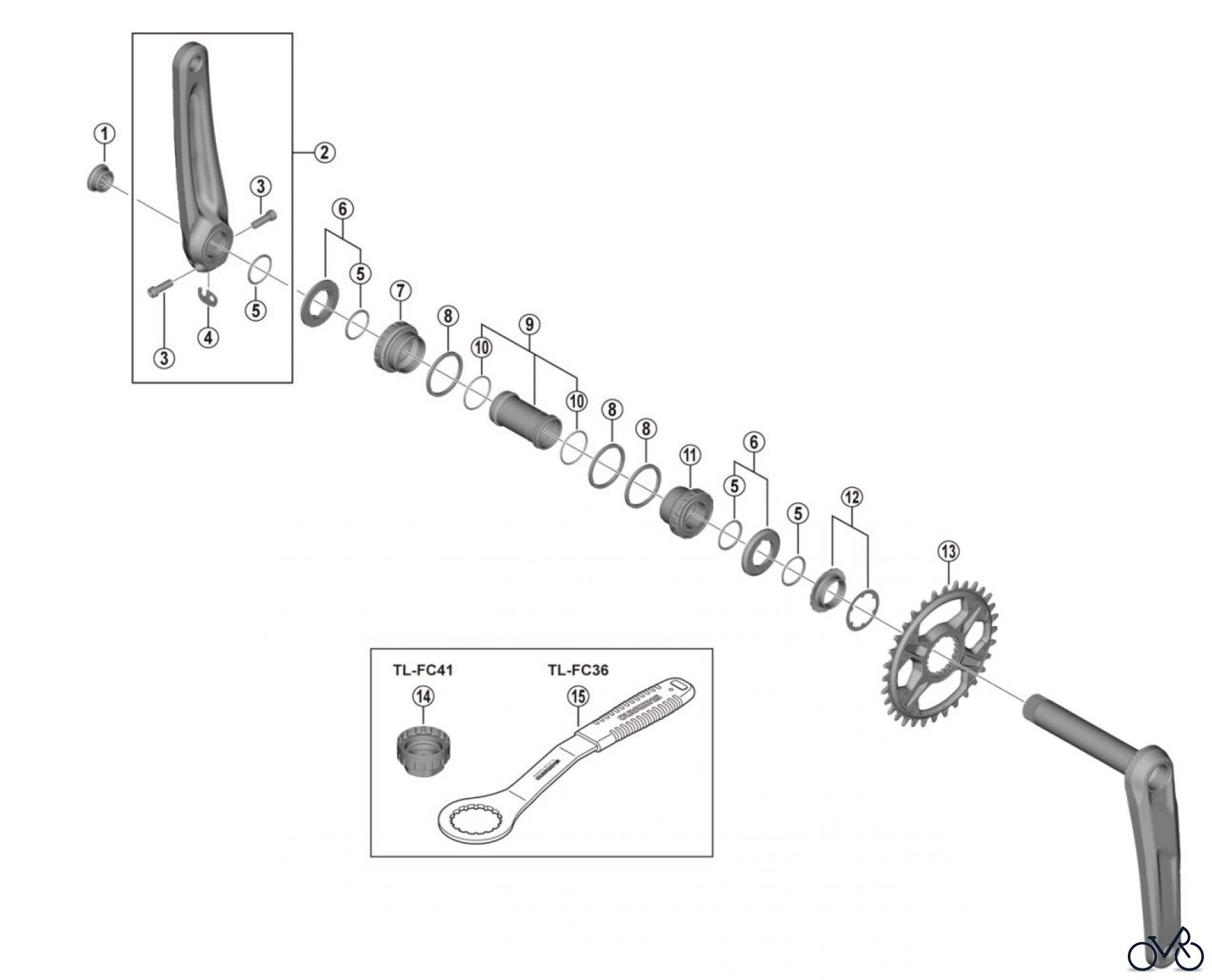

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-M6130-1 Deore Kurbelgarnitur 12-Fach. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Shimano Crank arm fixing screw Y-0J620000 Crank arm fixing screw Y0J620000
2 Y-0L198060 Left hand crank arm unit 165 mm Y0L198060
2 Y-0L198010 Left hand crank arm unit 170 mm Y0L198010
2 Y-0L198020 Left hand crank arm unit 175 mm Y0L198020
3 Shimano Clamp screw (M6 x 19) Y-1GS00030 Clamp screw (M6 x 19) Y1GS00030
4 Y-0J698050 Plate Y0J698050
5 Shimano Ring Y-1F316000 Ring Y1F316000
6 Y-0LY98010 Spacer and ring Y0LY98010
7 Shimano Left hand adapter (B.C.1.37" x 24T) english thread (SM-BB52) Y-1RP98050 Left hand adapter (B.C.1.37" x 24T) english thread (SM-BB52) Y1RP98050
8 Shimano Spacer (2.5 mm) Y-1F813000 Spacer (2.5 mm) Y1F813000
9 Shimano Inner cover and O-ring Y-1J898060 Inner cover and O-ring Y1J898060
10 Shimano O-ring Y-1TF21000 O-ring Y1TF21000
11 Y-1RP98060 Right hand adapter (B.C.1.37" x 24T) english thread (SM-BB52) Y1RP98060
12 Y-0L198030 Lock ring and washer Y0L198030
13 Y-0L198040 Chainring 30T Y0L198040
13 Y-0L198050 Chainring 32T Y0L198050
14 Y-13098720 TL-FC41 Front chainring direct mount tool Y13098720
15 Shimano TL-FC36 Adapter toolY-13098000 TL-FC36 Adapter tool Y13098000
