Shimano FD-M5100 DEORE SIDE SWING Front Derailleur

FD-M5100 DEORE SIDE SWING Front Derailleur FD Front Derailleur - Umwerfer

Shimano FD Front Derailleur - Umwerfer FD-M5100 DEORE SIDE SWING Front Derailleur

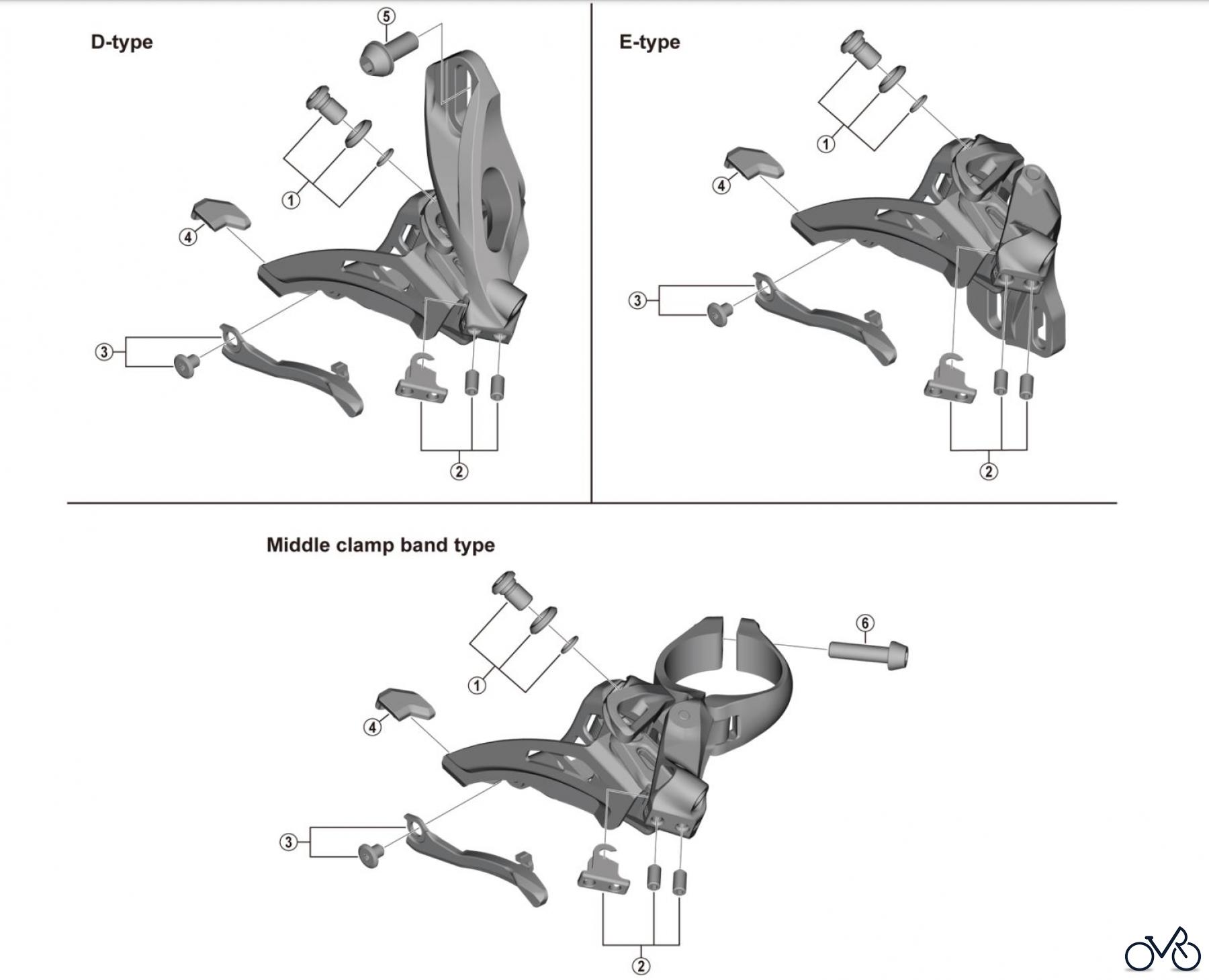

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-M5100 DEORE SIDE SWING Front Derailleur. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-5S898020 Cable Fixing Screw Unit (M6 x 9.2) Y5S898020
2 Shimano Stroke Adjust Screws (M4 x 8) & Plate Y-5R198020 Stroke Adjust Screws (M4 x 8) & Plate Y5R198020
3 Y-5ZB98010 Chain Catcher Unit Y5ZB98010
4 Y-5RC08000 Rubber Pad B Y5RC08000
5 Y-5S415000 Clamp Screw (M6 x 14.5) Y5S415000
6 Y-5S207000 Clamp Screw (M5 x 18.5) Y5S207000
