Shimano BL-M8100 DEORE XT Brake Lever

BL-M8100 DEORE XT Brake Lever BL Brake Lever - Bremshebel

Shimano BL Brake Lever - Bremshebel BL-M8100 DEORE XT Brake Lever

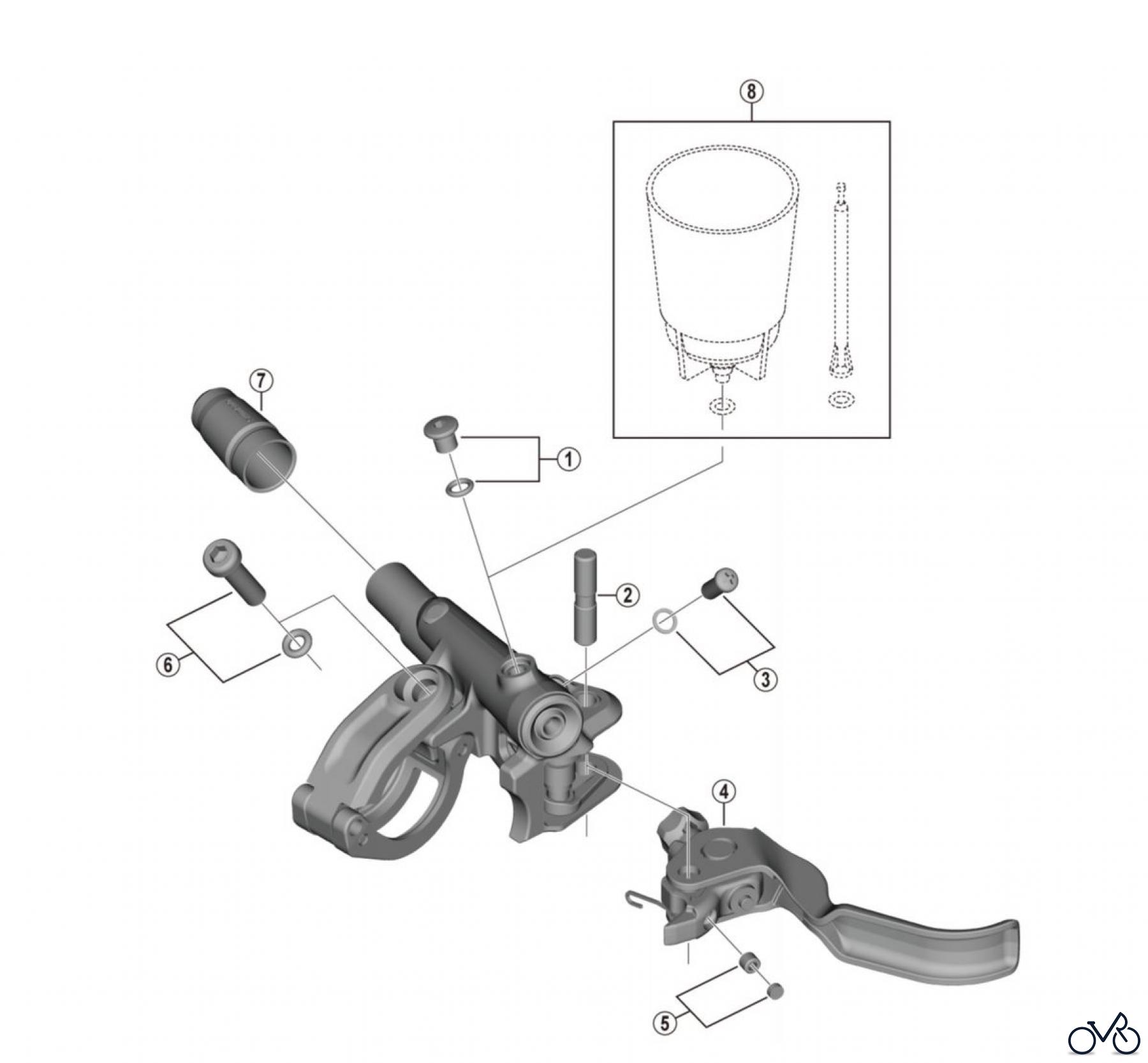

Here you will find the spare parts drawing for Shimano BL Brake Lever - Bremshebel BL-M8100 DEORE XT Brake Lever. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Shimano Bleed Screw (M5 x 4.7) & O-Ring B A Y-8V398010 Bleed Screw (M5 x 4.7) & O-Ring B A Y8V398010
2 Shimano Lever Axle Y-8VC05000 Lever Axle Y8VC05000
3 Shimano Stroke Adjust Screw & Sim (0.3 mm) Y-8VC98070 Stroke Adjust Screw & Sim (0.3 mm) Y8VC98070
4 Y-2RR98010 R.H. Lever Member Unit Y2RR98010
4 Y-2RR98020 L.H. Lever Member Unit Y2RR98020
5 Shimano Lever Axle Fixing Bolt & Cap A Y-8V398040 Lever Axle Fixing Bolt & Cap A Y8V398040
6 Y-2RR98030 Clamp Bolt (M5 x 18) & O-Ring Y2RR98030
7 Y-1XJ16000 Cover A A Y1XJ16000
8 Shimano Funnel & Oil StopperE-SMDISCBP Funnel & Oil Stopper ESMDISCBP
