Shimano FD-M7020 SLX SIDE SWING Front Derailleur

FD-M7020 SLX SIDE SWING Front Derailleur FD Front Derailleur - Umwerfer

Shimano FD Front Derailleur - Umwerfer FD-M7020 SLX SIDE SWING Front Derailleur

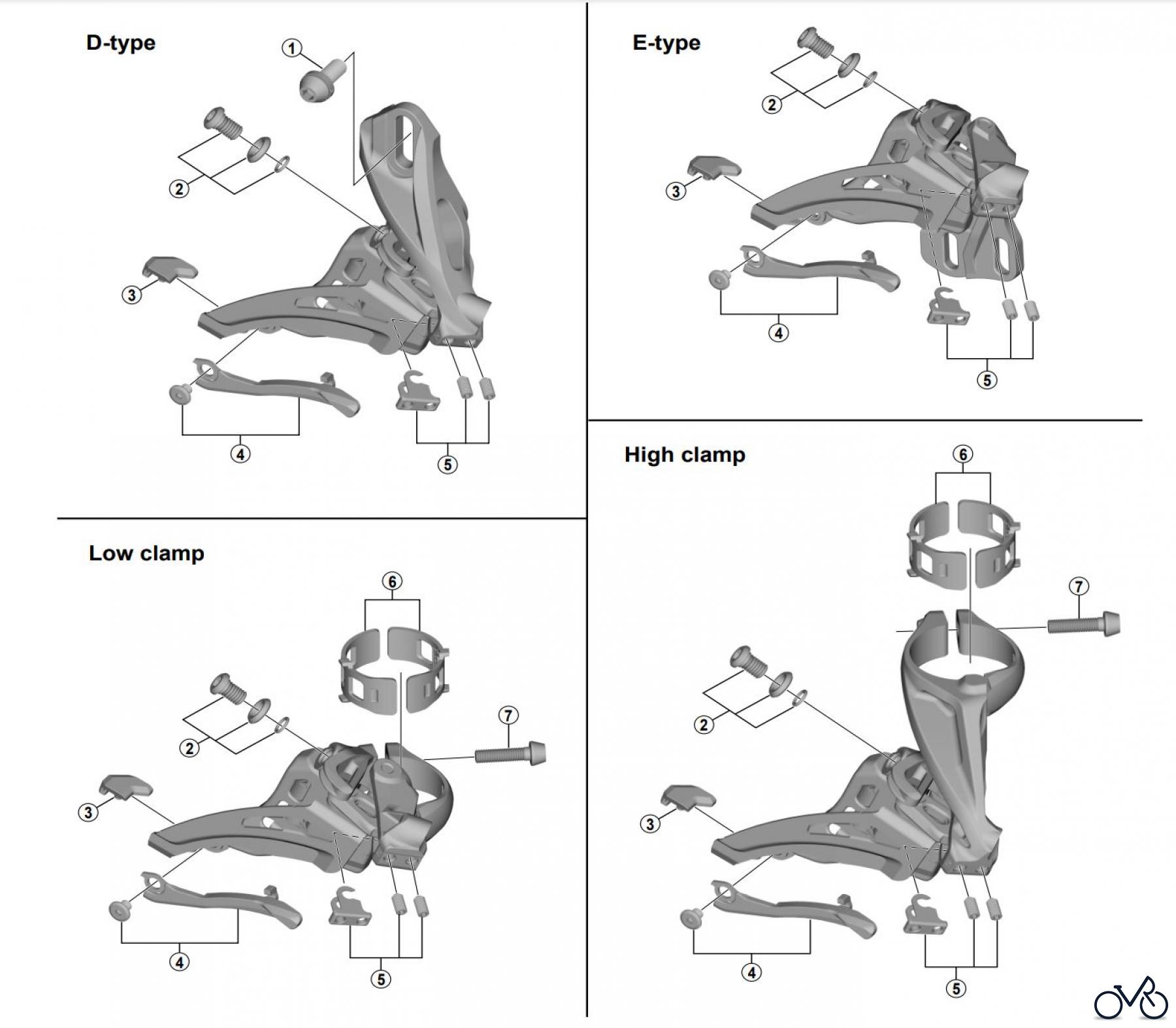

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-M7020 SLX SIDE SWING Front Derailleur. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-5S415000 Clamp Bolt (M6 x 14.5) A Y5S415000
2 Y-5S898020 Cable Fixing Bolt Unit (M6 x 9.2) A Y5S898020
3 Y-5RC08000 Rubber Pad B A Y5RC08000
4 Y-5ZB98010 Chain Catcher & Fixing Bolt (M4 x 5) Y5ZB98010
5 Shimano Stroke Adjust Screws (M4 x 8) & Plate A Y-5R198020 Stroke Adjust Screws (M4 x 8) & Plate A Y5R198020
6 Y-57Y98040 Clamp Band Adapters for M-size / Diameter 31.8 mm A Y57Y98040
7 Y-5S207000 Clamp Bolt (M5 x 18.5) Y5S207000
