Shimano FD-M7005 SLX Front Derailleur

FD-M7005 SLX Front Derailleur FD Front Derailleur - Umwerfer

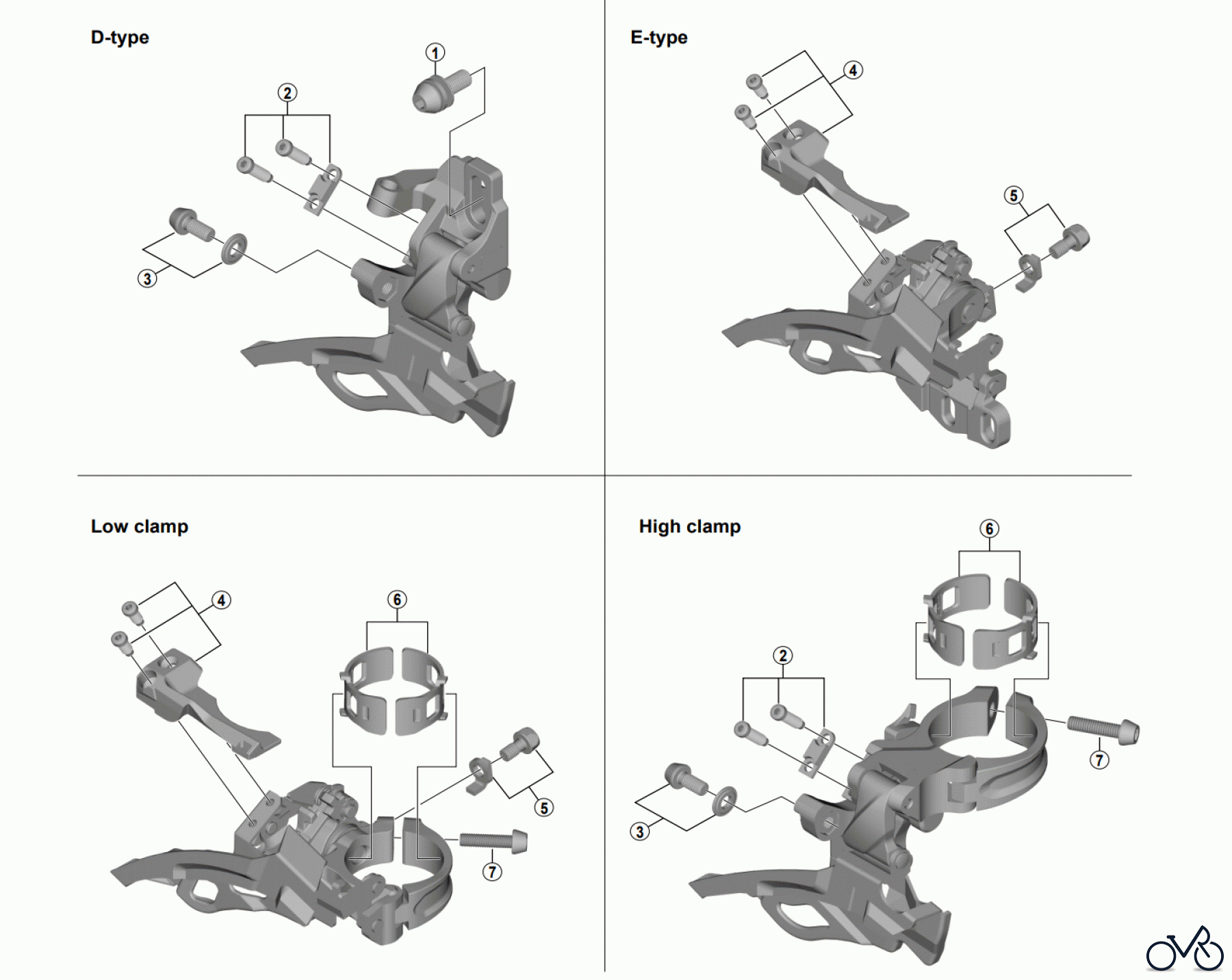

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-M7005 SLX Front Derailleur. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5S415000	Clamp Bolt (M6 x 14.5) B Y5S415000
2	Y-5S898010	Stroke Adjust Screws (M4 x 13.7) & Plate B Y5S898010
3	Y-5Z798010	Cable Fixing Bolt & Plate B Y5Z798010
4	Y-5Z798020	Stroke Adjust Screws (M4 x 8.5) & Plate B Y5Z798020
5	Y-5Z898010	Cable Fixing Bolt & Plate B Y5Z898010
6	Y-57Y98040	Clamp Band Adapters for M-size / Diameter 31.8 mm AAA Y57Y98040
7	Y-5S207000	Clamp Bolt (M5 x 18.5 Y5S207000
