Shimano FD-M773 DEORE XT Front Derailleur

FD-M773 DEORE XT Front Derailleur FD Front Derailleur - Umwerfer

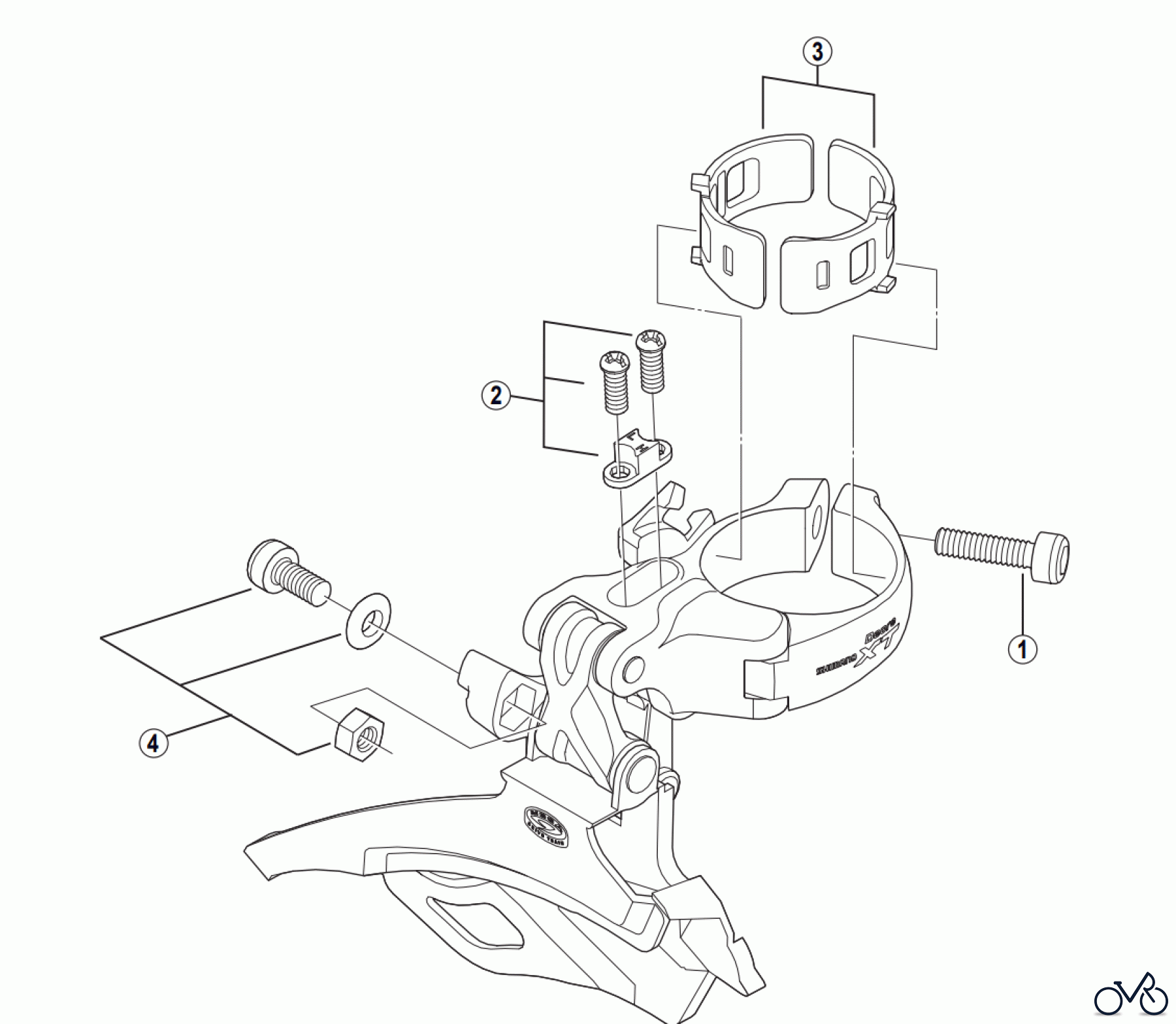

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-M773 DEORE XT Front Derailleur. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5BG07500	Clamp Bolt (M5 x 18.5) Y5BG07500
2	Y-5KE98010	Stroke Adjust Screws (M4 x 10) & Plate Y5KE98010
3	Y-57Y98010	SM-AD16S Clamp Band Adapters for S-size / Ø28.6 mm (1-1/8") Y57Y98010
3	Y-57Y98020	SM-AD16M Clamp Band Adapters for M-size / Ø31.8 mm (1-1/4") Y57Y98020
3	Y-57Y98030	SM-AD17S Clamp Band Adapters for S-size / Ø28.6 mm (1-1/8") Y57Y98030
3	Y-57Y98040	SM-AD17M Clamp Band Adapters for M-size / Ø31.8 mm (1-1/4" Y57Y98040
4	Y-5KE98020	Cable Fixing Bolt Unit (M5 x 10.5) Y5KE98020
