Shimano FD-M6025 DEORE Front Derailleur

FD-M6025 DEORE Front Derailleur FD Front Derailleur - Umwerfer

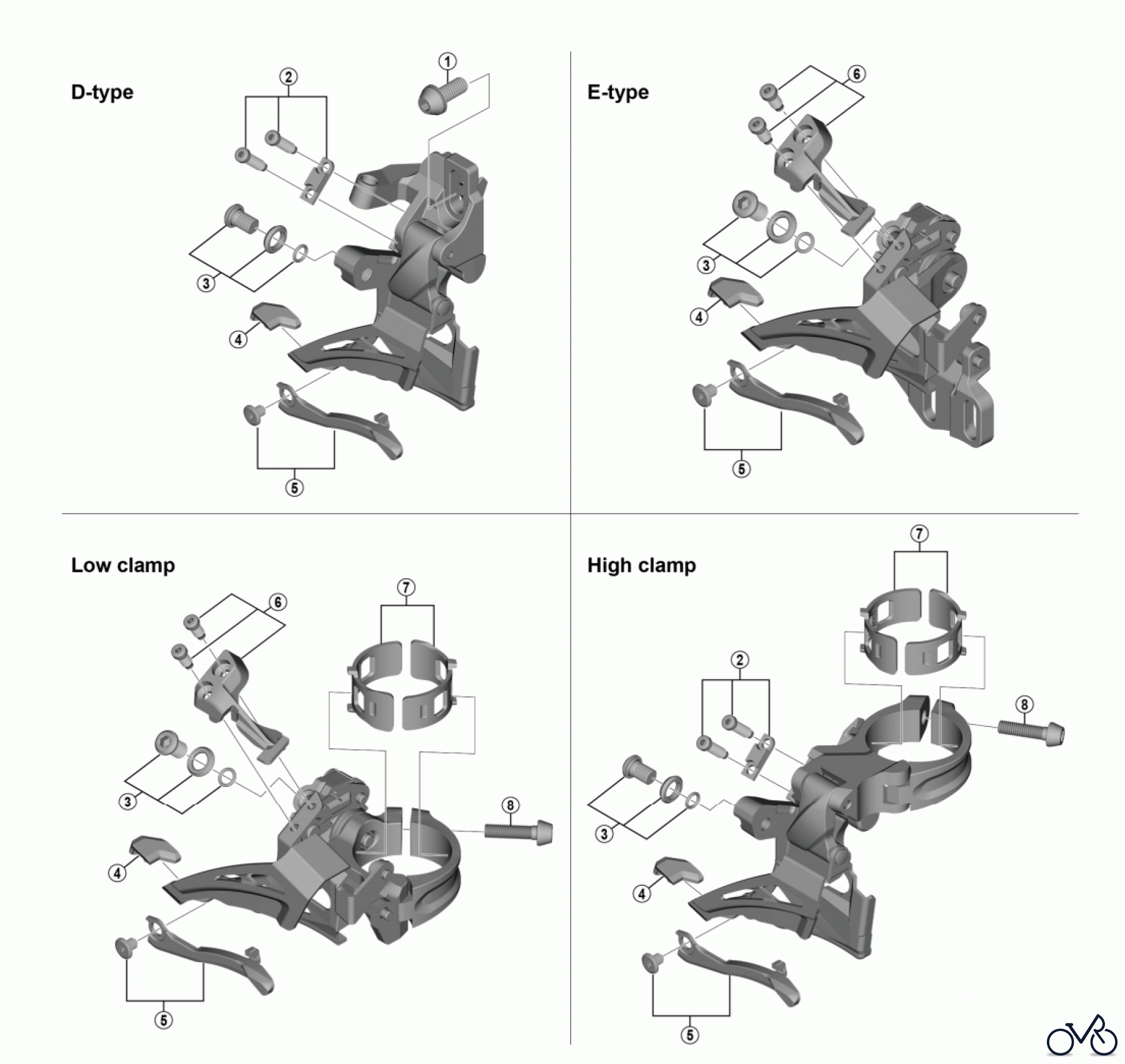

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-M6025 DEORE Front Derailleur. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5S415000	Clamp Bolt (M6 x 14.5) Y5S415000
2	Y-5S898010	Stroke Adjust Screws (M4 x 13.7) & Plate Y5S898010
3	Y-5S898020	Cable Fixing Bolt Unit Y5S898020
4	Y-5RC08000	Rubber Pad B Y5RC08000
5	Y-5ZB98010	Chain Catcher & Fixing Bolt (M4 x 5) Y5ZB98010
6	Y-5RD98010	Stroke Adjust Screws (M4 x 8.5) & Plate Y5RD98010
7	Y-57Y98040	Clamp Band Adapters for M-size / Diameter 31.8 mm Y57Y98040
8	Y-5S207000	Clamp Bolt (M5 x 18.5) Y5S207000
