Shimano FD-M616 DEORE Front Derailleur for Double

FD-M616 DEORE Front Derailleur for Double FD Front Derailleur - Umwerfer

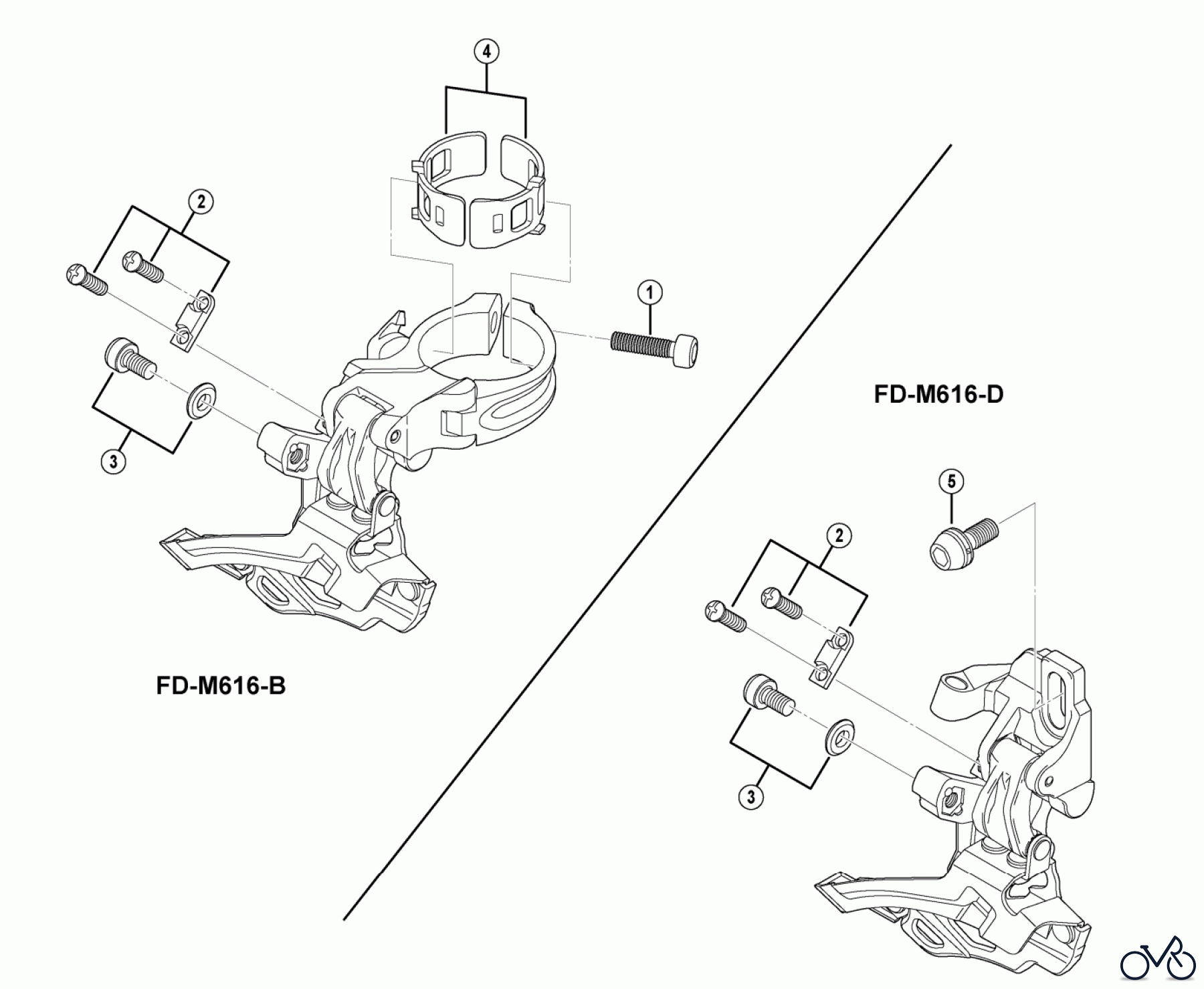

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-M616 DEORE Front Derailleur for Double. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5BG07000	Clamp Bolt (M5 x 18.5) A Y5BG07000
2	Y-5KD98010	Stroke Adjust Screws (M4 x 13.7) & Plate A Y5KD98010
3	Y-5KX98010	Cable Fixing Plate & Bolt (M5 x 10.5) A Y5KX98010
4	Y-57Y98030	Clamp Band Adapters for S-size / ?28.6 mm (1-1/8") A Y57Y98030
4	Y-57Y98040	Clamp Band Adapters for M-size / ?31.8 mm (1-1/4") A Y57Y98040
5	Y-5L408000	Clamp Bolt (M6) Y5L408000
