Shimano FD-M615-B DEORE Front Derailleur for Doubl

FD-M615-B DEORE Front Derailleur for Doubl FD Front Derailleur - Umwerfer

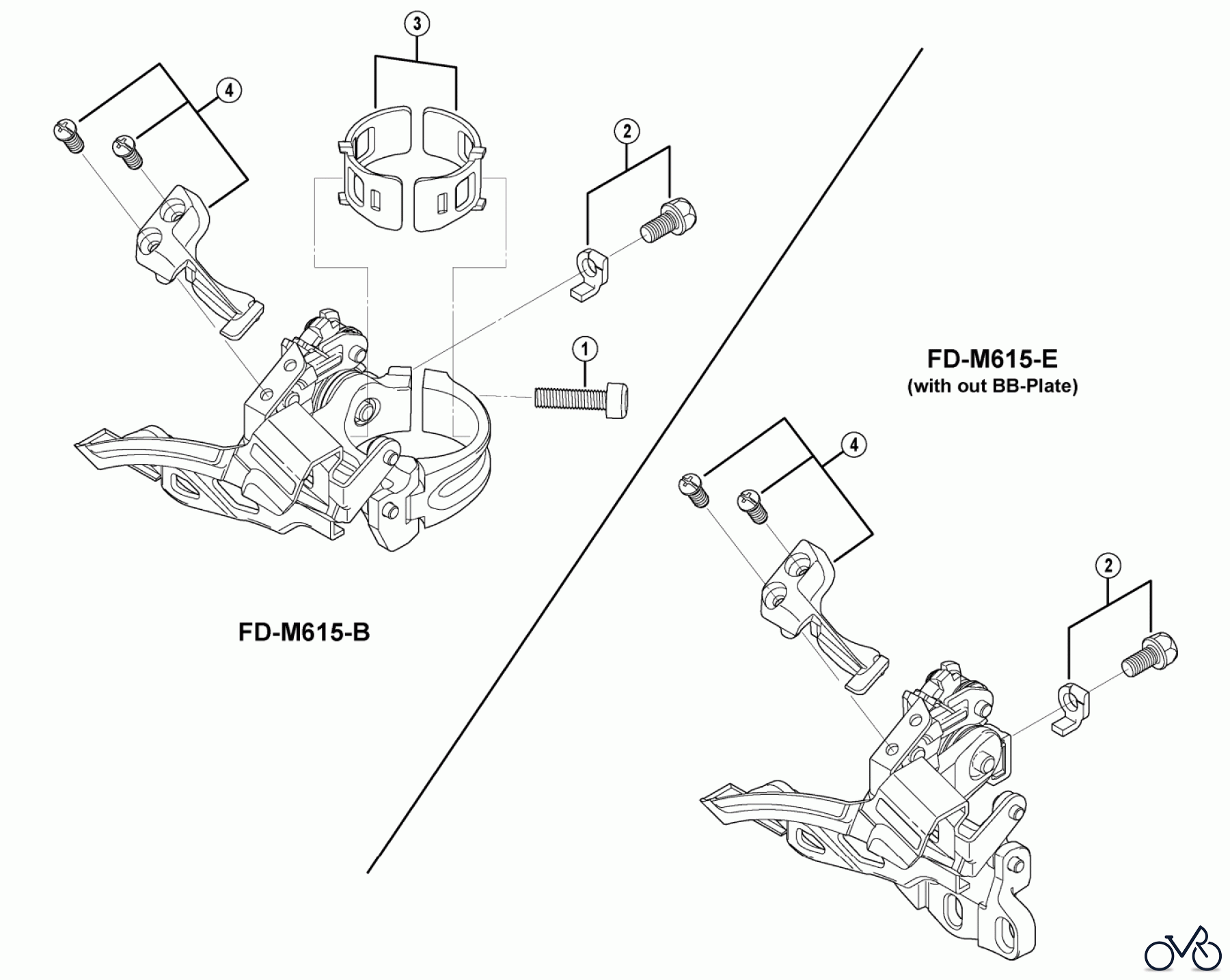

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-M615-B DEORE Front Derailleur for Doubl. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5BG07900	Clamp Bolt (M5 x 17.5) A Y5BG07900
2	Y-5MC98010	Cable Fixing Plate & Bolt (M5 x 9) A Y5MC98010
3	Y-57Y98030	SM-AD17S Clamp Band Adapters for S-size / ?28.6 mm (1-1/8") A Y57Y98030
3	Y-57Y98040	SM-AD17M Clamp Band Adapters for M-size / ?31.8 mm (1-1/4") A Y57Y98040
4	Y-5M898010	Stroke Adjust Screws (M4 x 8.5) & Plate Y5M898010
