Shimano BR-MT500 Scheibenbremse

BR-MT500 Scheibenbremse BR Brake - Bremse

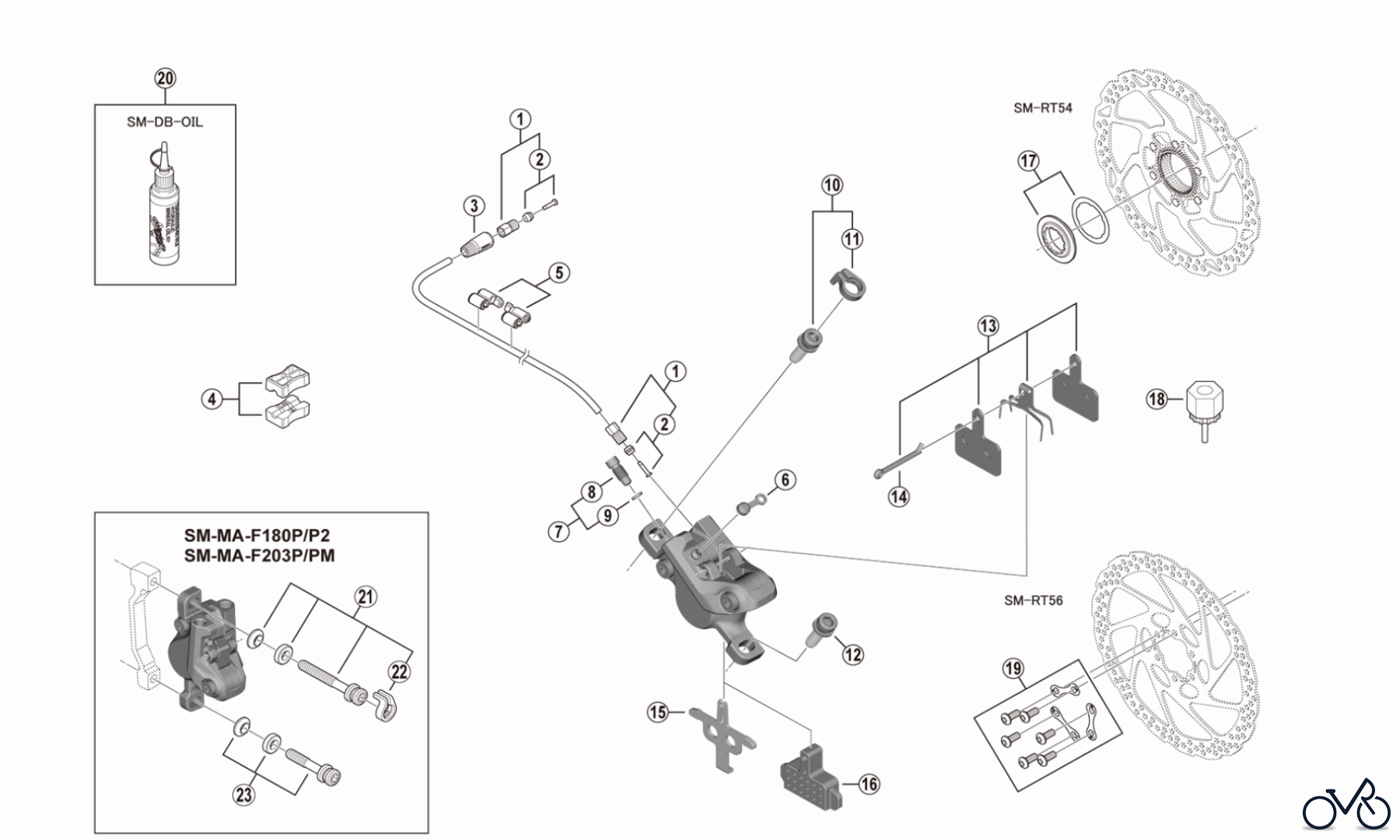

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-MT500 Scheibenbremse. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-8AL98020	Flare nut unit Y8AL98020
2	Y-8H298040	Olive and connecter insert Y8H298040
3	Y-8H203210	Cover Y8H203210
4	Y-8H198030	TL-BH61 Shimano original tool (2 pcs.) Y8H198030
5	Y-83098040	SM-HANG Hose supporter A and B Y83098040
6	Y-8B214000	Bleed nipple cap Y8B214000
7	Y-8LS98030	Bleed screw and O-ring Y8LS98030
8	Y-8VZ07000	Bleed screw Y8VZ07000
9	Y-8B511001	O-ring Y8B511001
10	Y-2F398020	Caliper fixing screw (M6 x 18.7) and snap ring Y2F398020
11	Y-2RT06000	Snap ring Y2RT06000
12	Y-8C509020	Caliper fixing screw (M6 x 18.7) Y8C509020
13	E-BPB03SRESINA	B03S Resin pad and spring with split pin 3 type EBPB03SRESINA
14	Y-8DB06100	Split pin Y8DB06100
15	Y-8PE03000	Pad spacer Y8PE03000
16	Y-8FZ05000	Bleeding spacer Y8FZ05000
17	Y-8KU98010	Lock ring (black) and washer Y8KU98010
18	Y-12009230	TL-LR15 Lock ring removal tool Y12009230
19	Y-8KT98010	Rotor fixing screw and lock washer Y8KT98010
20	Y-83998020	Mineral oil (100 ml) Y83998020
20	Y-83998030	Mineral oil (500 ml) Y83998030
21	Y-2RT98020	Caliper fixing screw unit (M6 x 37.9) for SM-MA-F180P/P2 Y2RT98020
21	Y-2RT98030	Caliper fixing screw unit (M6 x 40.2) for SM-MA-F203P/PM Y2RT98030
22	Y-2RT07000	Snap ring Y2RT07000
23	Y-8G498030	Caliper fixing screw unit (M6 x 32.1) for SM-MA-F180P/P2 Y8G498030
23	Y-8J498020	Caliper fixing screw unit (M6 x 34.4) for SM-MA-F203P/PM Y8J498020
