Shimano BR-M6000 DEORE Disc Brak

BR-M6000 DEORE Disc Brak BR Brake - Bremse

Shimano BR Brake - Bremse BR-M6000 DEORE Disc Brak

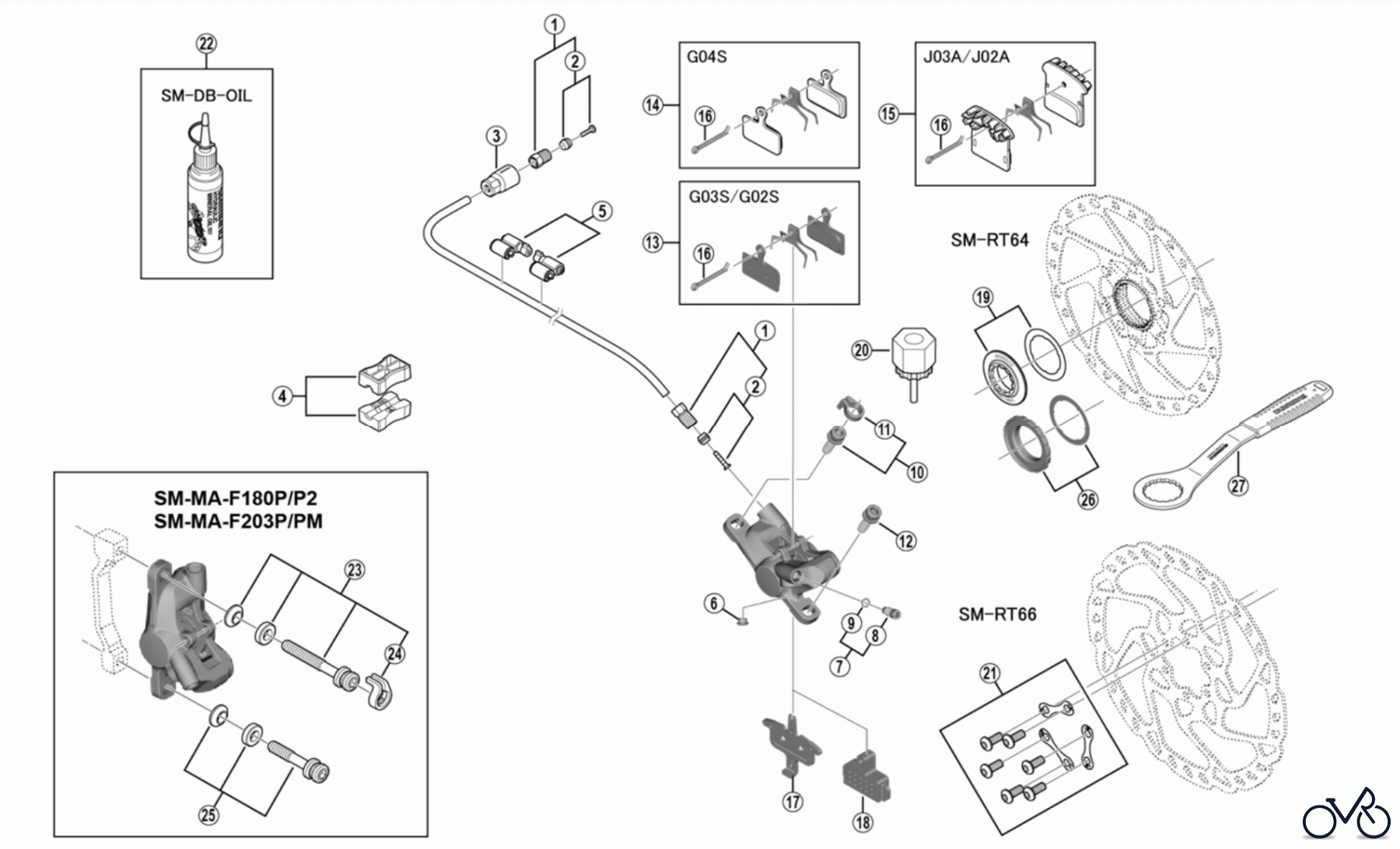

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M6000 DEORE Disc Brak. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-8KH98010 Flare Nut Unit for SM-BH90-SS Y8KH98010
1 Y-8H298030 Flare Nut Unit for SM-BH59-SS Y8H298030
2 Shimano Olive and Connecter Insert for SM-BH90-SS Y-8JA98020 Olive and Connecter Insert for SM-BH90-SS Y8JA98020
2 Y-8H298040 Olive and Connecter Insert for SM-BH59-SS Y8H298040
3 Y-8JA07010 Cover Y8JA07010
4 Shimano TL-BH61 Shimano original tool (2 pcs.) Y-8H198030 TL-BH61 Shimano original tool (2 pcs.) Y8H198030
5 Y-83098040 SM-HANG Hose Supporter A and B Y83098040
6 Shimano Bleed Boss Cap Y-88F06000 Bleed Boss Cap Y88F06000
7 Shimano Bleed Screw and O-Ring Y-8VZ98010 Bleed Screw and O-Ring Y8VZ98010
8 Shimano Bleed Screw Y-8VZ07000 Bleed Screw Y8VZ07000
9 Shimano O-Ring Y-8B511000 O-Ring Y8B511000
10 Shimano Caliper Fixing Screw (M6 x 18.7) and Snap Ring Y-2F398020 Caliper Fixing Screw (M6 x 18.7) and Snap Ring Y2F398020
11 Shimano Snap Ring Y-2RT06000 Snap Ring Y2RT06000
12 Y-8C509020 Caliper Fixing Screw (M6 x 18.7) Y8C509020
13 Shimano G03S Resin Pad and Spring with Split Pin Y-8WW98030 G03S Resin Pad and Spring with Split Pin Y8WW98030
13 Y-8WW98020 G02S Resin Pad and Spring with Split Pin Y8WW98020
14 Y-8MY98010 G04S Metal Pad and Spring with Split Pin Y8MY98010
15 Y-8Z298010 J03A Resin Pad with Fin and Spring with Split Pin Y8Z298010
15 Y-8LW98040 J02A Resin Pad with Fin and Spring with Split Pin Y8LW98040
16 Shimano Split Pin Y-8DB06100 Split Pin Y8DB06100
17 Y-84E03000 Pad Spacer Y84E03000
18 Shimano Bleeding Spacer Y-8J712100 Bleeding Spacer Y8J712100
19 Y-8KU98010 Lock Ring (Black) and Washer Y8KU98010
20 Shimano TL-LR15 Lock Ring Removal Tool Y-12009230 TL-LR15 Lock Ring Removal Tool Y12009230
21 Y-8KT98010 Rotor Fixing Screw and Lock Washer Y8KT98010
22 Y-83998020 Mineral Oil (100 ml) Y83998020
22 Y-83998030 Mineral Oil (500 ml) Y83998030
23 Shimano Caliper Fixing Screw Unit (M6 x 37.9) for SM-MA-F180P/P2 Y-2RT98020 Caliper Fixing Screw Unit (M6 x 37.9) for SM-MA-F180P/P2 Y2RT98020
23 Y-2RT98030 Caliper Fixing Screw Unit (M6 x 40.2) for SM-MA-F203P/PM Y2RT98030
24 Shimano Snap Ring Y-2RT07000 Snap Ring Y2RT07000
25 Shimano Caliper Fixing Screw Unit (M6 x 32.1) for SM-MA-F180P/P2 Y-8G498030 Caliper Fixing Screw Unit (M6 x 32.1) for SM-MA-F180P/P2 Y8G498030
25 Shimano Caliper Fixing Screw Unit (M6 x 34.4) for SM-MA-F203P/PM Y-8J498020 Caliper Fixing Screw Unit (M6 x 34.4) for SM-MA-F203P/PM Y8J498020
26 Shimano Lock Ring and Washer (External spline type) Y-24698030 Lock Ring and Washer (External spline type) Y24698030
27 Shimano TL-FC36 Lock Ring Removal ToolY-13098000 TL-FC36 Lock Ring Removal Tool Y13098000
