Shimano BR-M640-F (-3432) SHIMANO ZEE Front Disc Brake

BR-M640-F (-3432) SHIMANO ZEE Front Disc Brake BR Brake - Bremse

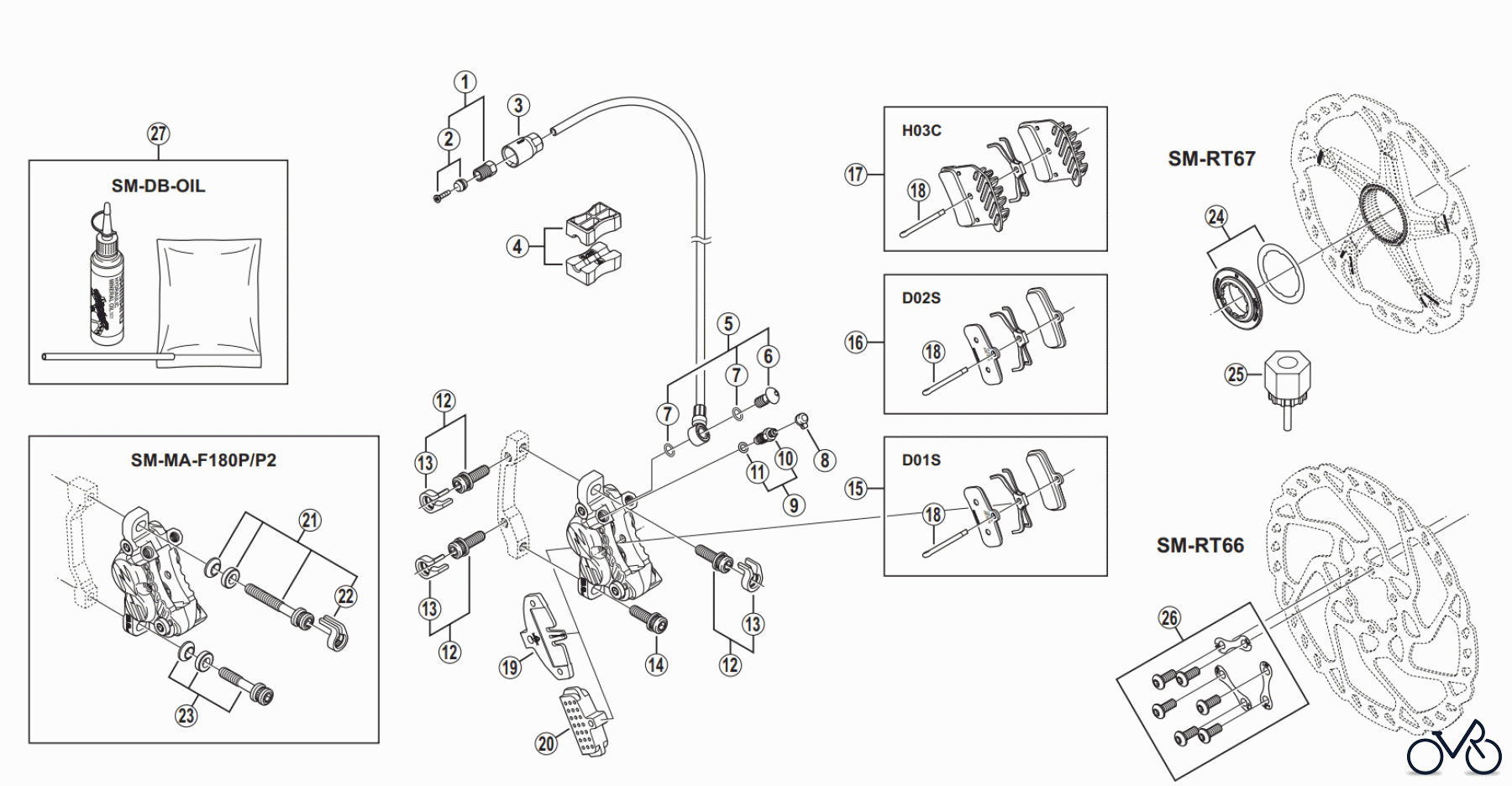

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M640-F (-3432) SHIMANO ZEE Front Disc Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-8JA98010	Connecting Bolt Unit A Y8JA98010
2	Y-8JA98020	Olive & Connecter Insert A Y8JA98020
3	Y-8JA07000	Cover A Y8JA07000
4	Y-8H198030	TL-BH61 Special Tool (2 pcs.) A Y8H198030
5	Y-8H098010	Banjo Bolt & O-Ring A Y8H098010
6	Y-8H001500	Banjo Bolt A Y8H001500
7	Y-8SY28000	O-Ring A Y8SY28000
8	Y-8B214000	Bleed Nipple Cap A Y8B214000
9	Y-8CL98050	Bleed Nipple & Seal Ring A Y8CL98050
10	Y-8CL24000	Bleed Nipple A Y8CL24000
11	Y-8B511001	O-Ring for Bleed Nipple A Y8B511001
12	Y-8DS98010	Adapter Fixing Bolt (M6 x 18.7) & Stop Ring A Y8DS98010
13	Y-8C511000	Snap Ring A Y8C511000
14	Y-8C509020	Adapter Fixing Bolt (M6 x 18.7) for Stop Ring Type A Y8C509020
15	Y-8FF98020	Resin Pad (D01S) & Spring w/Split Pin A Y8FF98020
16	Y-8FF98010	Metal Pad (D02S) & Spring w/Split Pin B Y8FF98010
17	Y-8VT98020	Metal Pad (H03C) w/Fin & Spring w/Split Pin B Y8VT98020
18	Y-8DB06100	Split Pin A Y8DB06100
19	Y-8FF18000	Pad Spacer Y8FF18000
20	Y-8FF19000	Bleeding Spacer A Y8FF19000
21	Y-8G498020	Caliper Fixing Bolt Unit (M6 x 37.9) A Y8G498020
22	Y-81703000	Snap Ring A Y81703000
23	Y-8G498030	Caliper Fixing Bolt Unit (M6 x 32.1) A Y8G498030
24	Y-8K998010	Lock Ring & Washer (Standard) B Y8K998010
24	Y-8K198010	Lock Ring & Washer (Option) A Y8K198010
25	Y-12009230	TL-LR15 Lock Ring Removal Tool A Y12009230
26	Y-8KT98010	Rotor Fixing Bolt & Lock Washer B Y8KT98010
27	Y-83998010	Mineral Oil Bleed Kit (50 ml) Y83998010
