Shimano BR-M9100 XTR Disc Brake

BR-M9100 XTR Disc Brake BR Brake - Bremse

SM-BH90-SS, RT-MT900
Shimano BR Brake - Bremse BR-M9100 XTR Disc Brake

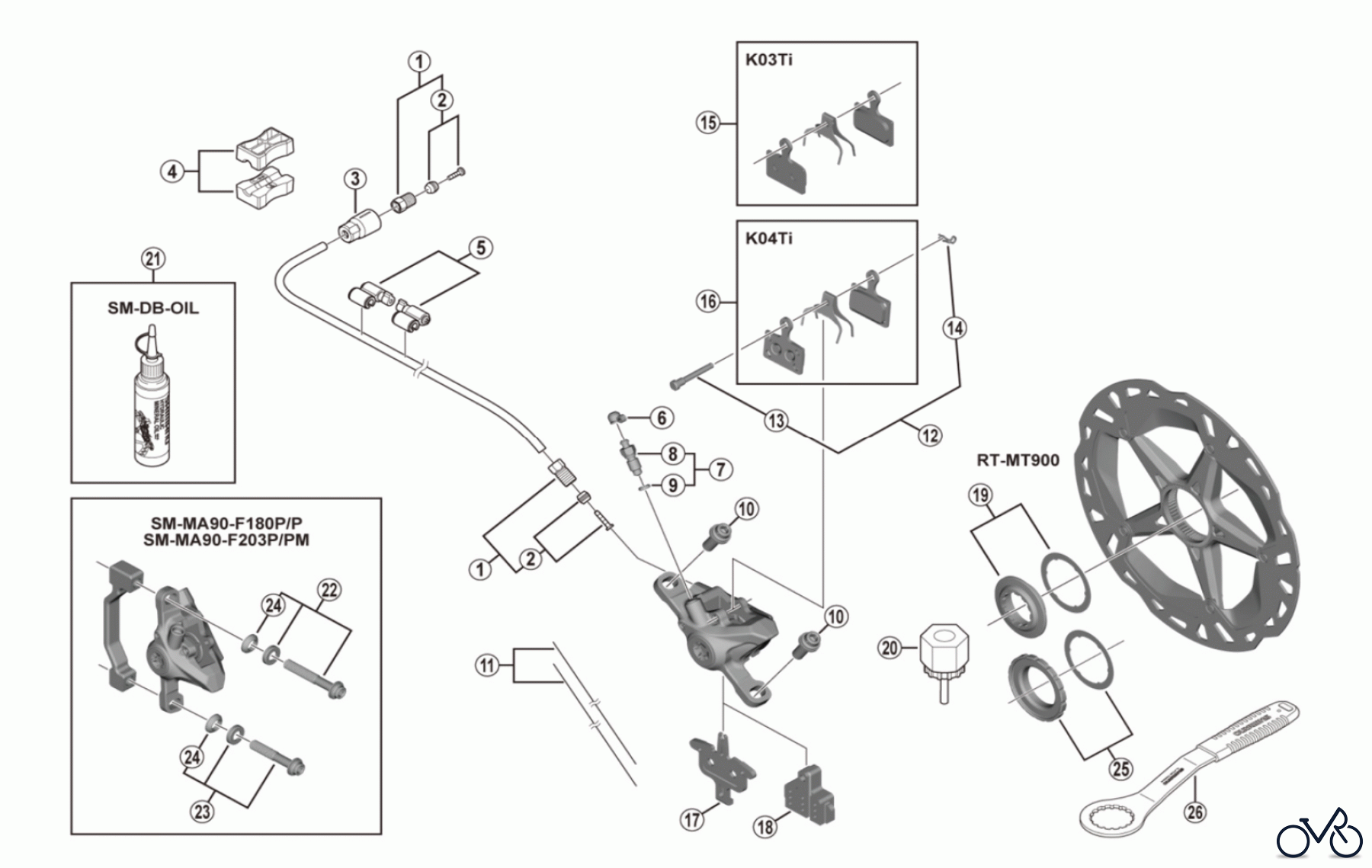

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M9100 XTR Disc Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-8KH98010 Connecting Bolt Unit Y8KH98010
2 Shimano Olive & Connecter Insert Y-8JA98020 Olive & Connecter Insert Y8JA98020
3 Y-1XJ16000 Cover Y1XJ16000
4 Shimano TL-BH61 Special Tool (2 pcs.) Y-8H198030 TL-BH61 Special Tool (2 pcs.) Y8H198030
5 Y-83098040 SM-HANG Hose Supporter A & B Y83098040
6 Shimano Bleed Nipple Cap Y-8B214000 Bleed Nipple Cap Y8B214000
7 Shimano Bleed Nipple & Seal Ring Y-8CL98050 Bleed Nipple & Seal Ring Y8CL98050
8 Shimano Bleed Nipple Y-8CL24200 Bleed Nipple Y8CL24200
9 Shimano O-Ring for Bleed Nipple Y-8B511001 O-Ring for Bleed Nipple Y8B511001
10 Y-8LF08000 Caliper Fixing Bolt (M6 x 14.6) Y8LF08000
11 Shimano Wire (2 pcs.) Y-8B298010 Wire (2 pcs.) Y8B298010
12 Y-8J798060 Pad Axle & Snap Retainer Y8J798060
13 Y-8J710000 Pad Axle Y8J710000
14 Shimano Snap Retainer Y-8J716000 Snap Retainer Y8J716000
15 Y-1XC98010 Resin Pad (K03Ti) & Spring Y1XC98010
16 Y-8PU98020 Metal Pad (K04Ti) & Spring Y8PU98020
17 Shimano Pad Spacer Y-8N218000 Pad Spacer Y8N218000
18 Shimano Bleeding Spacer Y-8N219000 Bleeding Spacer Y8N219000
19 Shimano Lock Ring & Washer Y-8K198010 Lock Ring & Washer Y8K198010
20 Shimano TL-LR15 Lock Ring Removal Tool Y-12009230 TL-LR15 Lock Ring Removal Tool Y12009230
21 Y-83998010 Mineral Oil (50 ml) Y83998010
21 Y-83998020 Mineral Oil (100 ml) Y83998020
21 Y-83998030 Mineral Oil (500 ml) Y83998030
22 Shimano Caliper Fixing Bolt Unit (M6 x 36.3) for SM-MA90-F180P/P Y-8LF98040 Caliper Fixing Bolt Unit (M6 x 36.3) for SM-MA90-F180P/P Y8LF98040
22 Shimano Caliper Fixing Bolt Unit (M6 x 38.6) for SM-MA90-F203P/PM Y-8JB98010 Caliper Fixing Bolt Unit (M6 x 38.6) for SM-MA90-F203P/PM Y8JB98010
23 Shimano Caliper Fixing Bolt Unit (M6 x 30.5) for SM-MA90-F180P/P Y-8LF98050 Caliper Fixing Bolt Unit (M6 x 30.5) for SM-MA90-F180P/P Y8LF98050
23 Y-8JB98020 Caliper Fixing Bolt Unit (M6 x 32.8) for SM-MA90-F203P/PM Y8JB98020
24 Y-8LF12000 R-Washer A Y8LF12000
25 Shimano Lock Ring & Washer (Externally serrated type) Y-26L98030 Lock Ring & Washer (Externally serrated type) Y26L98030
26 Shimano TL-FC36 Lock Ring Removal ToolY-13098000 TL-FC36 Lock Ring Removal Tool Y13098000
