Shimano BR-MX70 DXR V-BRAKE Brake

BR-MX70 DXR V-BRAKE Brake BR Brake - Bremse

Shimano BR Brake - Bremse BR-MX70 DXR V-BRAKE Brake

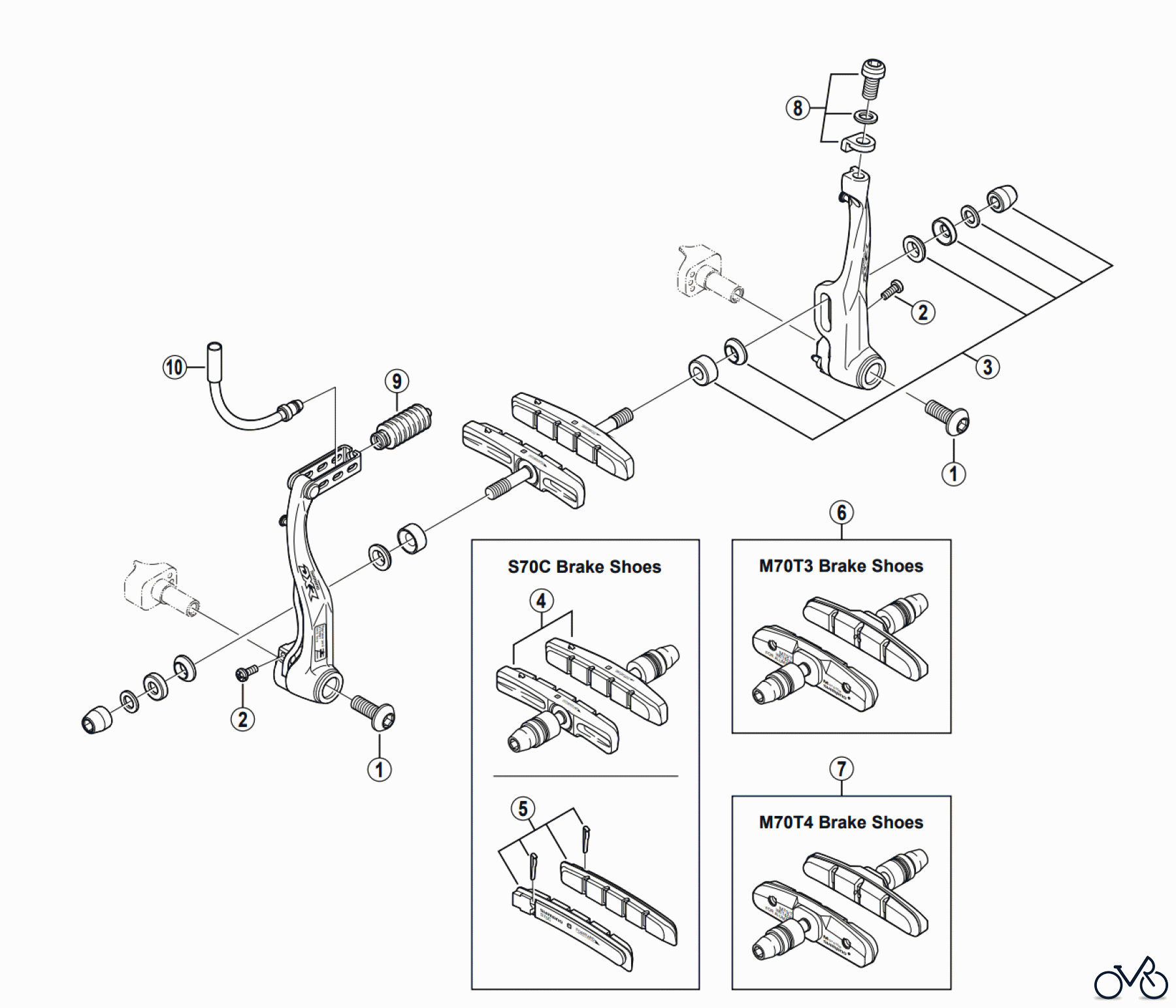

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-MX70 DXR V-BRAKE Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-8DA04000Link Fixing Bolt (M6 x 16) Y8DA04000
2 Shimano Spring Tension Adjustment Screw (M3 x 8)Y-8GV05000Spring Tension Adjustment Screw (M3 x 8) Y8GV05000
3 Y-8DA98020Shoe Fixing Nut Unit Y8DA98020
4 Y-8DA9801AS70C Cartridge-Type Brake Shoe Set (Pair Y8DA9801A
5 Y-8AA98130S70C Cartridge-Type Brake Shoes & Fixing Pins (Pair) Y8AA98130
6 Y-8BM9810AM70T3 Brake Shoe Set (Pair) Y8BM9810A
7 Y-8BM9803AM70T4 Brake Shoe Set (Pair Y8BM9803A
8 Y-8BV98020Cable Fixing Bolt Unit (M6 x 11.5) Y8BV98020
9 Y-8BP14000Boot Y8BP14000
10 Y-8AA98070Inner Cable Lead Unit (90 : Middle) Y8AA98070
10 Y-8AA98080Inner Cable Lead Unit (135 : Long) Y8AA98080
10 Y-8AA98120Inner Cable Lead Unit (45 : Short) Y8AA98120
