Shimano FC-M627, FC-M627B Crankset

FC-M627, FC-M627B Crankset FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-M627, FC-M627B Crankset

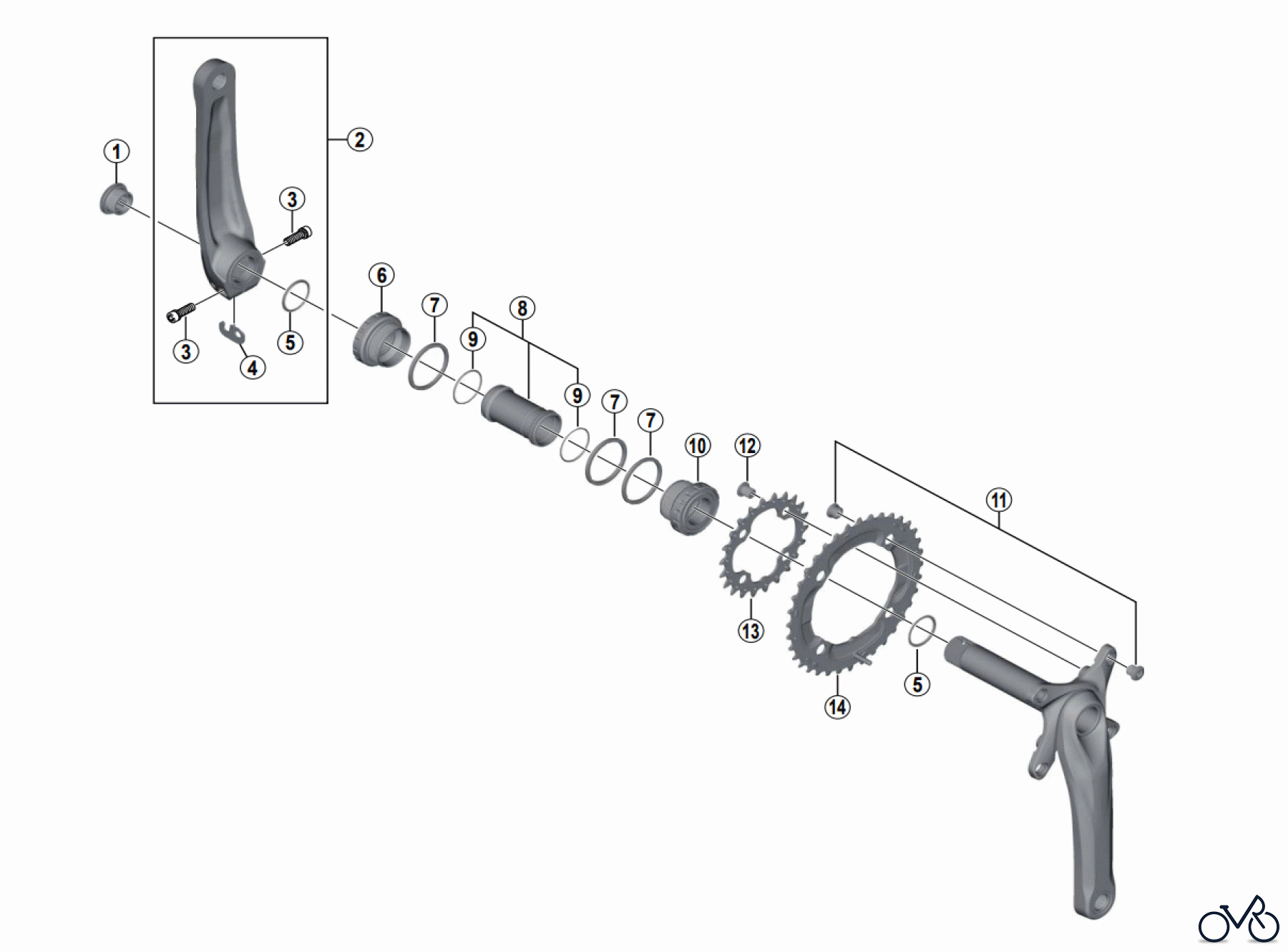

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-M627, FC-M627B Crankset. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Shimano Crank Arm Fixing Bolt Y-1F811100 Crank Arm Fixing Bolt Y1F811100
2 Y-1PD98010 Left Hand Crank Arm Unit 170 mm (Black) Y1PD98010
2 Y-1PD98020 Left Hand Crank Arm Unit 175 mm (Black) Y1PD98020
3 Shimano Clamp Bolt (M6 x 19) Y-1GS00030 Clamp Bolt (M6 x 19) Y1GS00030
4 Shimano Plate Y-1FU98120 Plate Y1FU98120
5 Shimano Ring Y-1F316000 Ring Y1F316000
6 Shimano Left Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BB52) Y-1RP98050 Left Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BB52) Y1RP98050
7 Shimano Spacer (2.5 mm) Y-1F813000 Spacer (2.5 mm) Y1F813000
8 Shimano Inner Cover & O-Ring Y-1J898060 Inner Cover & O-Ring Y1J898060
9 Shimano O-Ring Y-1TF21000 O-Ring Y1TF21000
10 Y-1RP98060 Right Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BB52) Y1RP98060
11 Y-1PD98030 Outer Gear Fixing Bolt (M8 x 7) & Nut (4 sets) Y1PD98030
12 Y-1PD98040 Inner Gear Fixing Bolt (M8 x 8.5 / 4 pcs.) Y1PD98040
13 Y-1KF22000 Chainring 22T-AA/AC/AY Y1KF22000
13 Y-1NA24000 Chainring 24T-AM/AZ Y1NA24000
14 Y-1RP98070 Chainring 36T-AY Y1RP98070
14 Y-1RP98080 Chainring 38T-AZ Y1RP98080
