Shimano FC-MT500 Crankset

FC-MT500 Crankset FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

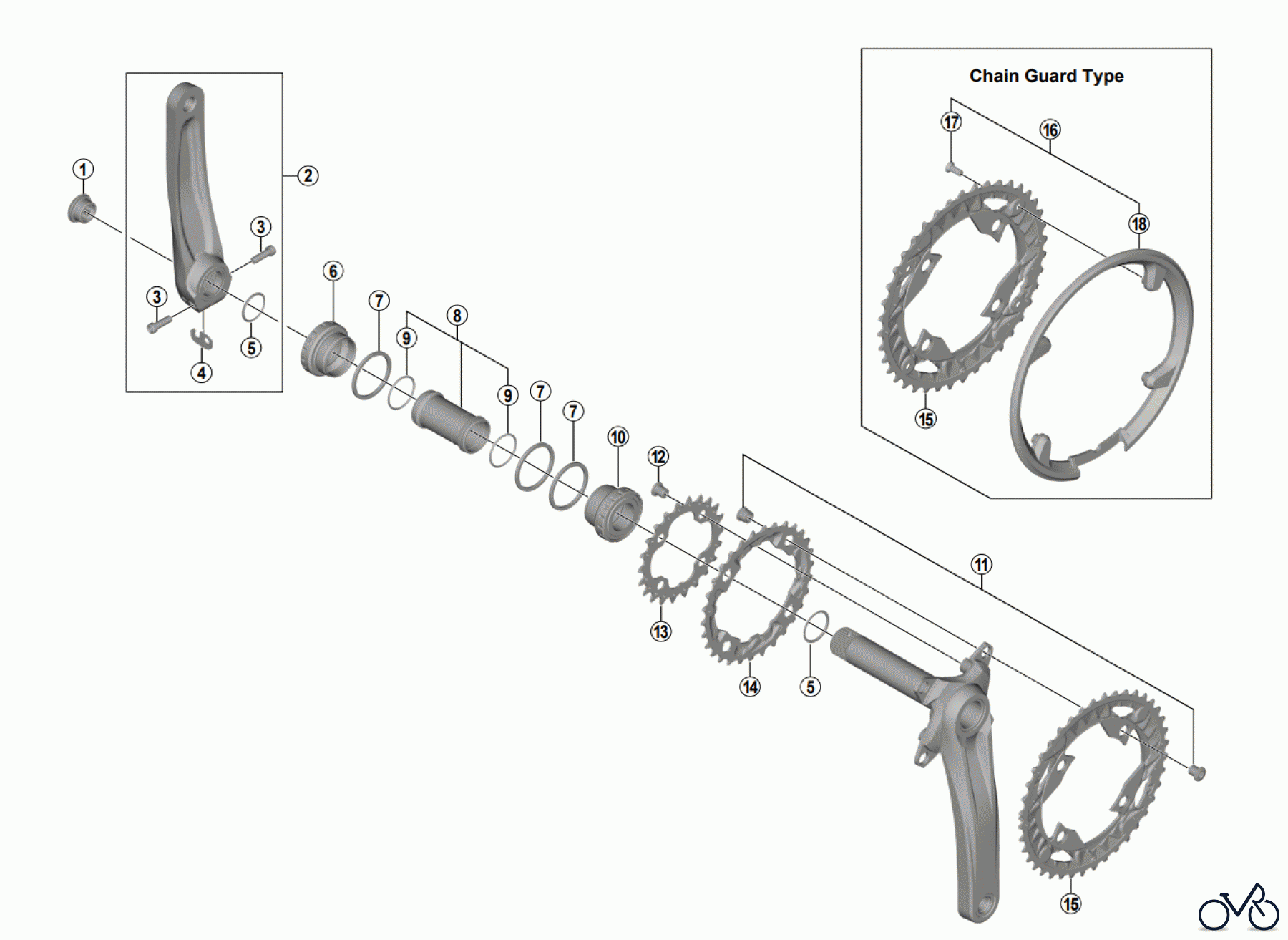

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-MT500 Crankset. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1F811100	Crank Arm Fixing Bolt A A Y1F811100
2	Y-1VB98030	Left Hand Crank Arm Unit 170 mm Y1VB98030
2	Y-1VB98040	Left Hand Crank Arm Unit 175 mm Y1VB98040
3	Y-1GS00030	Clamp Bolt (M6 x 19) A Y1GS00030
4	Y-1FU98120	Plate Y1FU98120
5	Y-1F316000	Ring A Y1F316000
6	Y-1RP98050	Left Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BB52) Y1RP98050
7	Y-1F813000	Spacer (2.5 mm) A Y1F813000
8	Y-1J898060	Inner Cover & O-Ring A Y1J898060
9	Y-1TF21000	O-Ring A Y1TF21000
10	Y-1RP98060	Right Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BB52) Y1RP98060
11	Y-10X98020	Double Gear Fixing Bolt (M8 x 8.5) & Nut (1 Unit = 4 sets) A Y10X98020
12	Y-1LV98060	Gear Fixing Bolt (M8 x 8.5 / 1 Unit = 4 pcs.) A A Y1LV98060
13	Y-1NW22000	Chainring 22T-AN A A Y1NW22000
14	Y-1VB98010	Chainring 30T-AN B B Y1VB98010
15	Y-1VB98020	Chainring 40T-AN B B Y1VB98020
15	Y-1PY98030	Chainring 40T-AN for Chain Guard A Y1PY98030
16	Y-1PY98080	Chain Guard (1 pc.) & Fixing Screws (1 Unit = 4 pcs.) Y1PY98080
17	Y-1D298010	Chain Guard Fixing Screw (1 Unit = 4 pcs.) Y1D298010
18	Y-1PK16000	Chain Guard Y1PK16000
