Shimano FC-MT500-2 , FC-MT500-B2 Crankset

FC-MT500-2 , FC-MT500-B2 Crankset FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

SM-BB52
Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-MT500-2 , FC-MT500-B2 Crankset

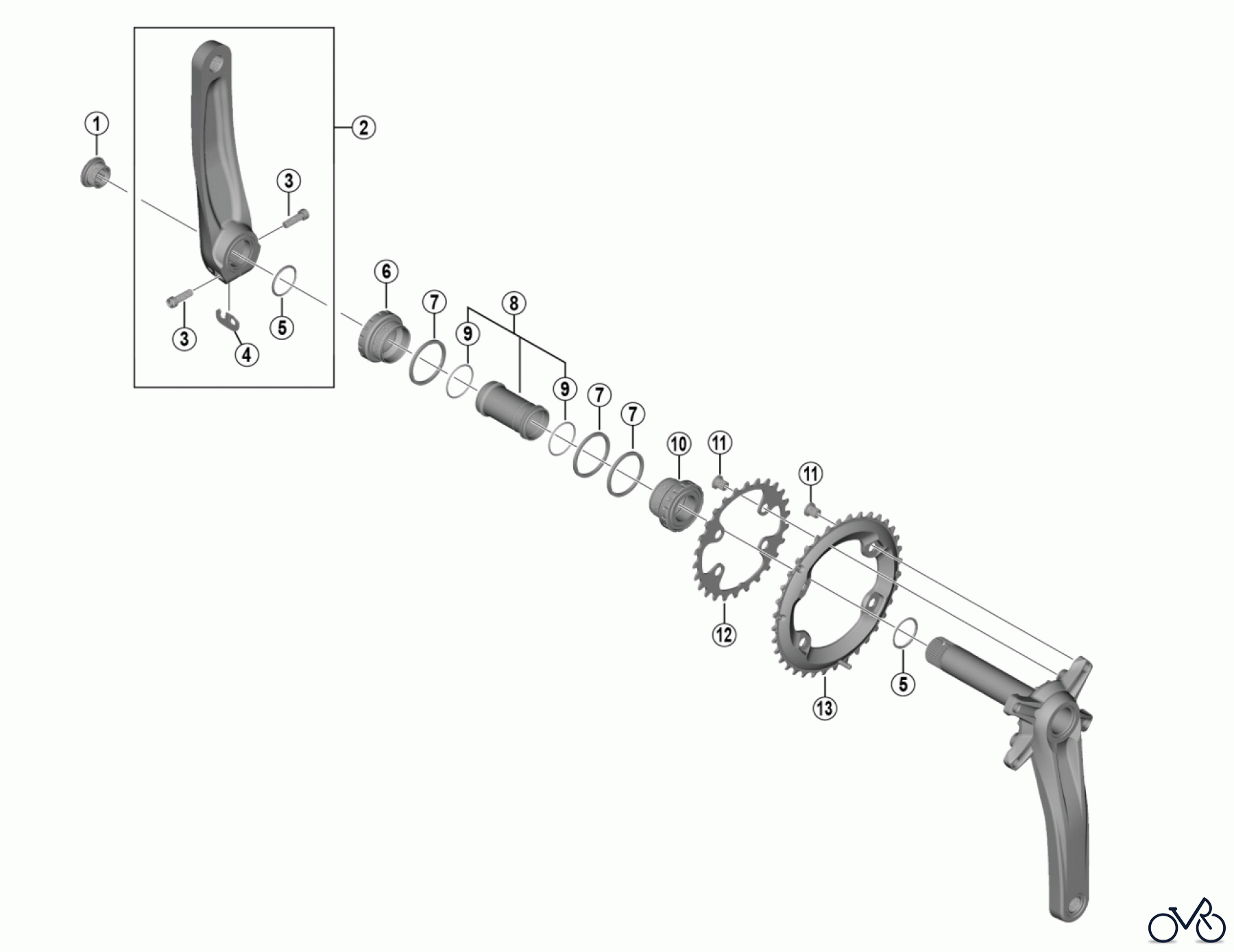

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-MT500-2 , FC-MT500-B2 Crankset. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Shimano Crank Arm Fixing Bolt Y-1F811100 Crank Arm Fixing Bolt Y1F811100
2 Y-1VB98030 Left Hand Crank Arm Unit 170 mm Y1VB98030
2 Y-1VB98040 Left Hand Crank Arm Unit 175 mm Y1VB98040
3 Shimano Clamp Bolt (M6 x 19) Y-1GS00030 Clamp Bolt (M6 x 19) Y1GS00030
4 Shimano Plate Y-1FU98120 Plate Y1FU98120
5 Shimano Ring Y-1F316000 Ring Y1F316000
6 Shimano Left Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BB52) Y-1RP98050 Left Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BB52) Y1RP98050
7 Shimano Spacer (2.5 mm) Y-1F813000 Spacer (2.5 mm) Y1F813000
8 Shimano Inner Cover & O-Ring Y-1J898060 Inner Cover & O-Ring Y1J898060
9 Shimano O-Ring Y-1TF21000 O-Ring Y1TF21000
10 Y-1RP98060 Right Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BB52) Y1RP98060
11 Shimano Gear Fixing Bolt (M8 x 8.5 / 4 pcs.) Y-1LV98060 Gear Fixing Bolt (M8 x 8.5 / 4 pcs.) Y1LV98060
12 Shimano Chainring 24T-BE for 34-24T A Y-1WD24000 Chainring 24T-BE for 34-24T A Y1WD24000
12 Y-1WD26000 Chainring 26T-BF for 36-26T A Y1WD26000
13 Shimano Chainring 34T-BE for 34-24T A Y-1WD98040 Chainring 34T-BE for 34-24T A Y1WD98040
13 Y-1WB98010 Chainring 36T-BF for 36-26T Y1WB98010
