Shimano FC-M645 SHIMANO ZEE Front Chainwheel

FC-M645 SHIMANO ZEE Front Chainwheel FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-M645 SHIMANO ZEE Front Chainwheel

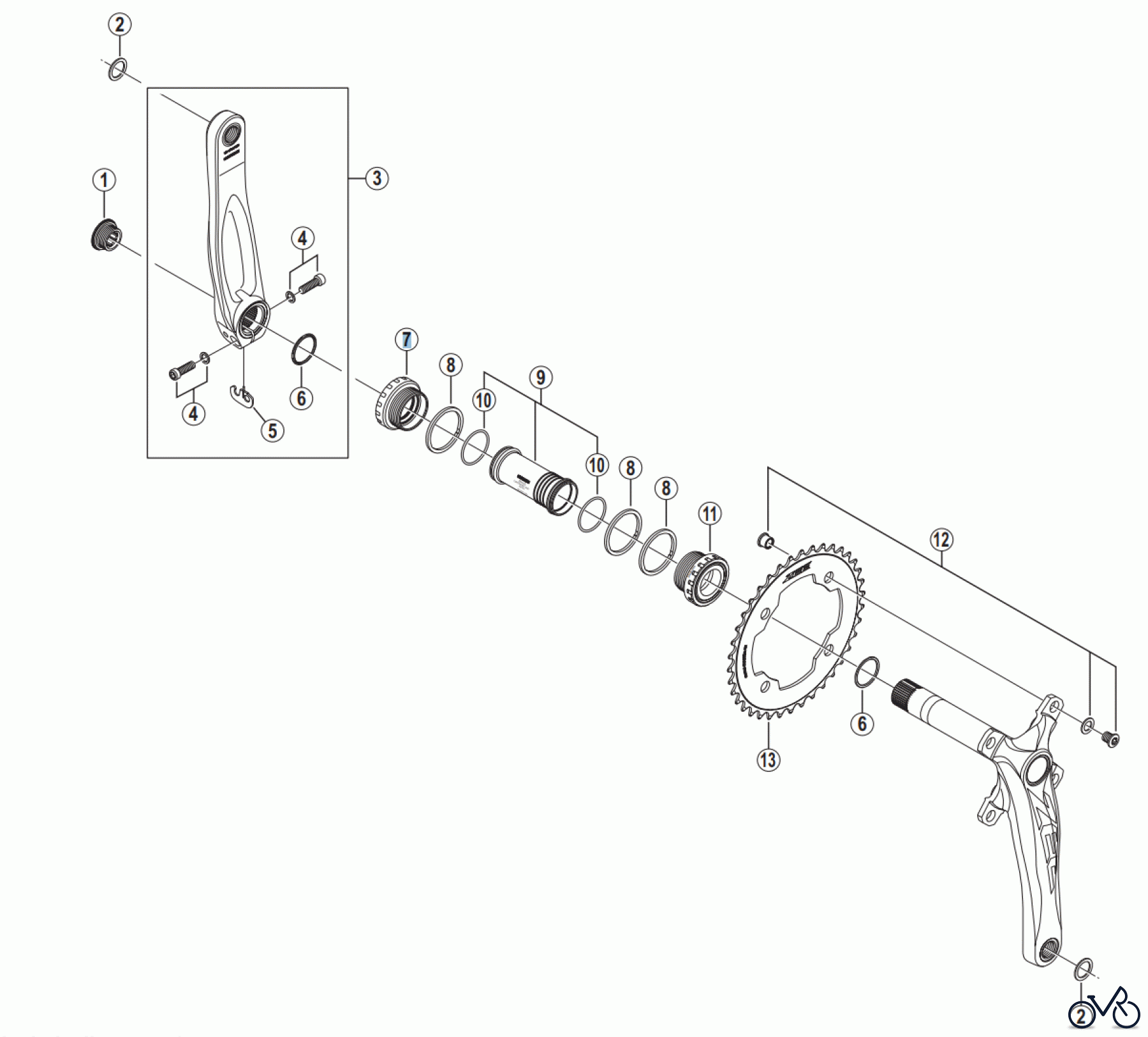

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-M645 SHIMANO ZEE Front Chainwheel. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1F811100	Crank Arm Fixing Bolt Y1F811100
2	Y-1NG98010	Pedal Washer (2 pcs.) Y1NG98010
3	Y-1NG98020	Left Hand Crank Arm 165 mm Y1NG98020
3	Y-1NG98030	Left Hand Crank Arm 170 mm Y1NG98030
3	Y-1NG98040	Left Hand Crank Arm 175 mm Y1NG98040
4	Y-1KS98030	Clamp Bolt (M6 x 19) & Washer Y1KS98030
5	Y-1FU98120	Plate Y1FU98120
6	Y-1F316000	Ring Y1F316000
7	Y-1LD98060	Left Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BB51) Y1LD98060
8	Y-1F813000	Spacer (2.5 mm) Y1F813000
9	Y-1NH98010	Inner Cover & O-Ring Y1NH98010
10	Y-1TF21000	O-Ring Y1TF21000
11	Y-1LD98070	Right Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BB51) Y1LD98070
12	Y-1NG98050	Gear Fixing Bolt Unit (M8 x 8.5 / 4 sets) Y1NG98050
13	Y-1NG34000	Chainring 34T (Black) Y1NG34000
13	Y-1NG36000	Chainring 36T (Black) Y1NG36000
13	Y-1NG38000	Chainring 38T (Black) Y1NG38000
