Shimano FC-M825 SAINT Front Chainwheel

FC-M825 SAINT Front Chainwheel FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

SM-CR82
Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-M825 SAINT Front Chainwheel

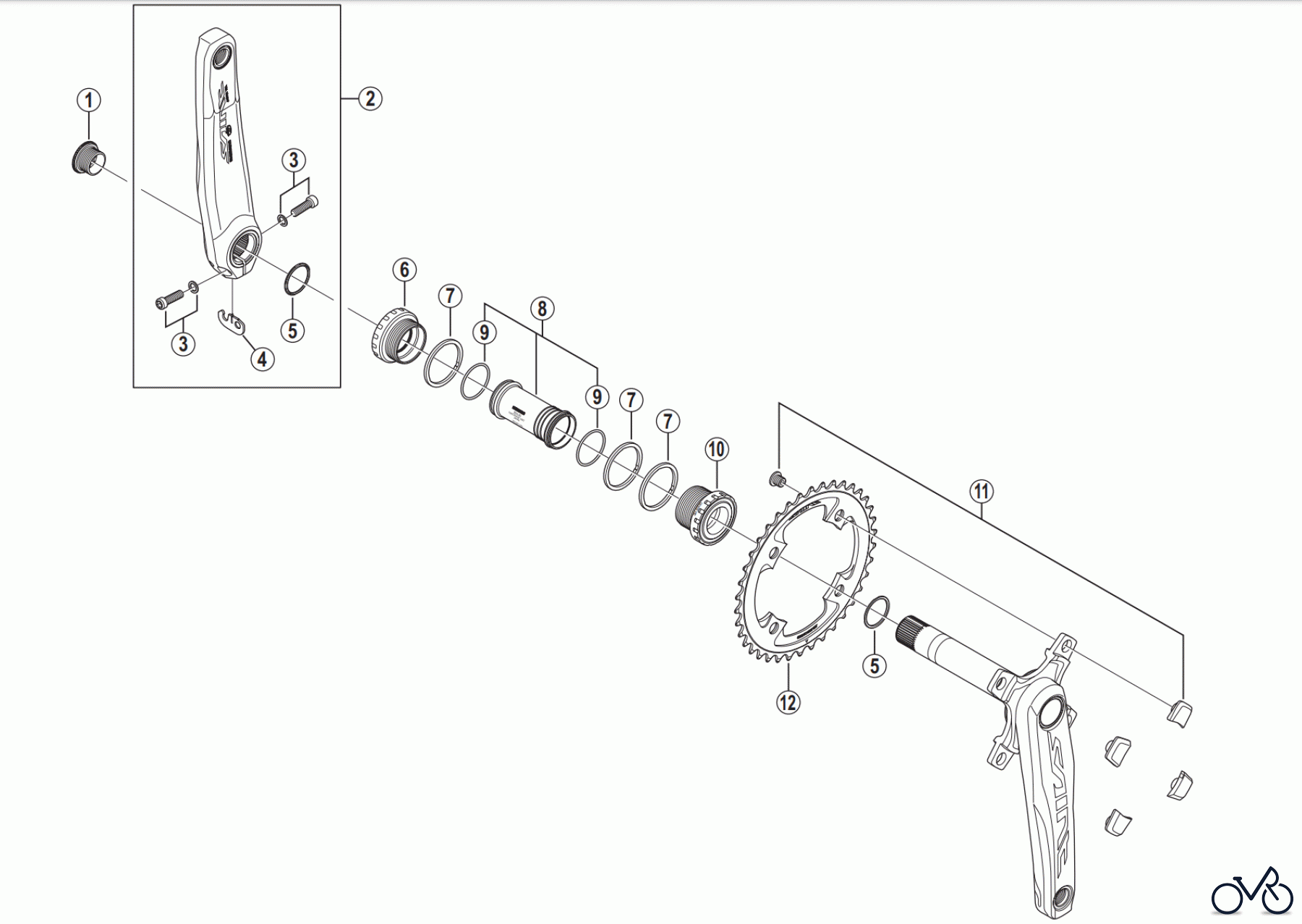

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-M825 SAINT Front Chainwheel. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Shimano Kurbelbefestigungsschraube Y-1KK13000 Kurbelbefestigungsschraube Y1KK13000
2 Y-1N598010 Kurbelarm links165 mm Y1N598010
2 Y-1N598020 Kurbelarm links 170 mm Y1N598020
2 Y-1N598030 LKurbelarm links 175 mm Y1N598030
3 Y-1HS98060Clamp Bolt (M6 x 19) & Washer Y1HS98060
4 Y-1KK98040 Einsatz Y1KK98040
5 Shimano O-Ring Y-1F316000 O-Ring Y1F316000
6 Y-1KK98060 Lagerschale Links (B.C.1.37" x 24T) English Thread (SM-BB80) BSA Y1KK98060
7 Shimano Distanzring (2.5 mm) Y-1F813000 Distanzring (2.5 mm) Y1F813000
8 Shimano Innenlagerhülse inkl. O-Ring Y-1KM98020 Innenlagerhülse inkl. O-Ring Y1KM98020
9 Shimano O-Ring Y-1TF21000 O-Ring Y1TF21000
10 Y-1KK98080 Lagerschale Rechts (B.C.1.37" x 24T) English Thread (SM-BB80) BSA Y1KK98080
11 Shimano Kettenblattschrauben M8x7mm 4x Schraube & Mutter Y-1N598040 Kettenblattschrauben M8x7mm 4x Schraube & Mutter Y1N598040
12 Shimano Kettenblatt 34 Zähne (Black)I-SMCR82A4Kettenblatt 34 Zähne (Black) ISMCR82A4
12 I-SMCR82A6Kettenblatt 36 Zähne(Black) ISMCR82A6
12 I-SMCR82A8Kettenblatt 38 Zähne(Black) ISMCR82A8
